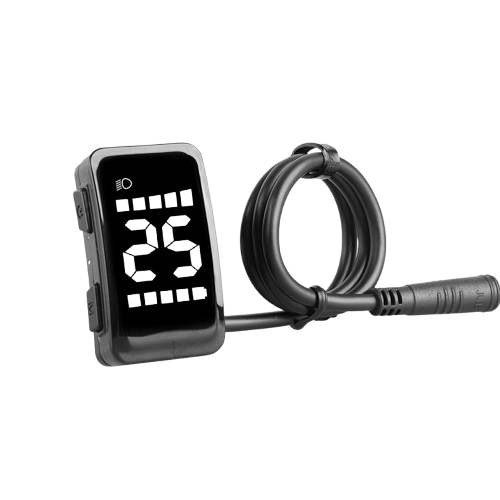

Varstrom DZ40 E-Bike Display - LCD Screen for UART Bafang eBike Kits

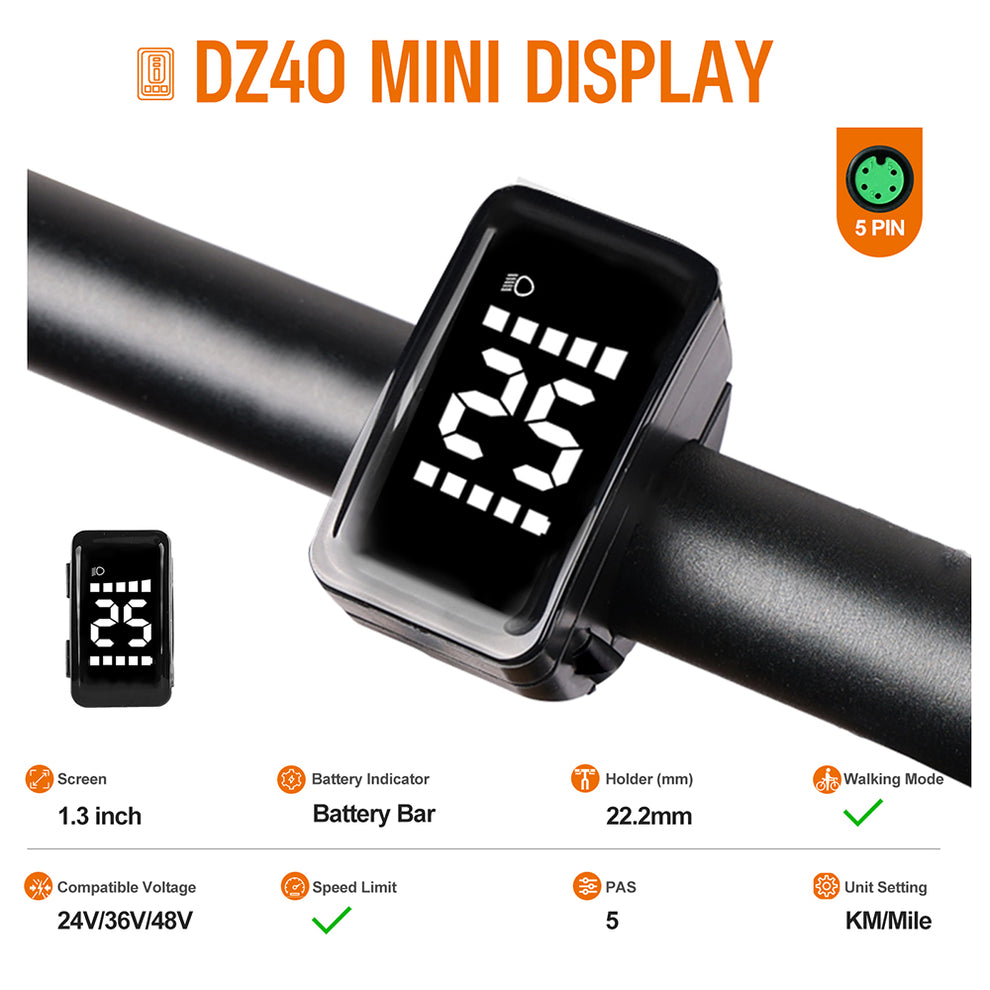

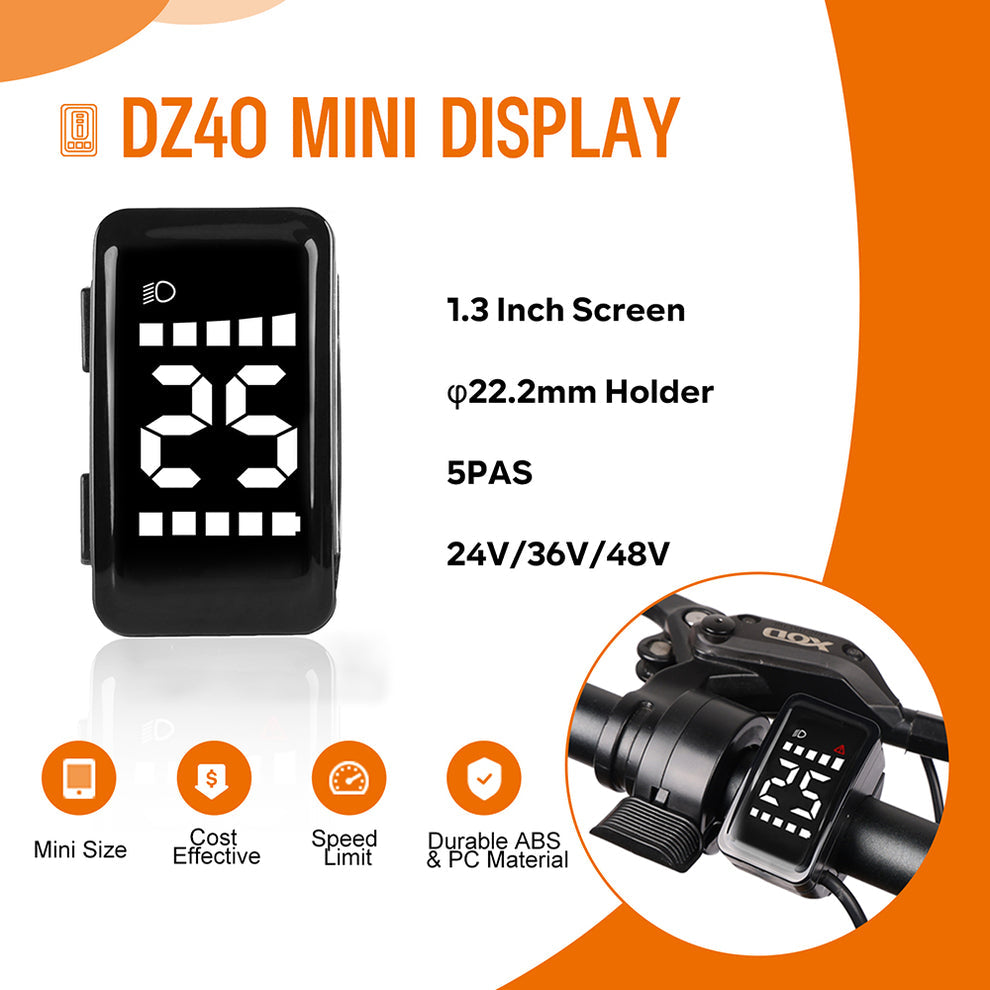

DZ40 Mini Display

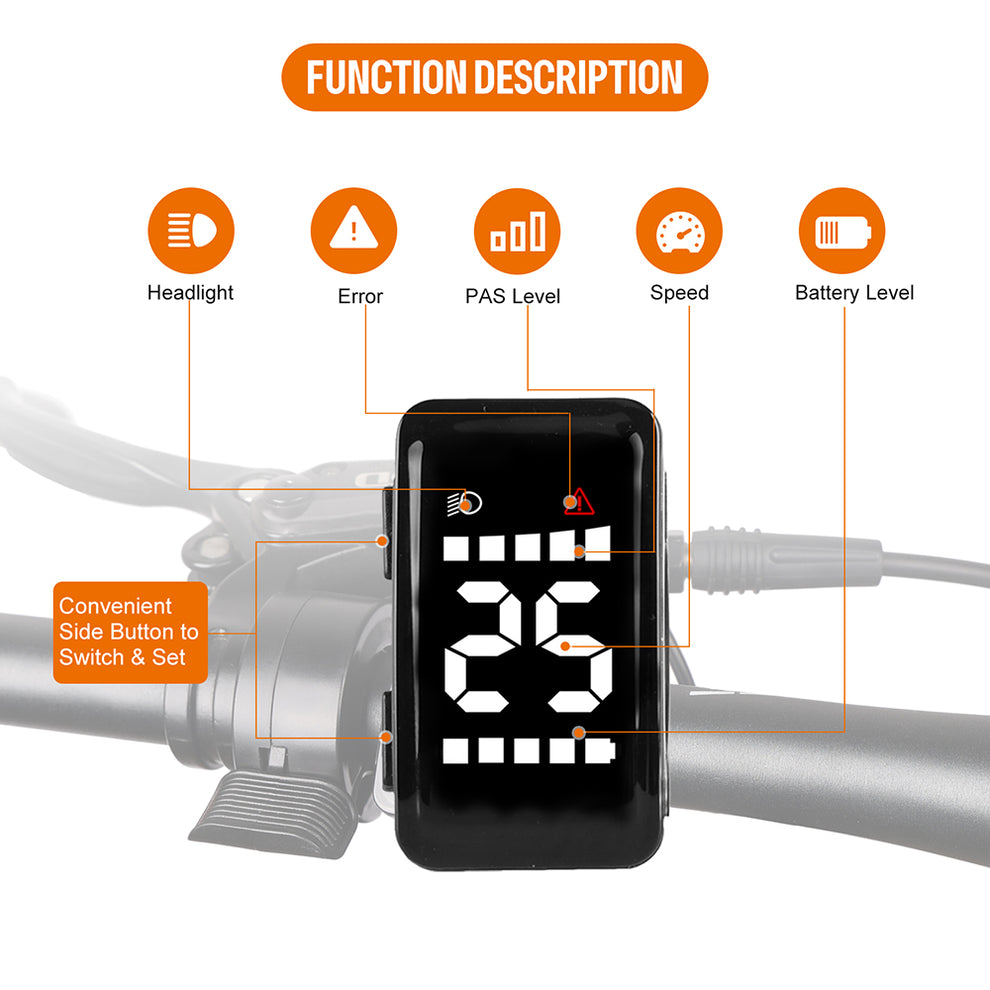

Varstrom DZ40 is a mini display, all-in-one compact setup helps users get rid of tangled wires. All useful functions for the eBike system and tour, for example, Headlight Indicator, Speed Display (Mile/KM), Smart Battery Indicator, 5-level Assist, Error Indicator.

Varstrom offers two brands of display, Bafang displays and our own brand Varstrom displays. We highly recommend our customers to consider our meters because our meters have the same performance as Bafang's but the price is much cheaper, it helps you complete the ebike conversion with lower budget.

Specification

• Model: Varstrom DZ40
• Screen: LCD

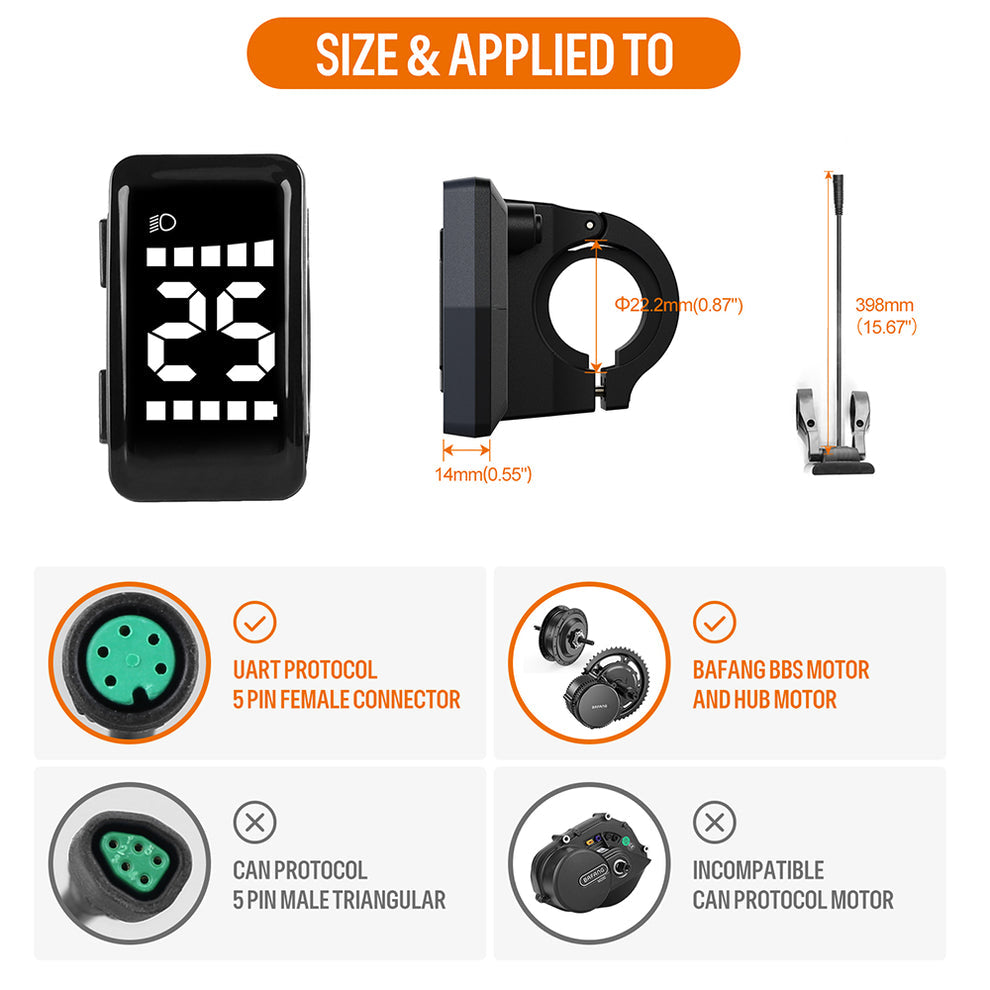

• Application: BBS01B/BBS02B/BBSHD/HUB
• Size: 1.3 inch
• Operating Temperature: -20 to 60°C
• Material: ABS
• IP Rate: IP65

Setting Mode

• *Protocol: UART
• Speed (Mile/Kilometer): Real-time
• Battery Indicator: 5 Levels
• Headlight: On/Off
• Assist Level: 0-5
• Speed Limit(Mile/Kilometer): 10 to 60/99 m/h

User Manual

• Varstrom DZ40 Display User Manual (EN)
