L20 3.0 Pro Electric Bike | 250W Mid-Drive | 100Nm Torque | Full Suspension

Hello, Welcome to Electro City Bikes

Product Information.

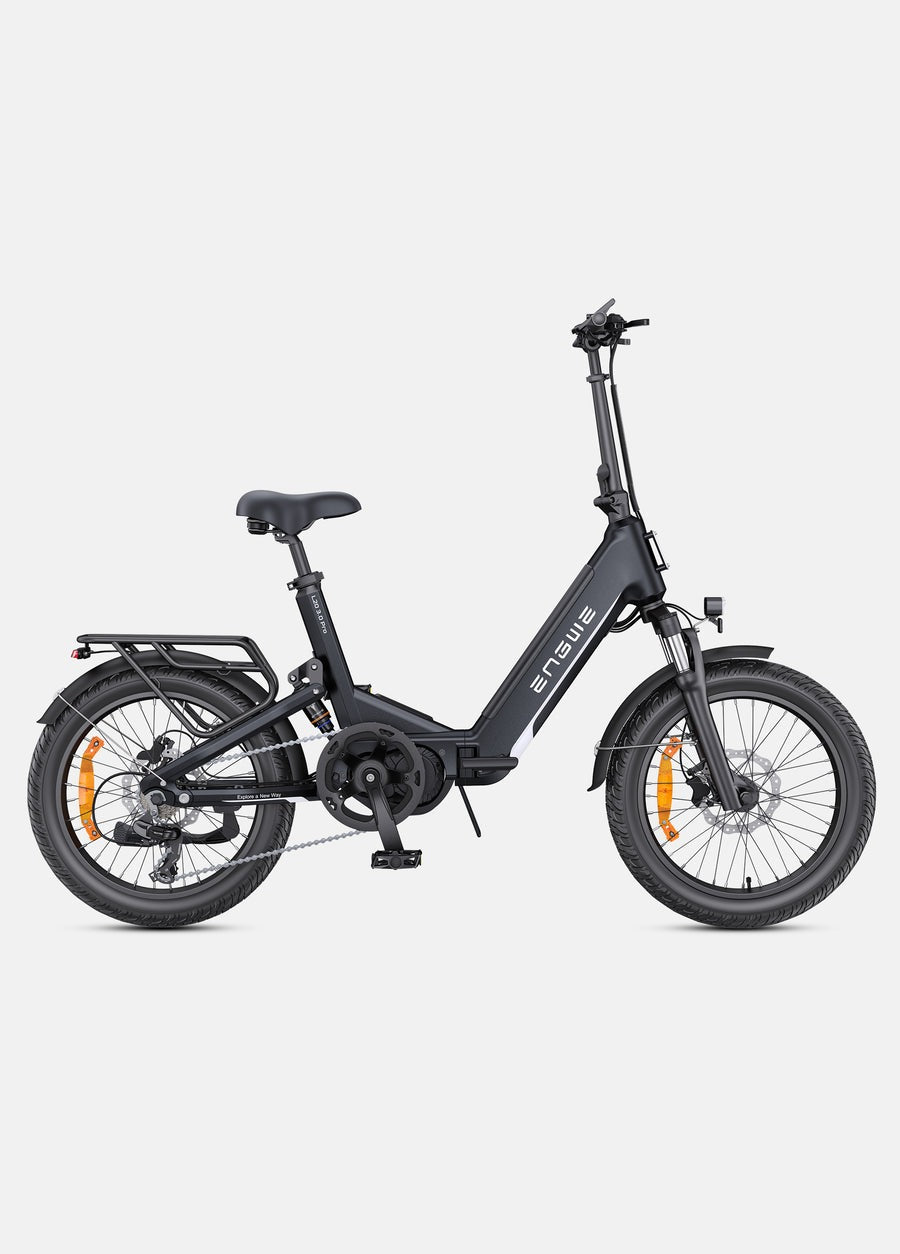

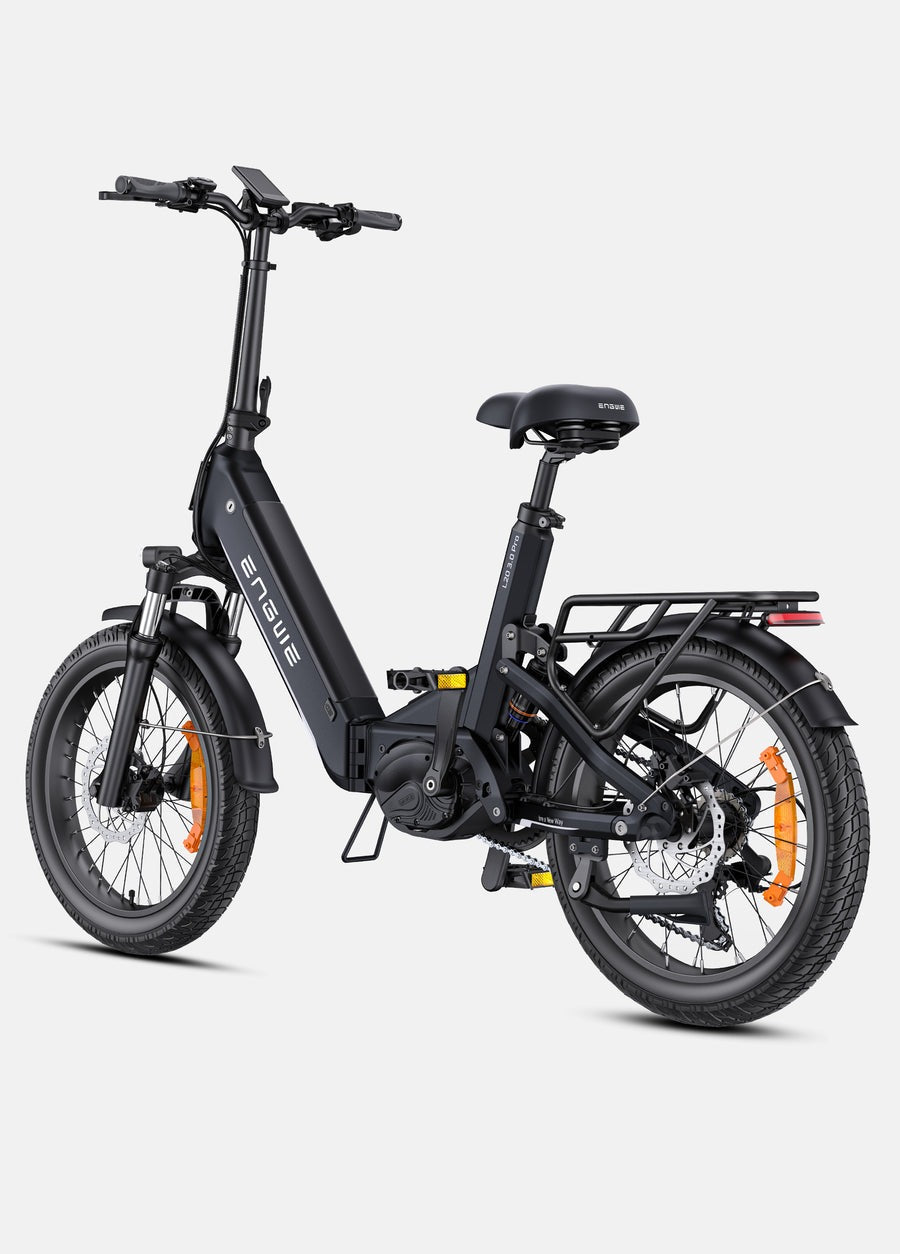

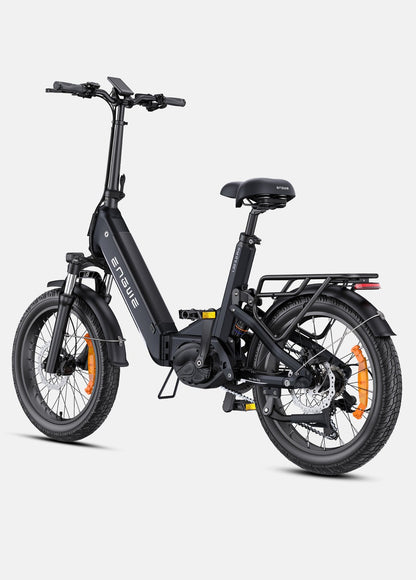

• ENGWE L20 3.0 Pro 250W 100Nm Mid-drive Motor Full Suspension Compact E-bike
• Electric Spec

• Model: L20 3.0 Pro

• Max Load Capacity: 150 kg (330 lbs)

• Recommended Rider Height: 5'1" – 6'3" (155 cm – 190 cm)

• Certification: CE (EN15194)

• Pedal Assist Levels: 5

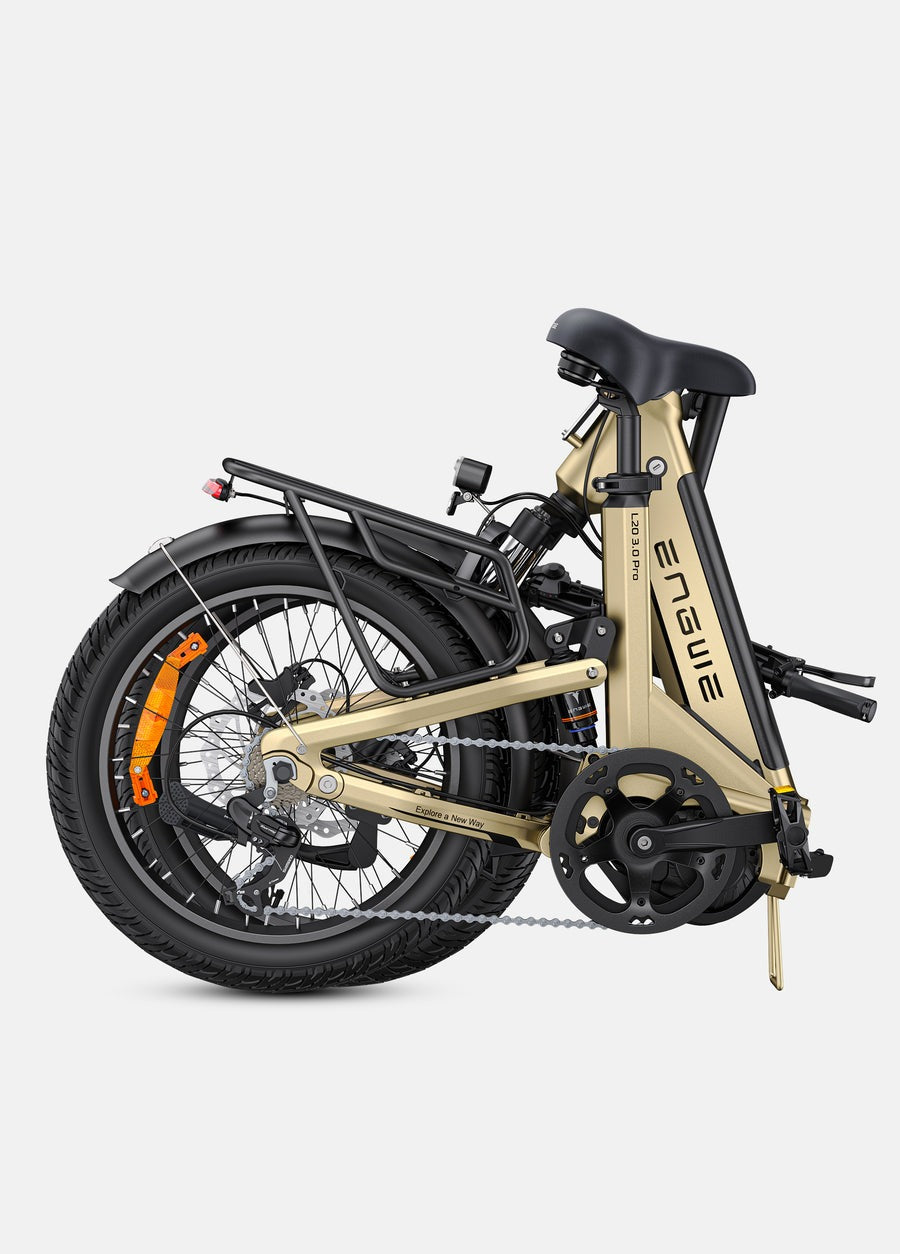

• Foldable: Yes

• Waterproof Ratings:

  • IPX7 – Wiring

  • IPX6 – Display & Lights

  • IPX5 – Motor & Controller

  • IPX4 – Battery Box

    ---



• Range

• Lab-Tested Range (Full Charge): 160 km

• Real-World Range:

  • 140 km (PAS 1)

  • 110 km (PAS 3)

  • 96 km (PAS 5)

    ---



• Weight

• Bike Weight: 32.8 kg (72.3 lbs)

• Gross Weight: Approx. 42 kg (92.6 lbs)

  ---



• Frameset

• Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design

• Frame Style: Compact, Full Suspension

• Front Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum

• Rear Suspension: 30 mm Travel

  ---



• Wheel Set

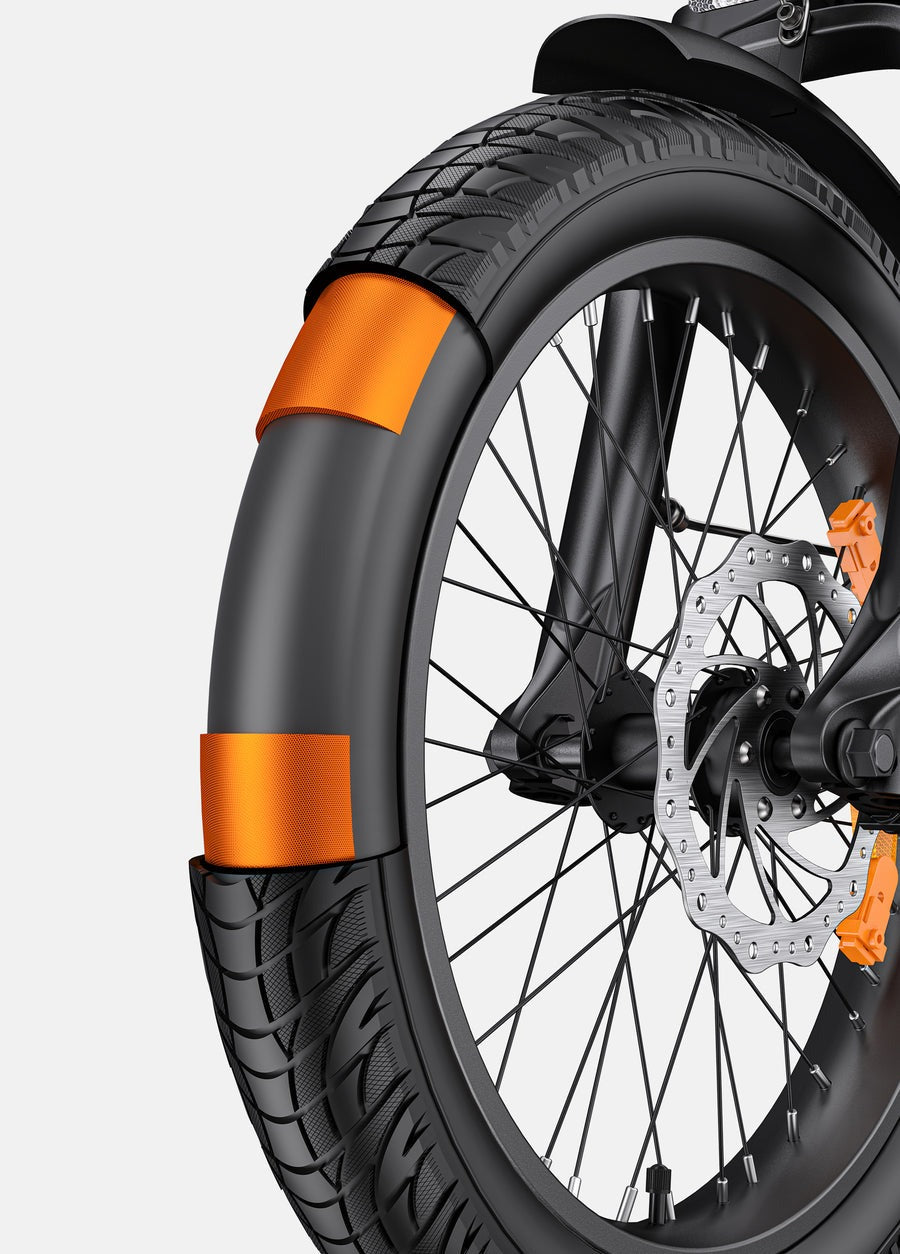

• Tires: 20" × 3.0" Urban Hybrid Tires with 3 mm Anti-Puncture Layer

• Wheels: 20", 12-Gauge Spokes, 36-Hole, Double-Wall Aluminum, Black

  ---



• E-Bike System

• Motor: Mivice X700 Mid-Drive, 48V

• Max Torque: 100 Nm

• Assist System: Torque Sensor

• Battery: 48V 15Ah (720Wh) Samsung 21700 Cells with BMS

• Display: 3.5" LCD Color, Mid-Mounted (ENGWE-Designed)

• Connectivity: ENGWE IoT Module (GPS, 4G, Bluetooth) + App Control

• Charger: 54.6V, 8A Output

• Front Light: 30 Lux with Integrated E-Horn

• Rear Light: Auto Brightens on Braking or Movement

  ---

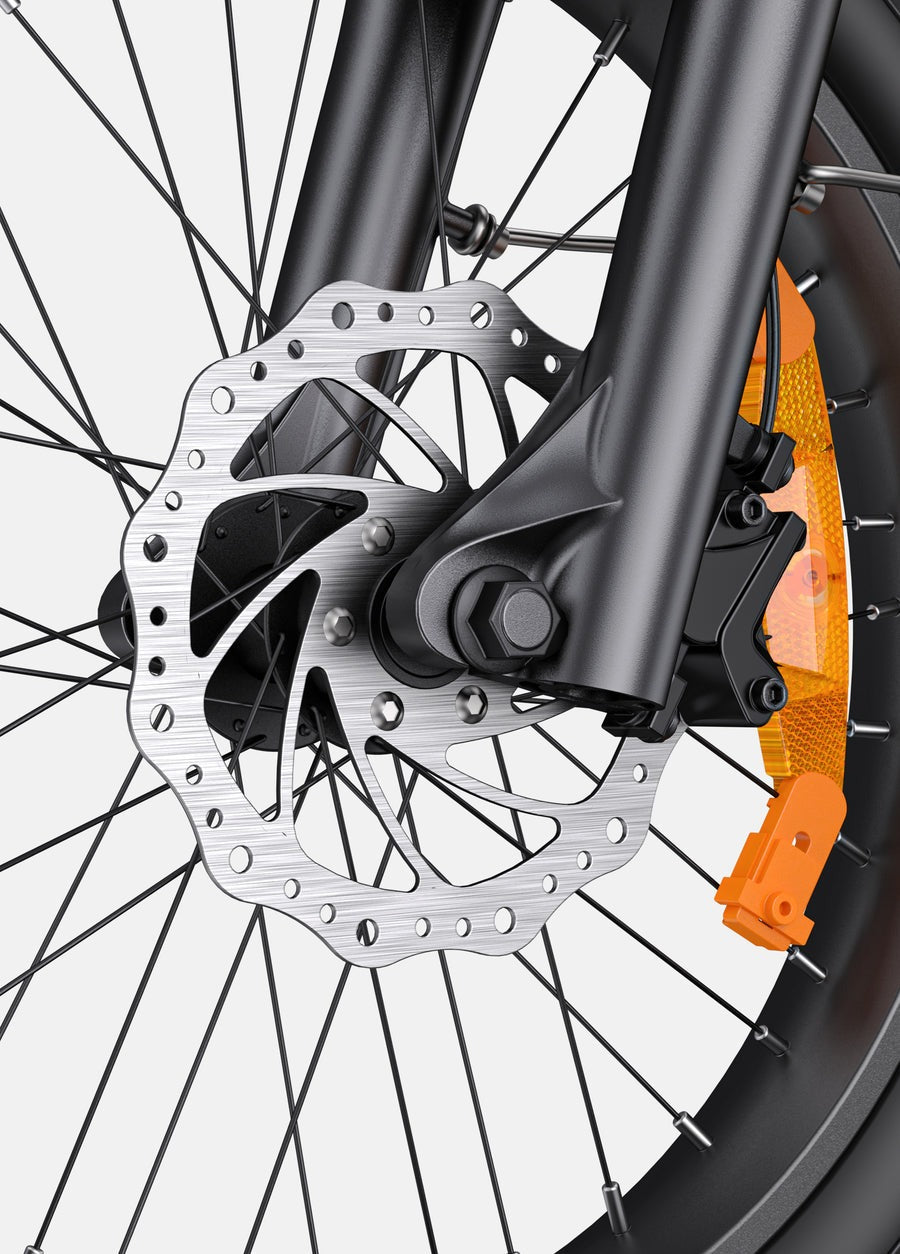

• Brakes

• Type: Hydraulic, Dual-Piston

• Disc Rotors: 180 mm Front & Rear

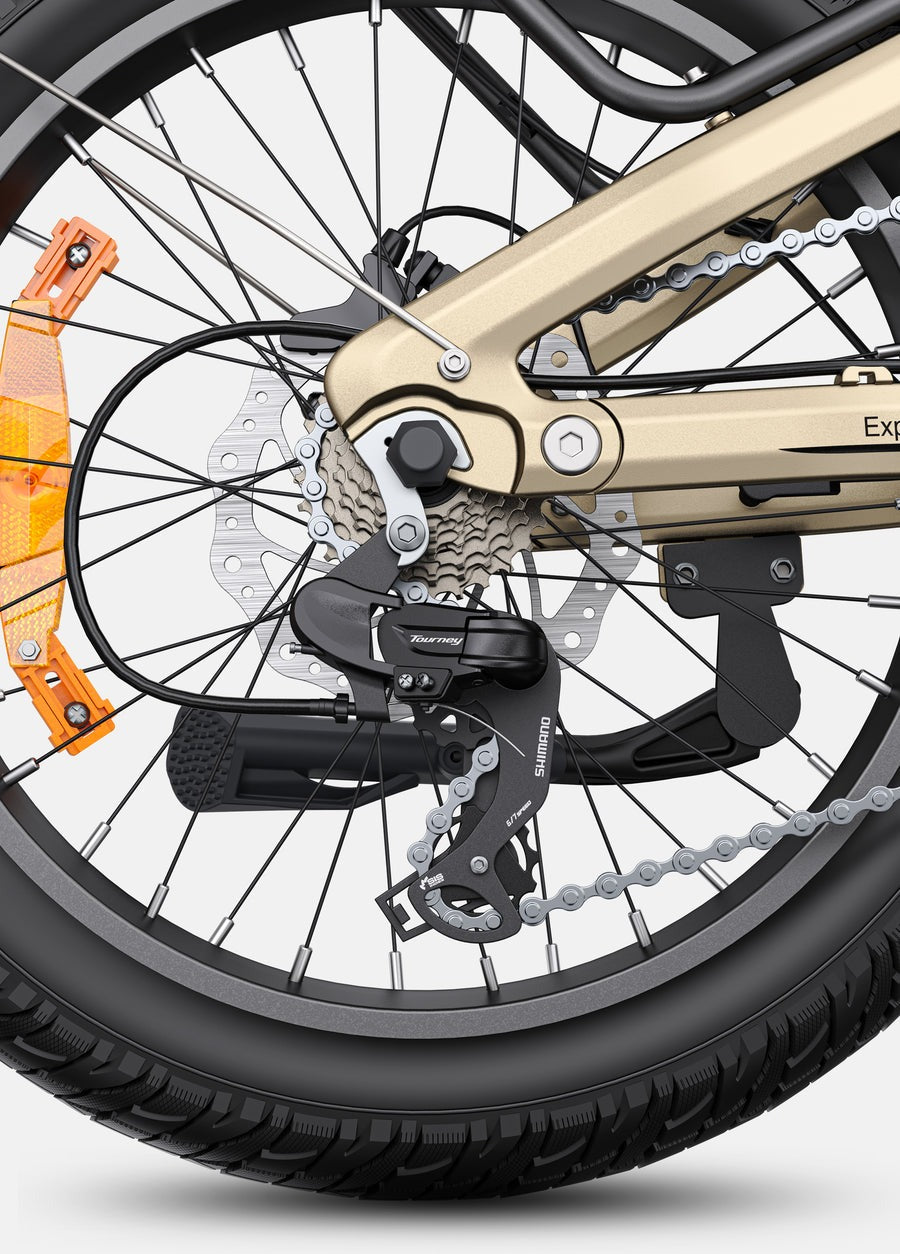

• Drivetrain

• Chain: KMC E8S Anti-Rust, 112 Links

• Chainring: 48T

• Crank: 170 mm

• Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

• Shifter: Shimano SL-M315-7R

• Cassette: 7-Speed, 14T–28T

• Pedals: Boron Steel, Non-Foldable

  ---



• Cockpit

• Saddle: ENGWE Soft Saddle

• Seat Post: 10-Level Adjustable

• Handlebars: 680 mm Width

• Stem: Foldable

• Seat Clamp: Quick-Release

  ---

  Terrain Compatibility

• Tarmac Roads & Bicycle Routes

• Gravel-Paved Paths

• Sandy Beaches & Grass

• Country Roads & Paved Trails
