Best 36V–52V Rear Rack e-Bike Battery 17.5Ah–22.5Ah Panasonic Cells | Professional e-Bike Kit Battery for Bafang Mid Drive & Hub Motors | High-Performance Lithium Battery with Smart BMS

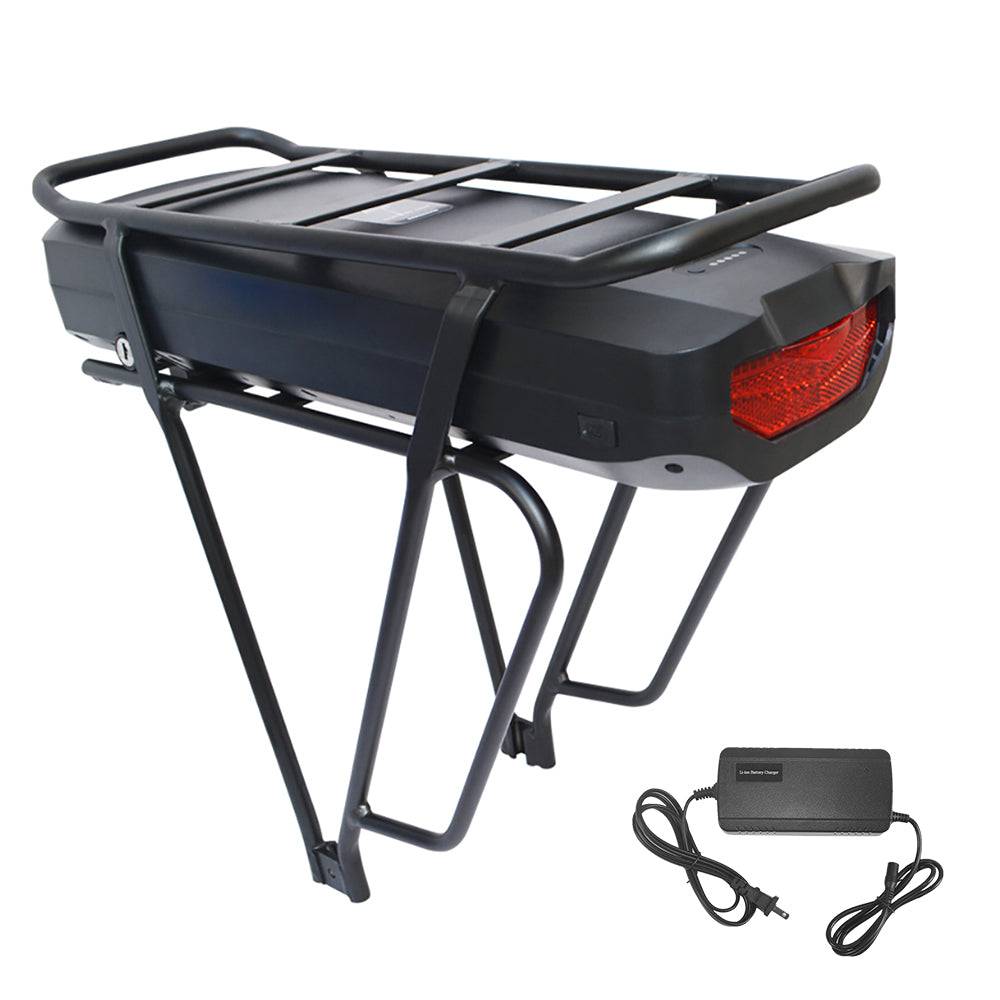

Rear Rack eBike Battery

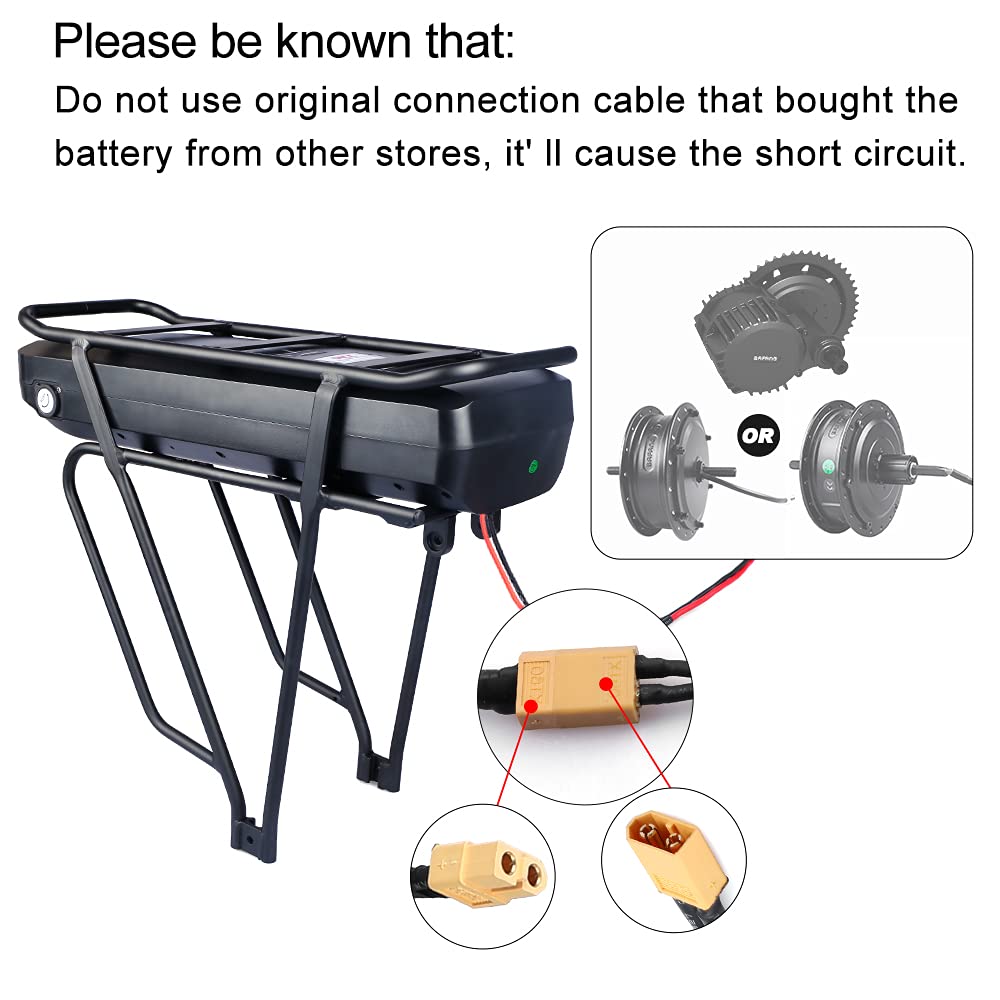

Battery for Bafang Drive Kits

Electro City Bikes offers special batteries for Bafang motors, the battery has built-in BMS for Bafang motors, if you want to change a new battery for your Bafang drive kit, Electro City Bikes will be the right choice for you.

Power and Protection

choose an ebike battery that will protect the eBike system. Electro City Bikes Hailong ebike batteries power and protect the Bafang drive kits, increase the life of the eBike motor.

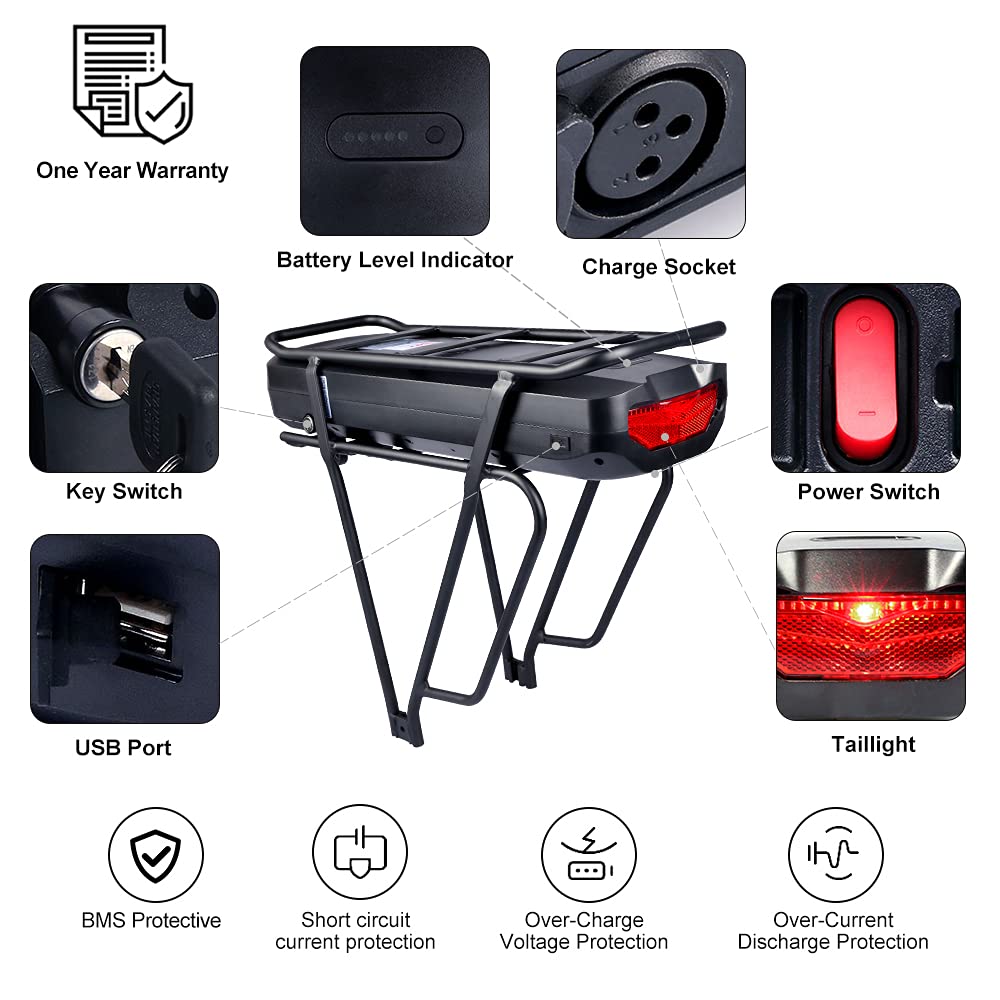

Protection Function

Overpower Protection | Over Voltage Protection | Over Current Protection | Over Discharge Protection | Cell Balancing | Overcharge Protection | Short Circuit Protection

Tips for Riding eBike

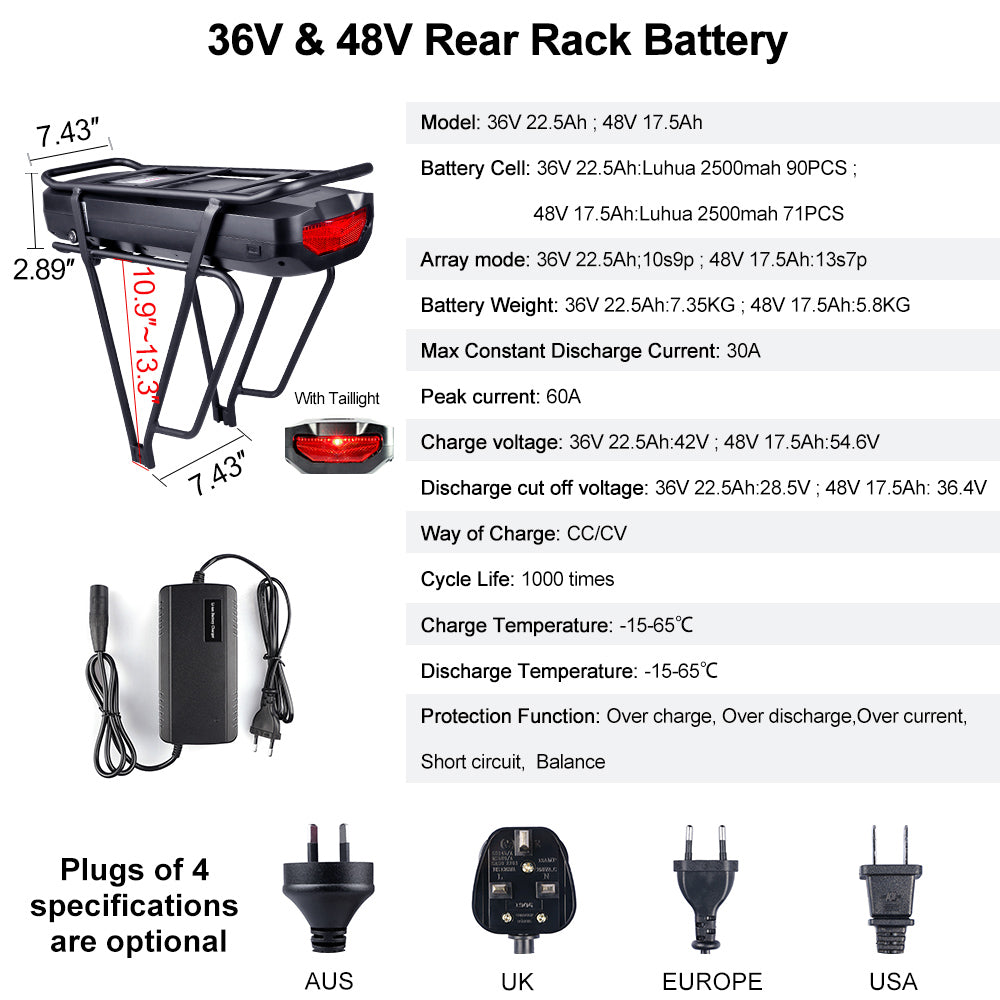

Specification:

• Rated Volt: 36/48/52 (V)
• Rated Capacity: 22.5/17.5/17.5 (Ah)
• Battery Cell: 2500mah/2500mah [Panasonic]/2500mah [Panasonic]
• Cell Arrangement: 10s9p/13s7p/14s7p
• Battery Size: 476*165*90 (mm)
• Battery Weight: 7/6/6 (kg)
• Max Constant Discharge Current: 30 (A)
• Peak Current: 60 (A)
• Charge Voltage: 42/54.6/58.8 (V)
• Cut-off Voltage: 28/36.4/36.4 (V)
• Way of Charge: CC/CV
• Charging Time: 2000
• Charge Temperature: -15 to 65 (℃)
• Discharge Temperature: -15 to 65 (℃)
