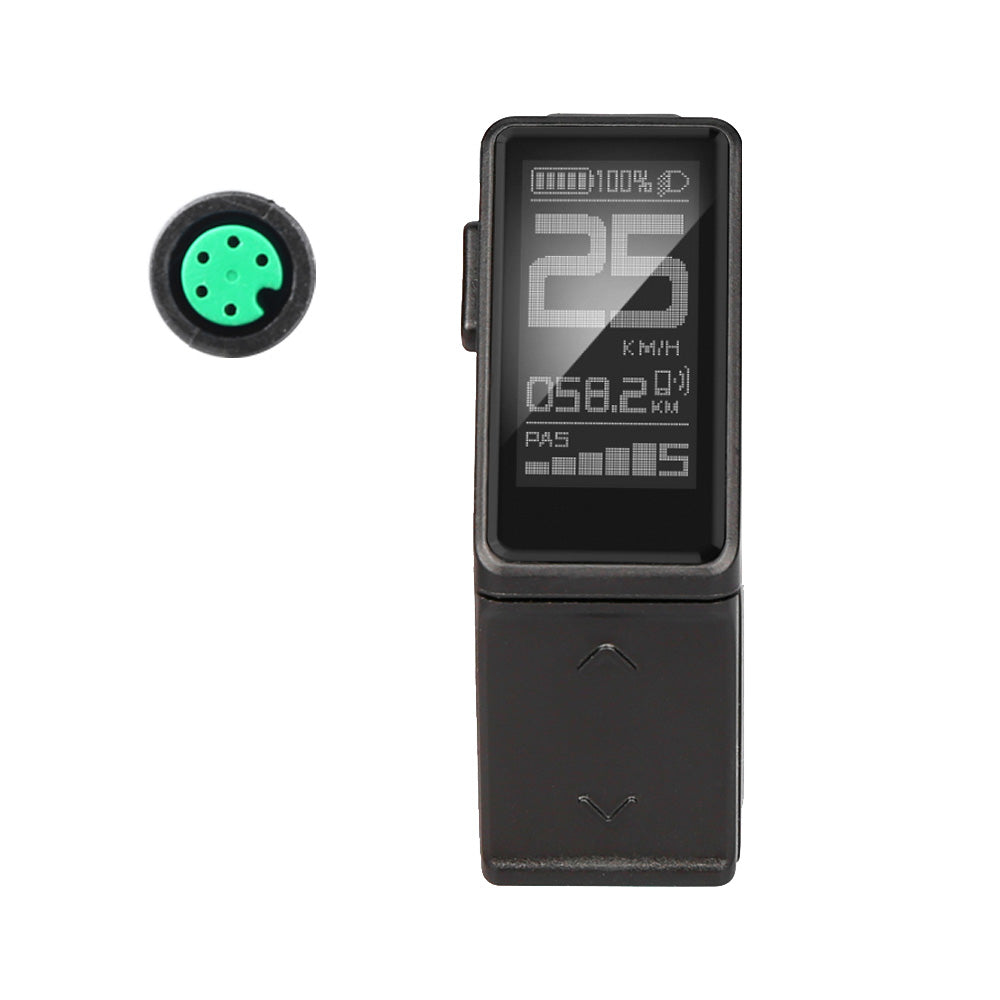

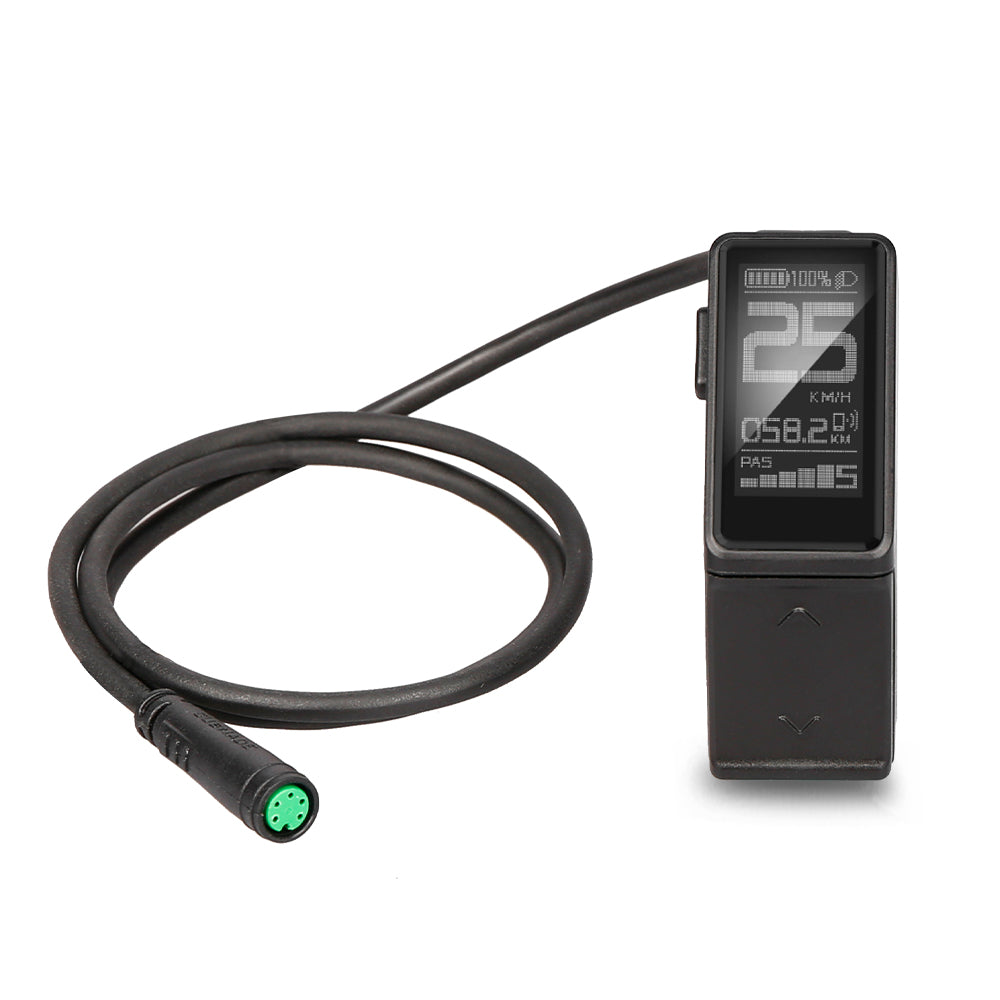

DM03 eBike Display for Bafang eBike Conversion kits

DM03 is suitable for Electro City Bikes Bafang Motors

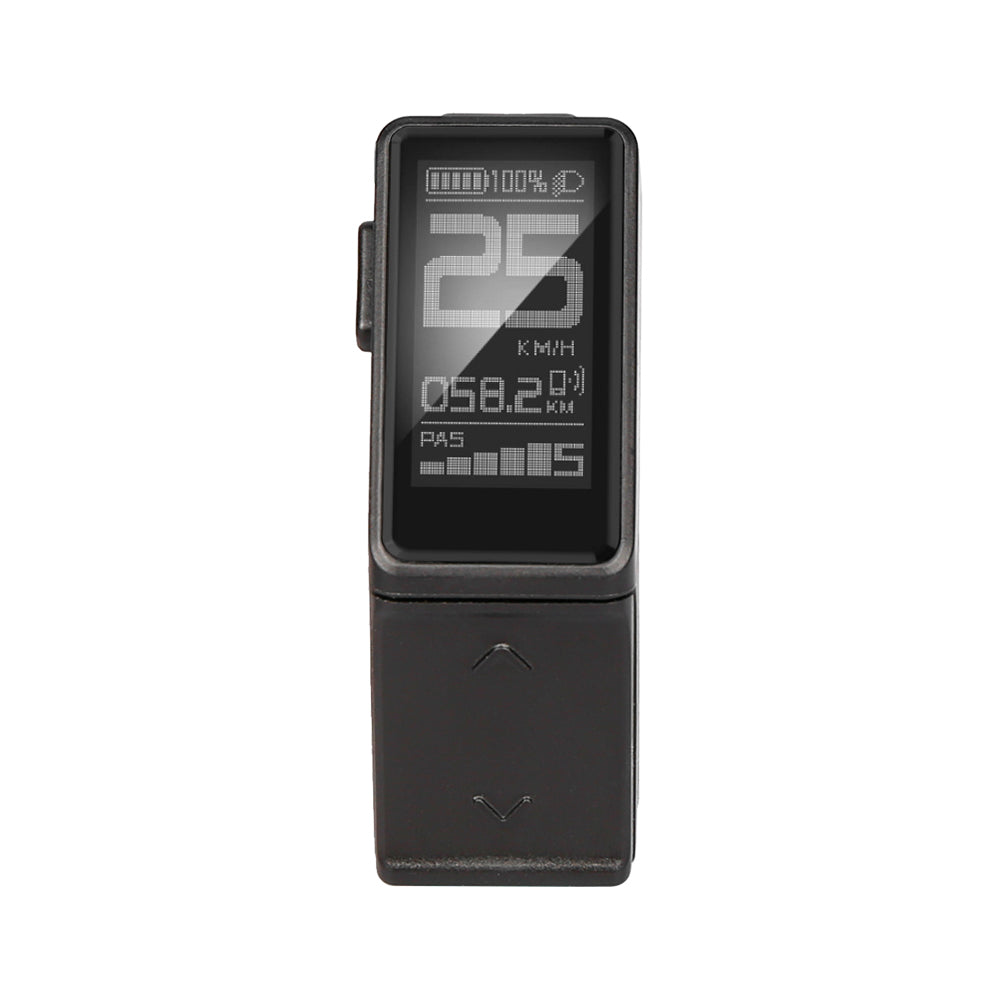

DM03 is the upgraded version and replacement of SW102, it has tempered glass screen with 2.5D chamfered edge, 1.3 inch high brightness OLED screen, enlarged operating space plus ergonomic button design, IP65 waterproof level, excellent for outdoor use, built-in Bluetooth function, compatible with UART protocols.

How to Install Electro City Bikes DM03

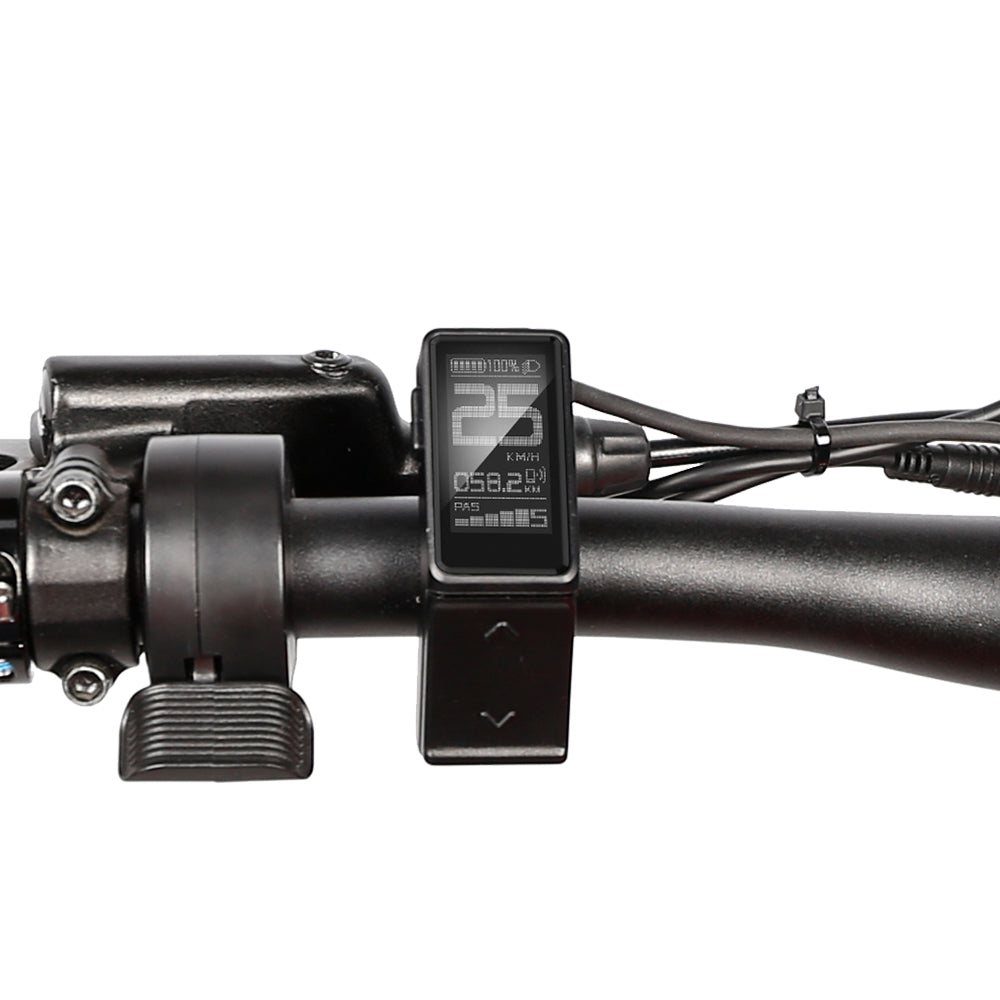

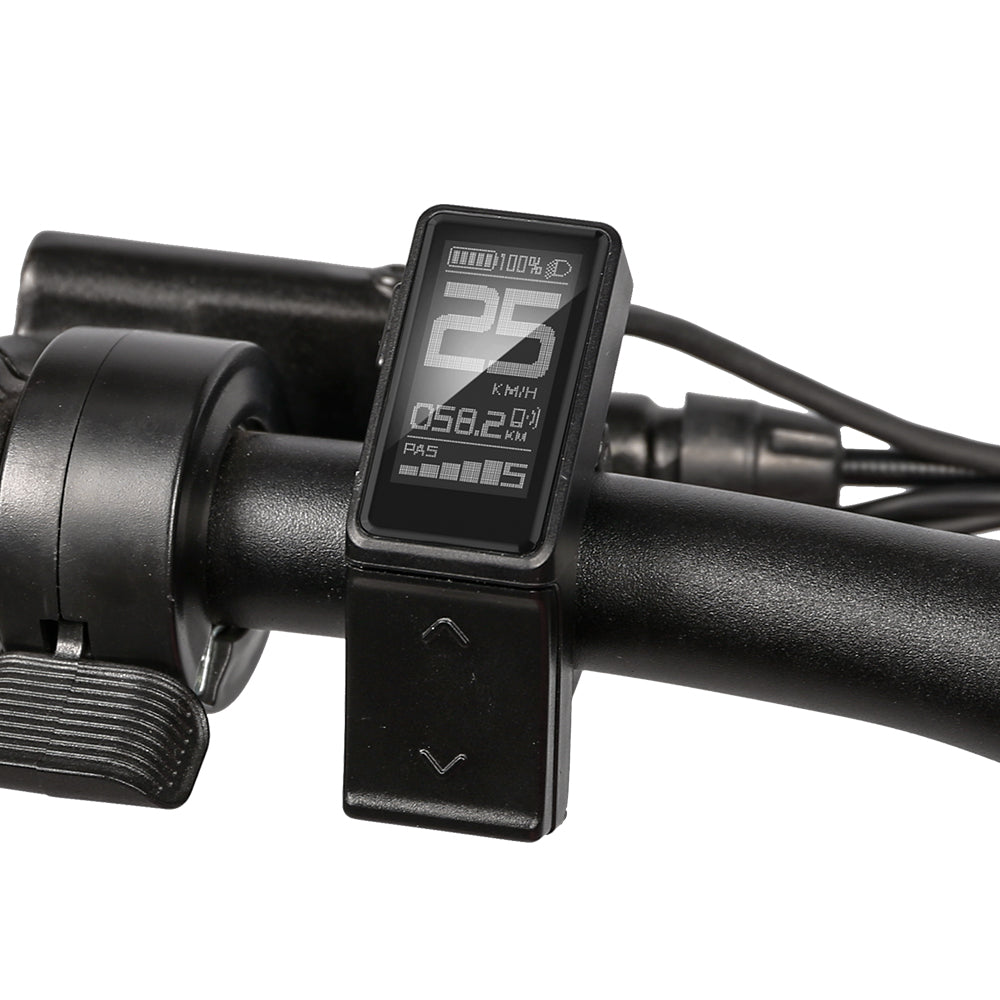

• Step_1: Open the display locking clip, set the display in the left handlebar (support standard handlebar size: 22.2mm)
• Step_2: Adjust to a position easy to operate, using M3 hex set to screws and tighten. Tightening torque: 0.8N.m. *Note: Damage caused by excessive torque is not covered by the warranty.

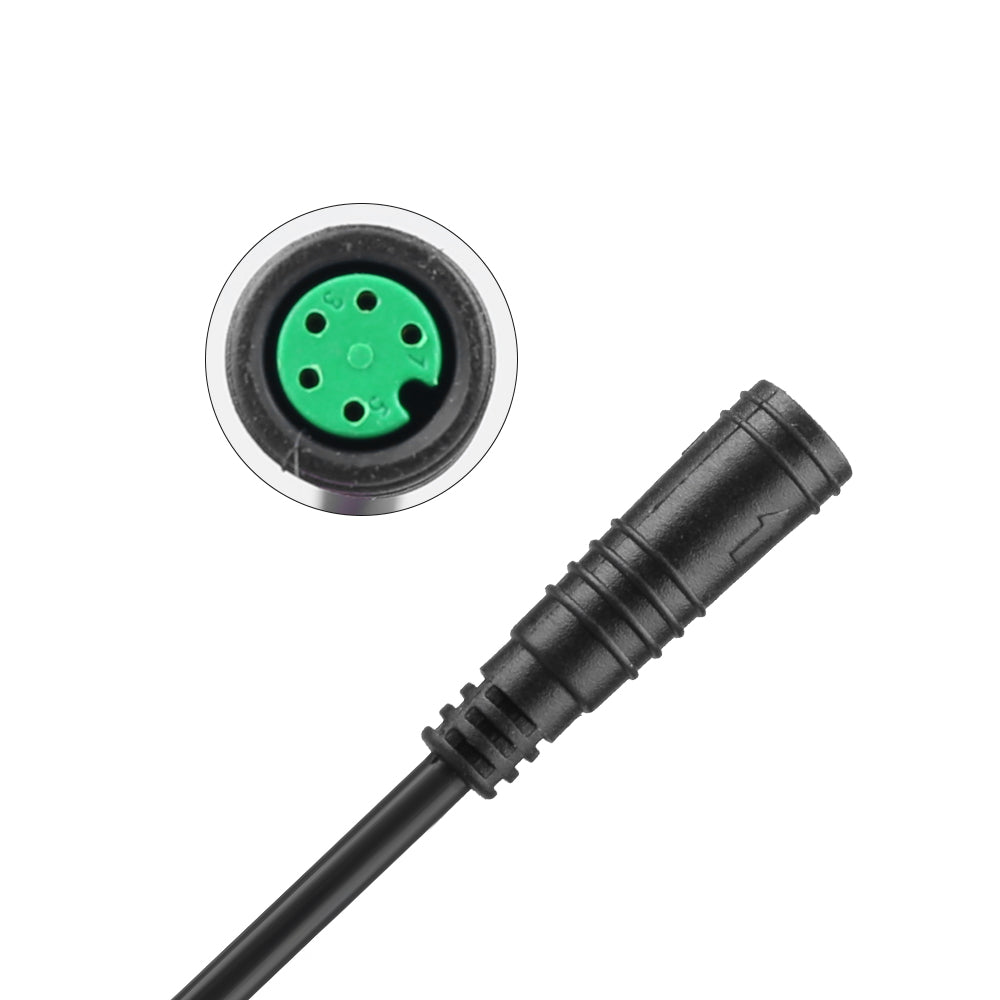

• Step_3: Connect the 5 pin plug to the docking plug of the controller as marked

Specification

• Power supply: DC 24V/36V/48V
• Rated current: 18 mA
• Shutdown leakage current: below 1uA
• Screen specification: 1.3 (in) OLED
• Protocols: UART

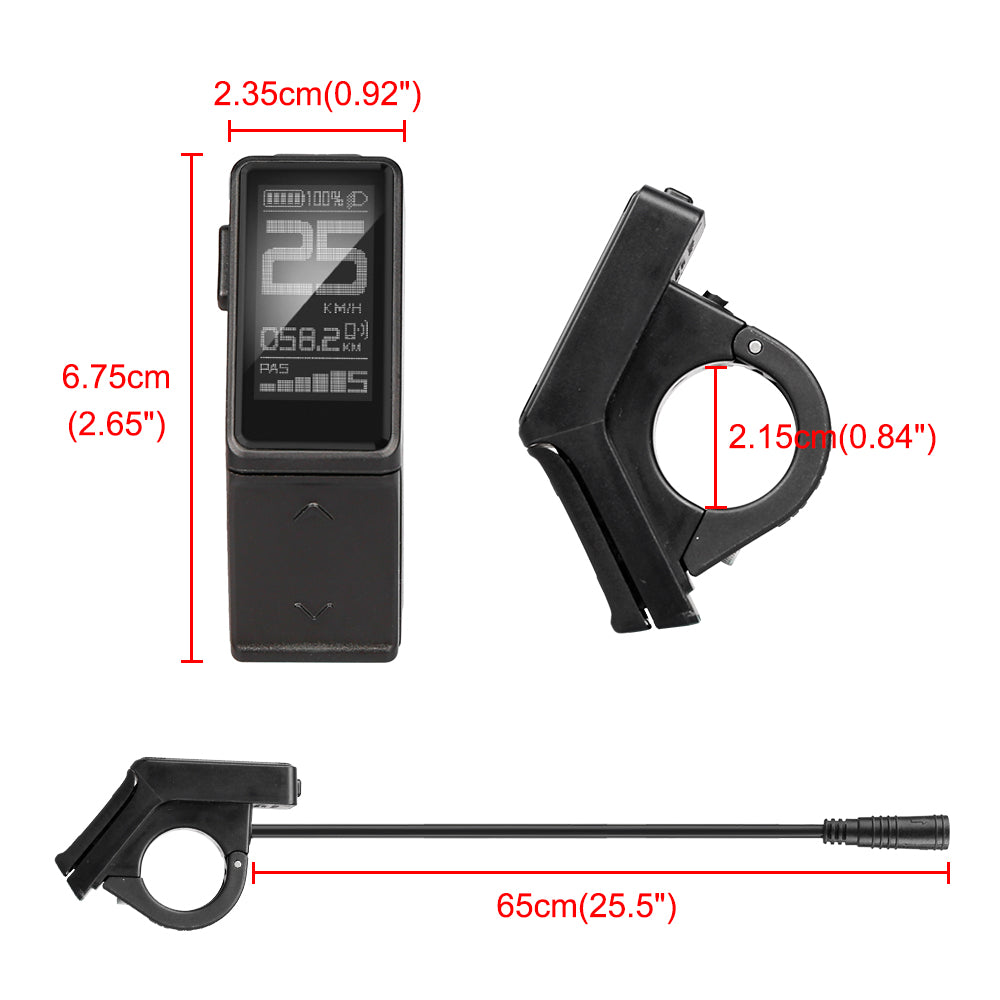

• Size: 75*50*70 (mm)
• Weight: 0.066kg
• Operating temperature: -20 ~60 (°C)
• Storage temperature: -30 ~ 80 (°C)
• Waterproof level: IP65

Function for Touch 1

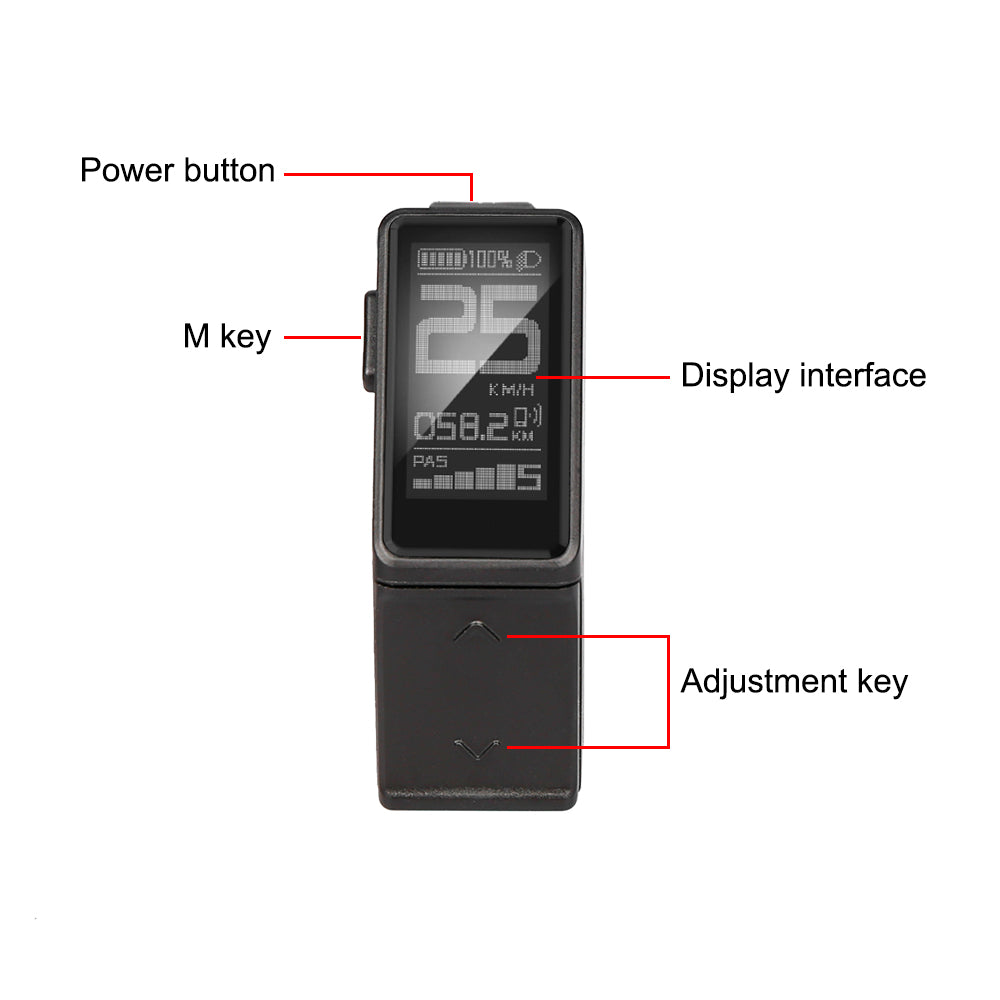

• Four buttons, ergonomic design;
• Selective digital and icon power assist gear for high visibility;
• Speed km/h or mph;
• Speed: Real-time speed (SPEED), maximum speed (MAX), average speed (AVG);
• Battery indicator with percentage display;
• Range: Endurance mileage (*available if BMS provides necessary info);
• Headlight on/off status indication and control;
• Mileage: Subtotal mileage(TRIP), total mileage (ODO);
• Walk assist function;
• Parameters setting and advanced setting;
• Error code indication;
