850C UARTbus Electric Bike Display for Bafang Motor Kit

Electro City Bikes 850C Electric Bike Display

The price will be cheaper a lot if you buy this display together with the motor. Electro City Bikes 850C is available to work with all our Bafang motor includes BBS01B, BBS02B, BBSHD, and all front or rear Hubs.

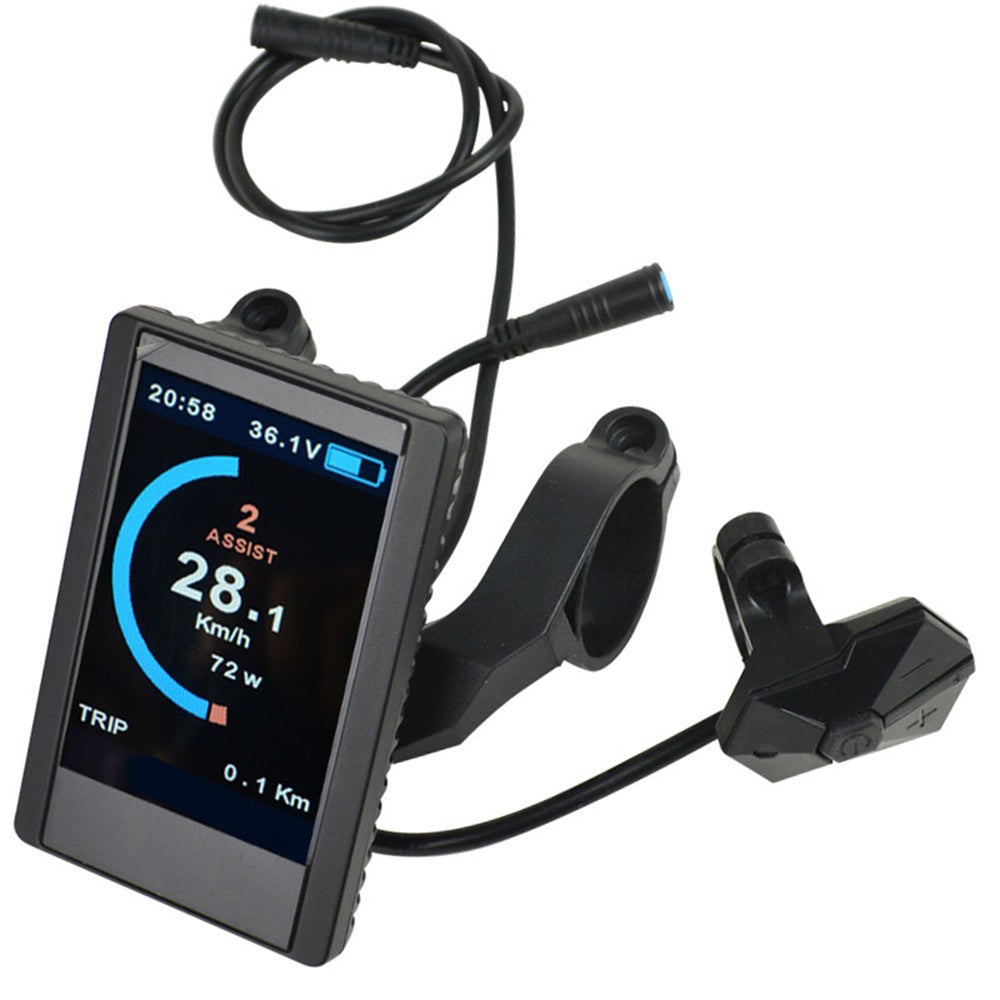

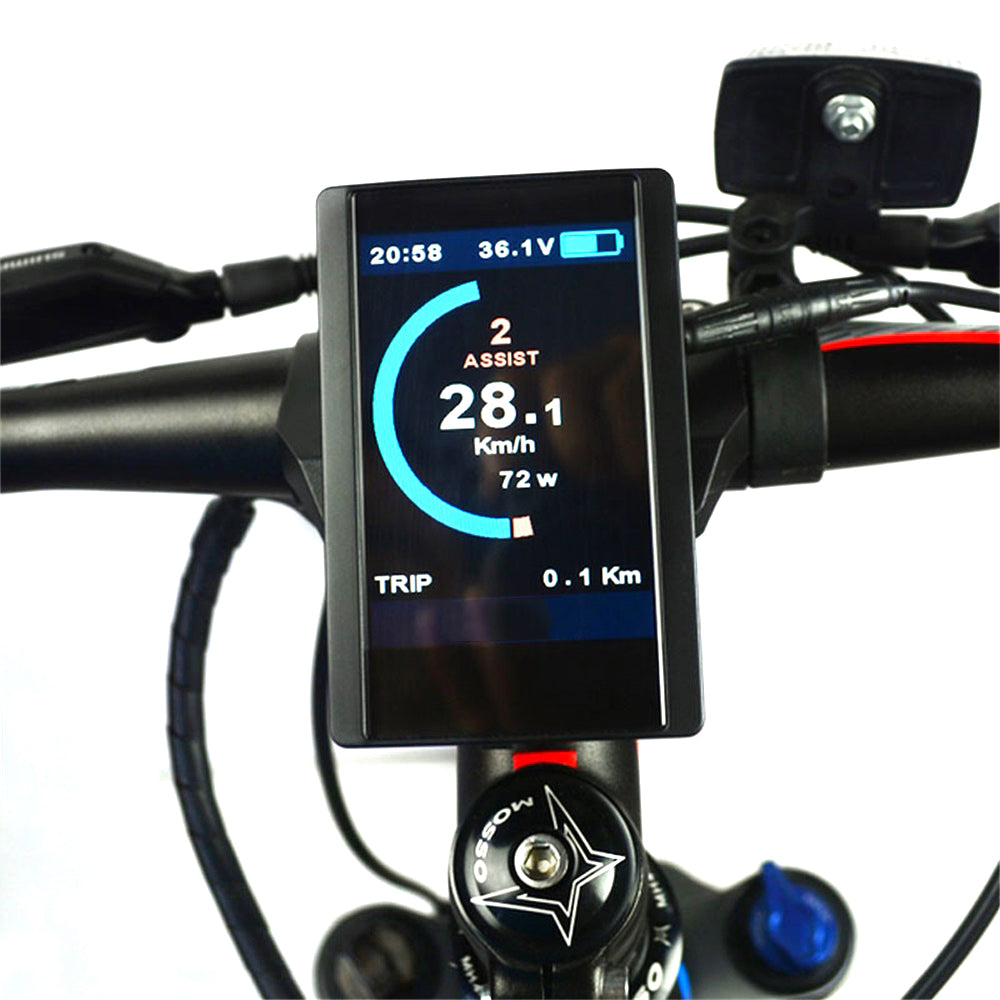

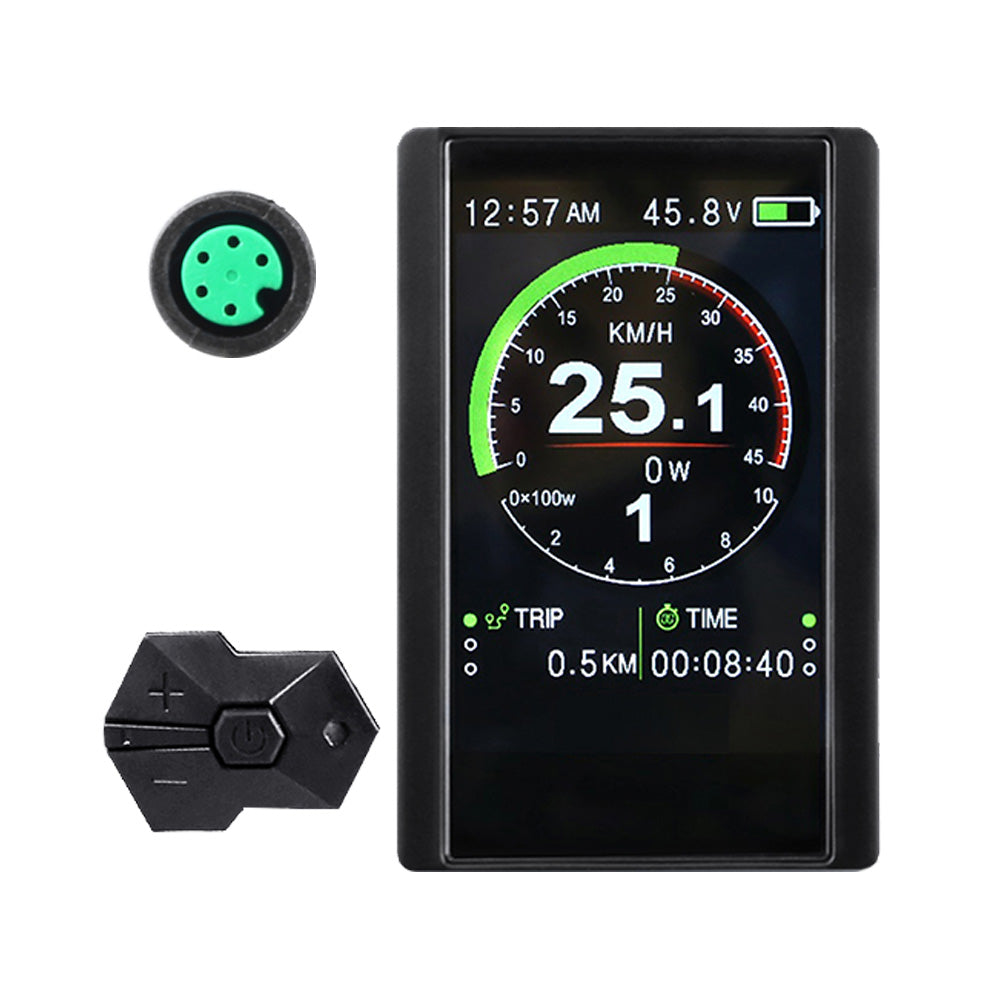

Electro City Bikes 850C is a 3.2 inch vertical screen, which will save some space of the bar for other assembly. This display shows information for the eBike and the tour in a simple way vertical view, it is very easy to read. Battery Status, Speed Mode, Speed, Assist Level, Power, Mileage, Clock. It also comes with ergonomic keypad, this design allows the rider to adjust gears and system parameters more safely.

Electro City Bikes offers two brands of display, Bafang displays and our own brand Electro City Bikes displays. We highly recommend our customers to consider our meters because our meters have the same performance as Bafang's but the price is much cheaper, it helps you complete the eBike conversion with lower budget.

Specification

• Model: Electro City Bikes 850C
• Screen: TFT LCD (Color)
• Screen Size: 3.2 inch
• Direction: Vertical
• Operating Temperature: -20 to 70°C
• Material: ABS
• IP Rate: IP65

Setting Mode

• *Protocol: UART
• Speed (Mile/Kilometer): AVG/MAX/Real-time
• Assist Level: 3/5/9
• Battery Indicator: Voltage/Percentage/OFF
• Power Indicator: Yes
• Mileage Indicator: Odometer/Trip Distance/Clock/Riding Time
• Speed Limit(Mile/Kilometer): 10 to 60/99 m/h
• Headlight: On/Off
• Walking Mode: Yes
• Software Upgrade: Support

User Manual

• Electro City Bikes 850C Display User Manual (EN)
• Electro City Bikes 850C Display User Manual (DE)
