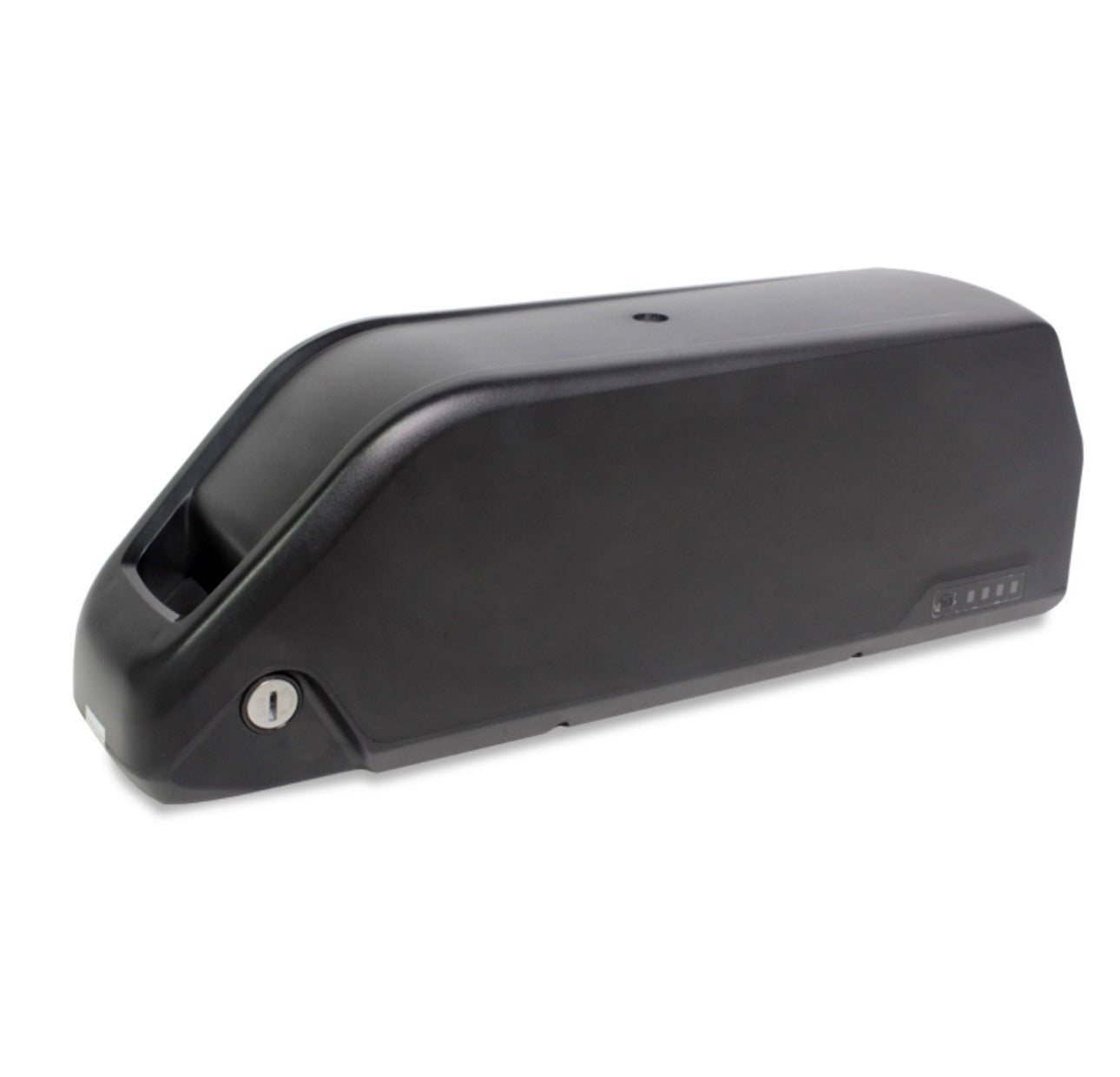

52V 14.0Ah Hailong G80 Max Down Tube Battery with 58.8V Charger

Mileage for 52V 14.0Ah HaiLong Mas G80 Downtube Battery

Conservative Mileage for 48V 18.0Ah

• Throttle Mode: 37KM (52V/1000W)
• PAS Mode: 74KM (52V/1000W)

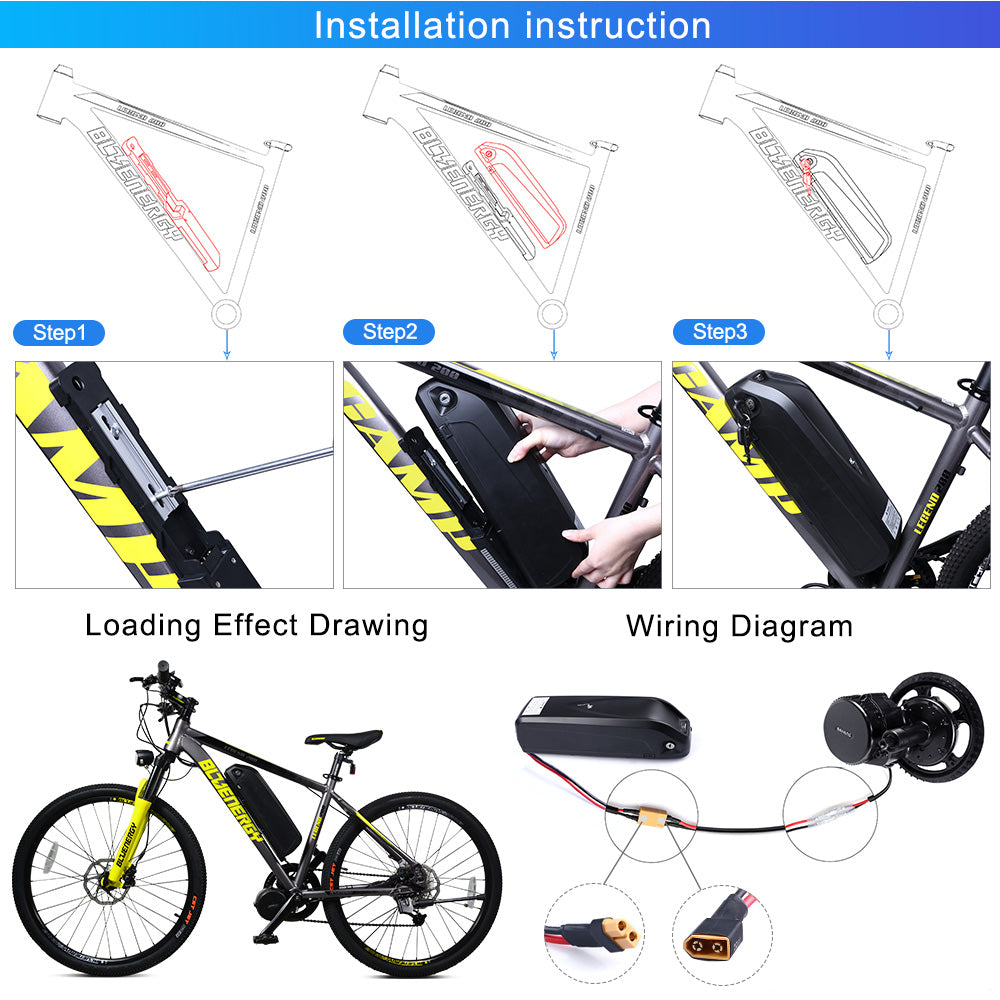

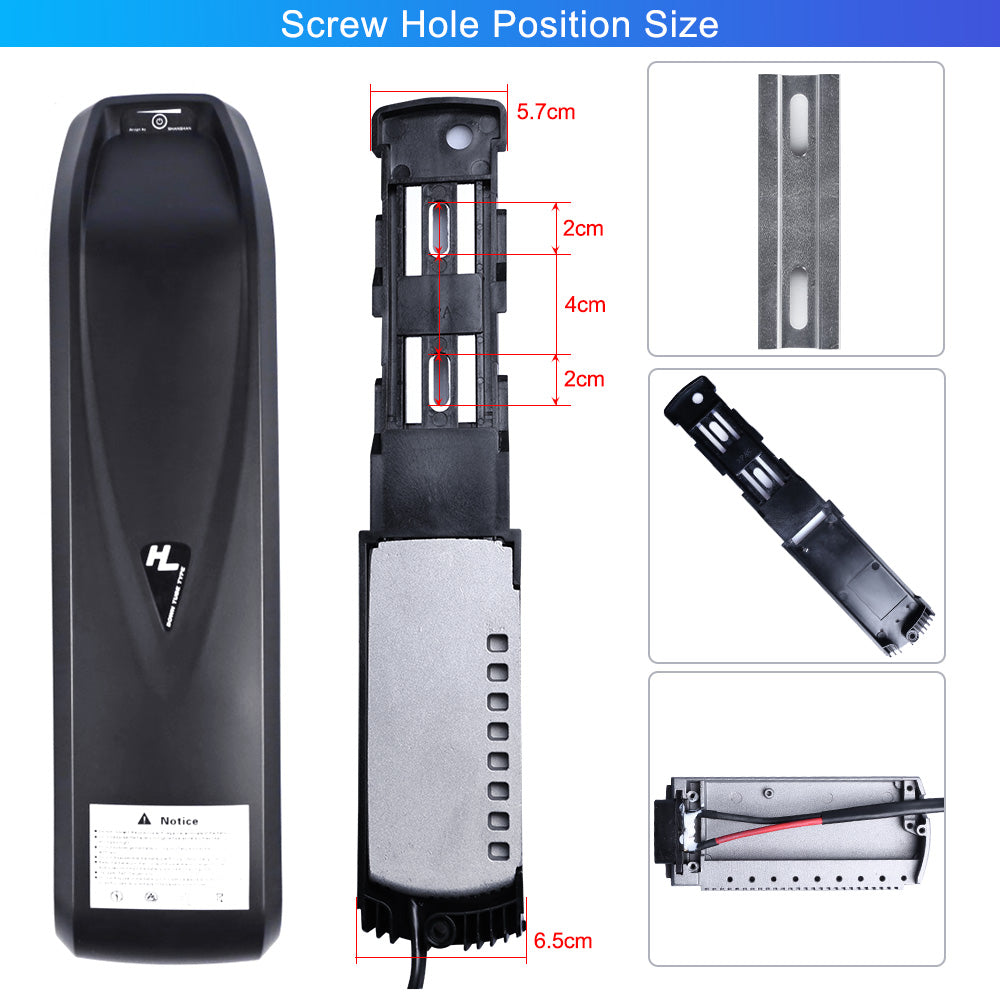

Battery Installation Measurement

• Battery and Socket (inch): 14.66*3.58*4.97

File: Hailong_G80_large_battery_installation_measurement

Suitable Motor

• BBSHD: 52V/1000W, 52V/1000W (100mm), 52V/1000W (120mm).

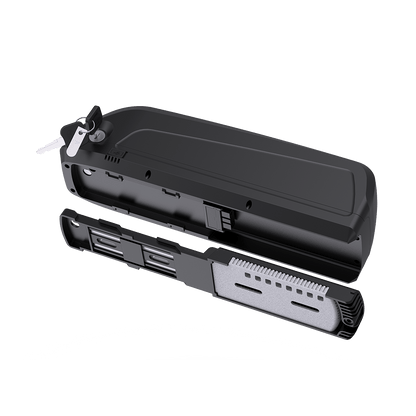

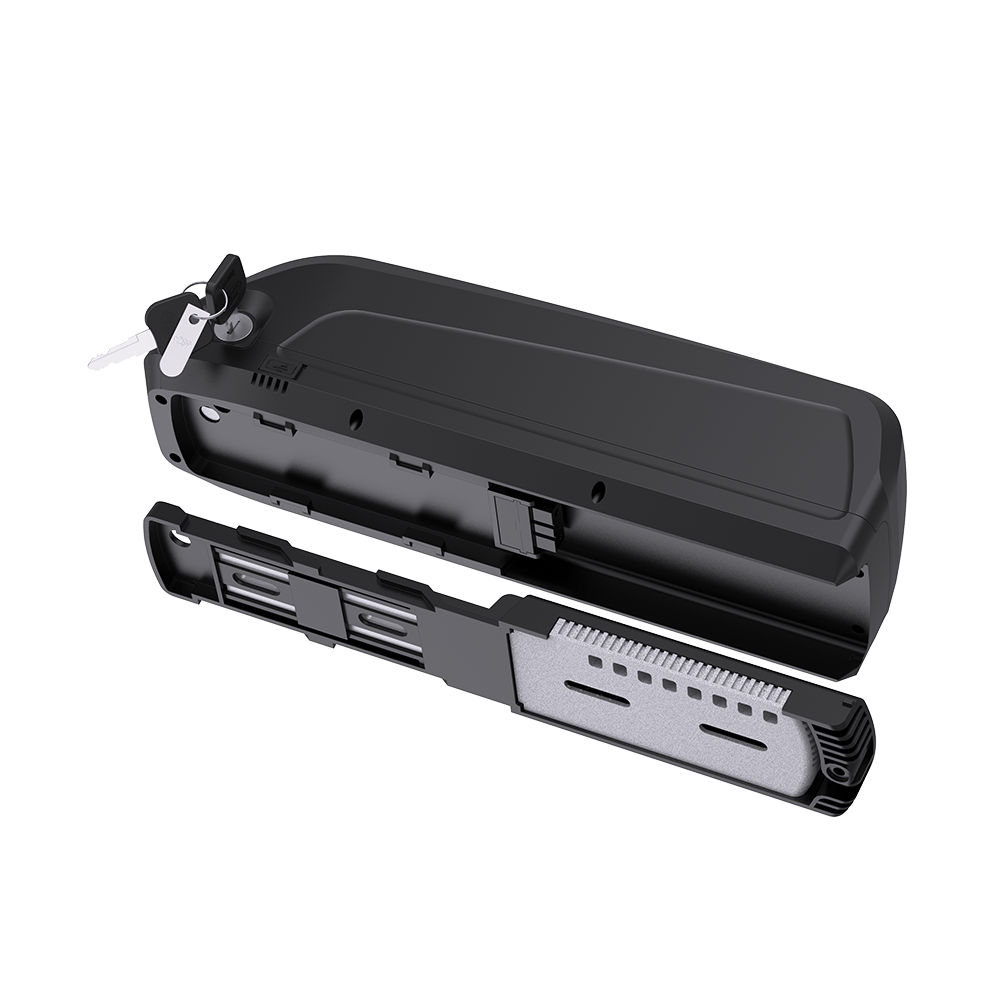

Upgraded Connection Method

The old-style connectors used a multi-pin socket, which is like an electrical socket at home, but it has more pins, which is not good for e-bike batteries that may need to be connected frequently. So we upgraded the connector and adopted the contact connection method. The new connection method not only simplifies the installation and removal of the battery, but also improves the duration of the battery connector.

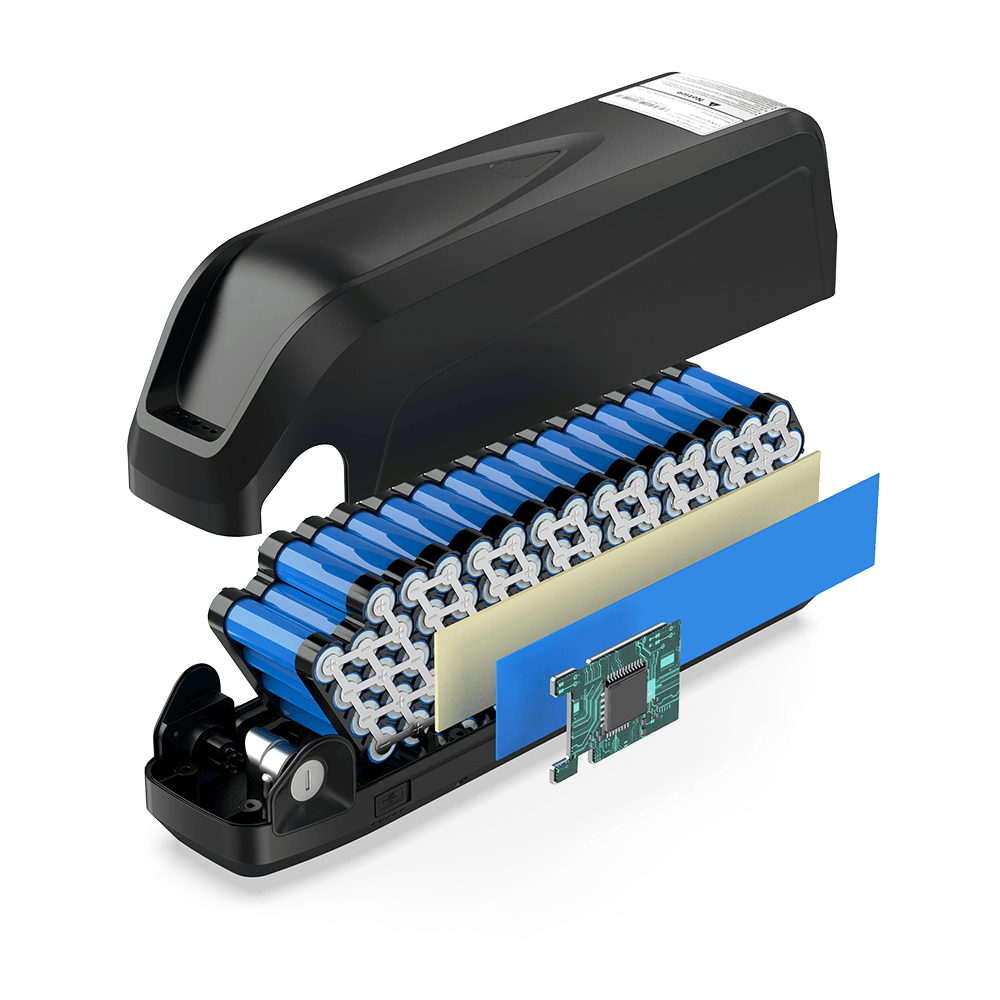

Battery Management System

• Overpower Protection
• Over Voltage Protection
• Over Current Protection
• Over Discharge Protection
• Overcharge Protection
• Short Circuit Protection
• Cell Balancing

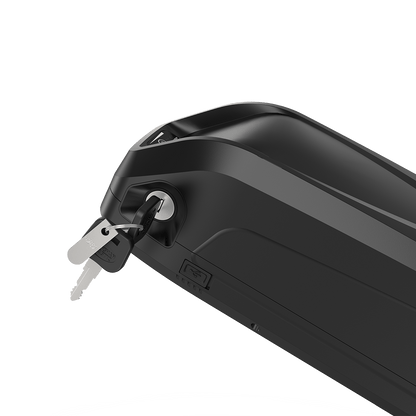

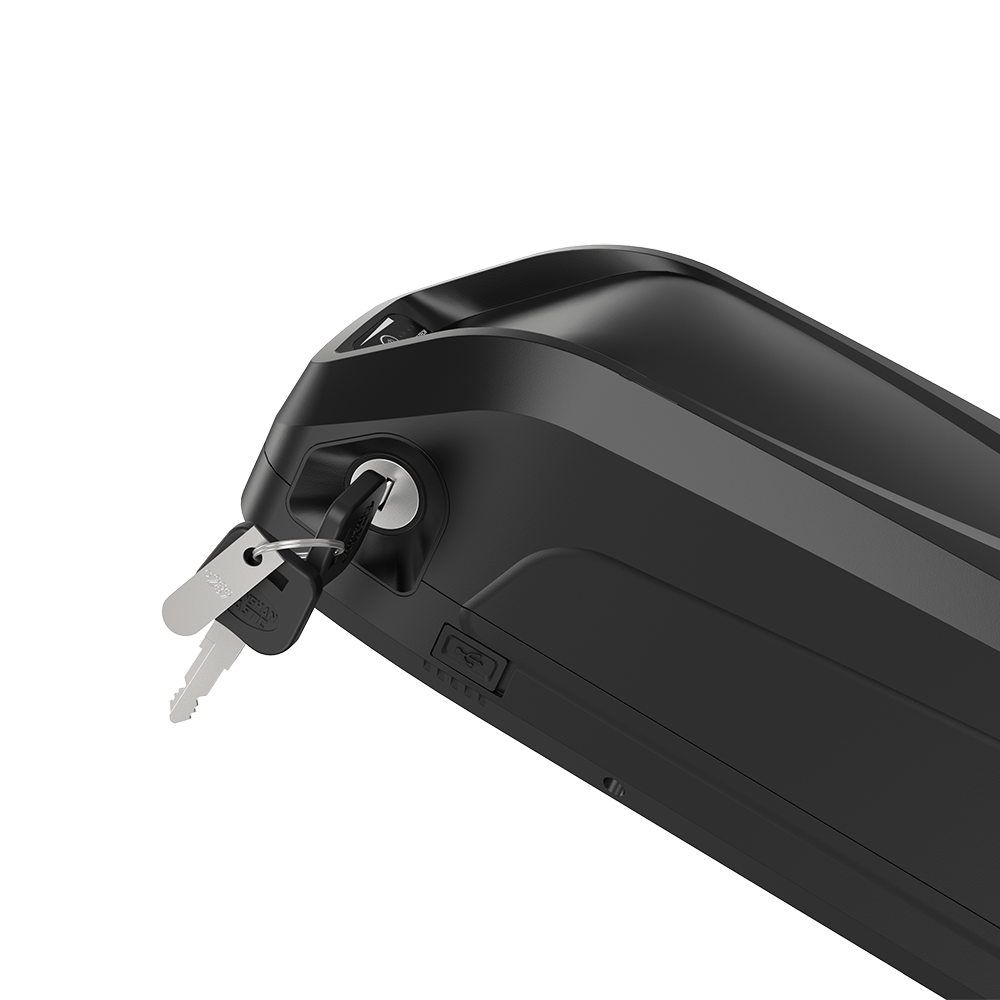

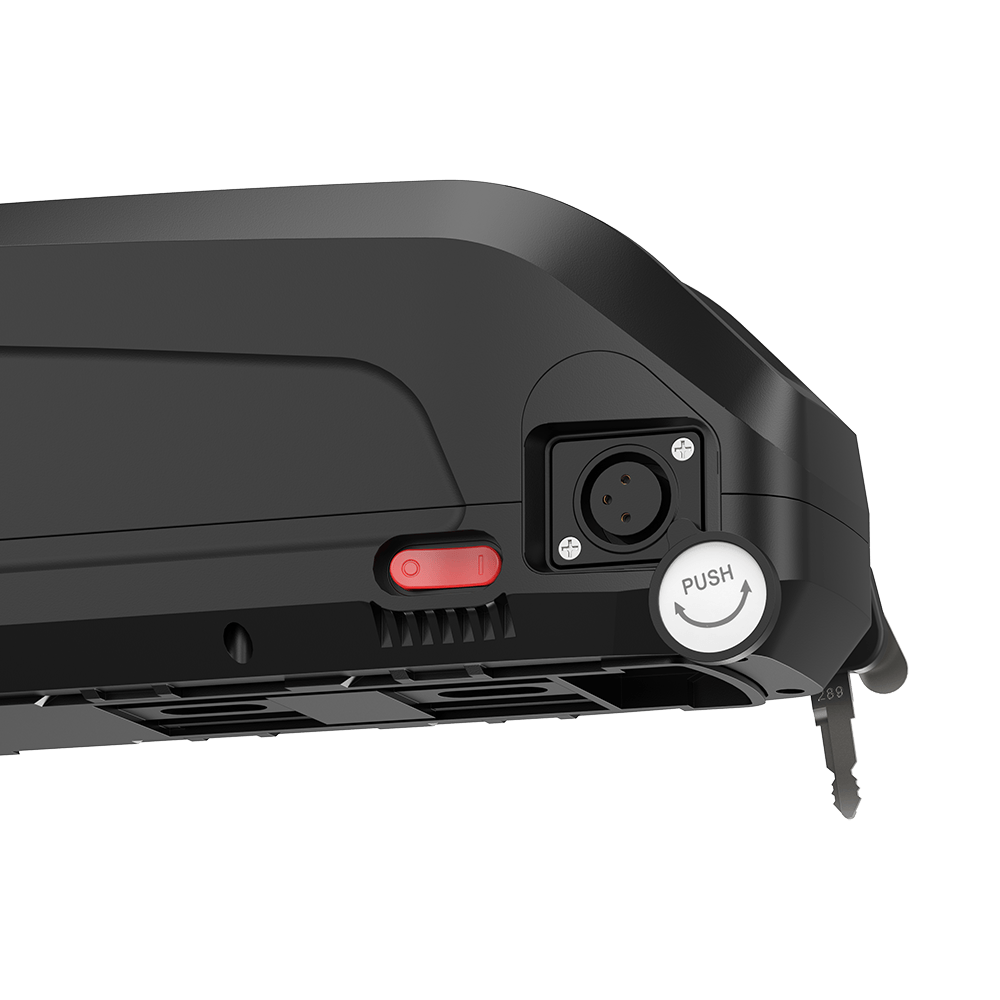

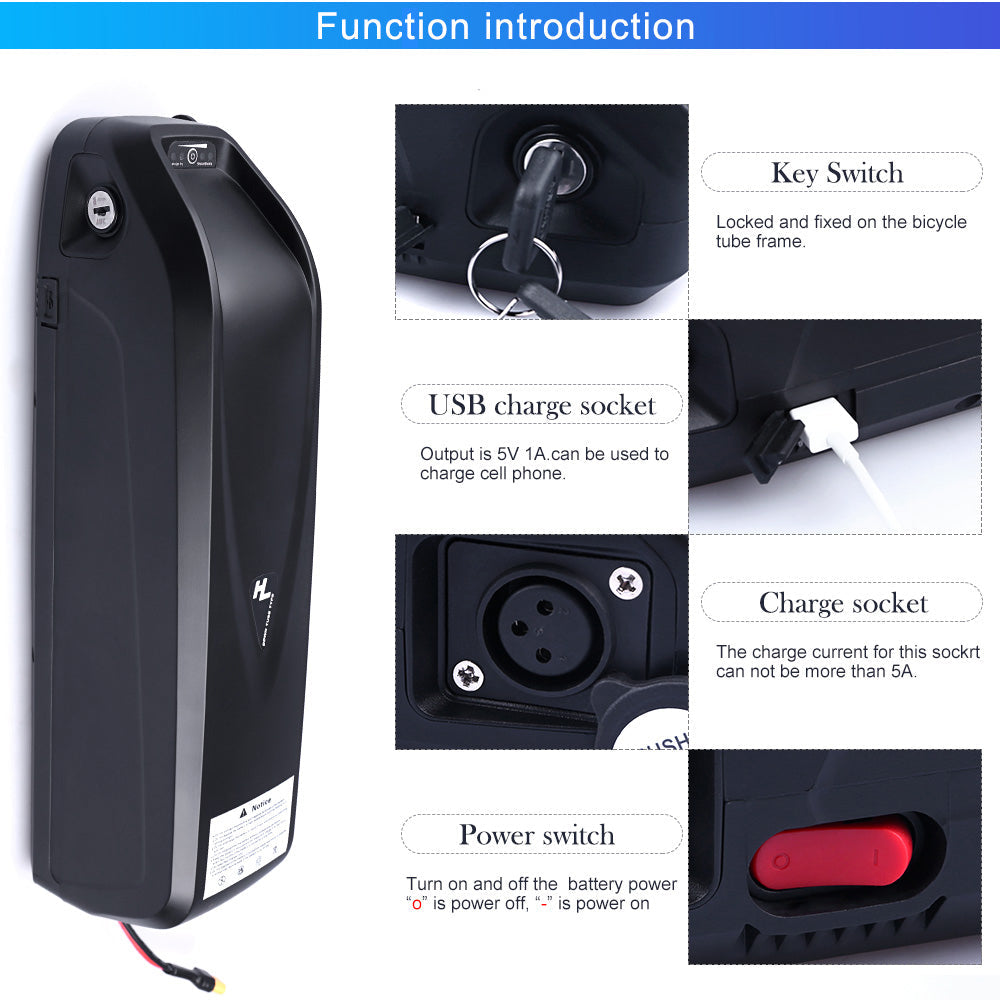

Anti-theft Safe Lock

Every Electro City Bikes Hailong battery has a lock and key. The lock can help to secure the battery and prevent theives from stealing it. The battery is removable for charging away from the bike.

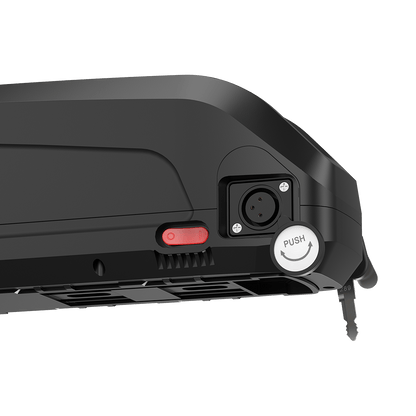

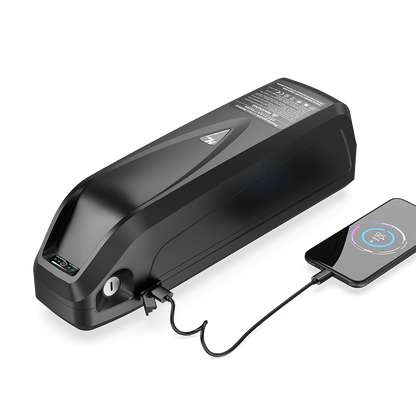

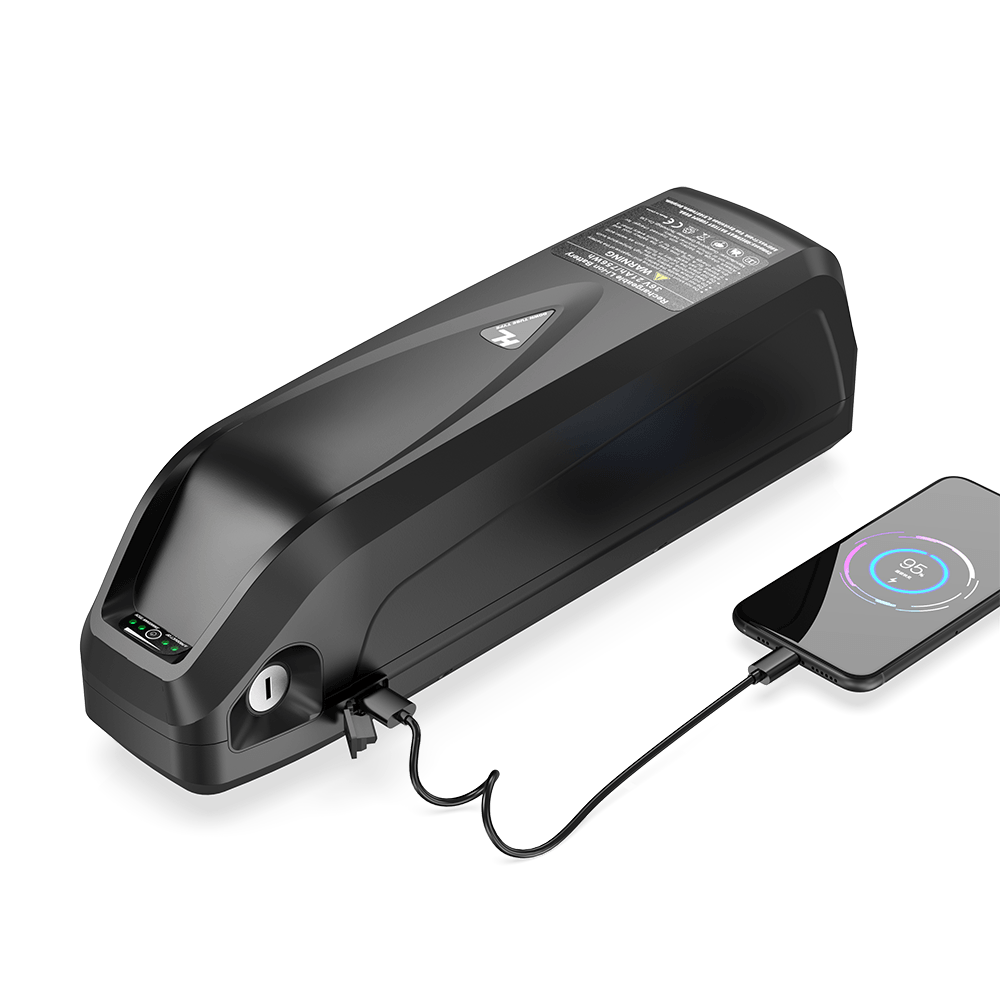

USB Connector Avaliable

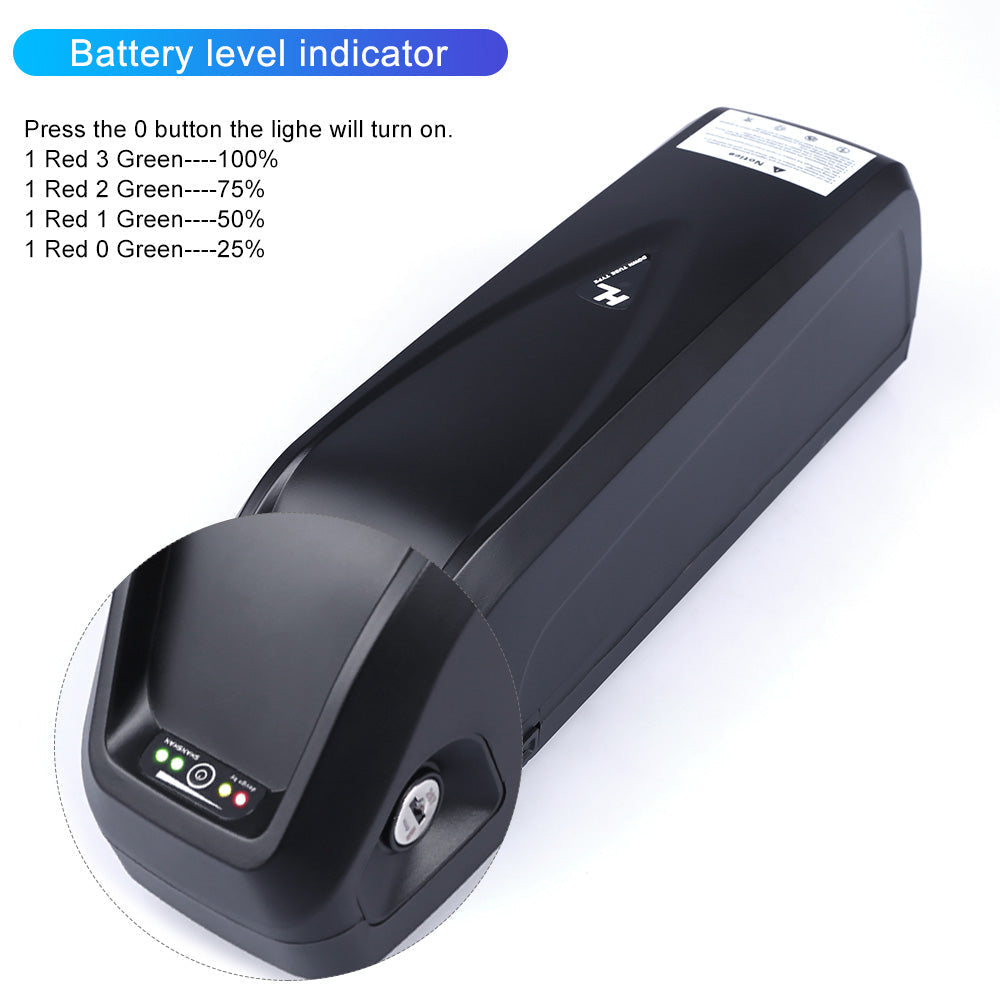

Each Hailong battery is equipped with a USB port, which can charge your mobile phone or other devices. At the same time, you can judge the power of the battery through the indicator light of the battery. 1 Red+3 Green (100%), 1 Red+2 Green (75%), 1 Red+1 Green (50%), 1 Red+0 Green (25%), it means you need to charge the battery.

Other Battery Options

Electro City Bikes also provide other battery for Bafang eBike conversion kits.

• HAILONG Series (36.8*9.1*11.1cm/14.48*3.58*4.37inch): 36V 15.6 Ah, 36V 17.4 Ah, 36V 21.0 Ah (LG 3500mAh) Cell, 48V 13Ah, 48V 17.5Ah (LG 3500mAh Cell).
• HAILONG Max (G80) Series (36.6*9.1*12.7cm/14.4*3.58*5inch): 36V 20Ah, 36V 25Ah, 48V18Ah, 48V 19.2Ah, 48V 20Ah, 52V 14.0Ah.
• HAILONG Parrot Series (36.8*9.5*12.5cm/14.56*3.7*4.72inch): 52V 19.2Ah (LG Cell).

Tips for Riding eBike

Specification:

• Rated Volt: 52 (V)
• Rated Capacity: 14.0 (Ah)
• Battery Cell: 3500mah [LG/Samsung]

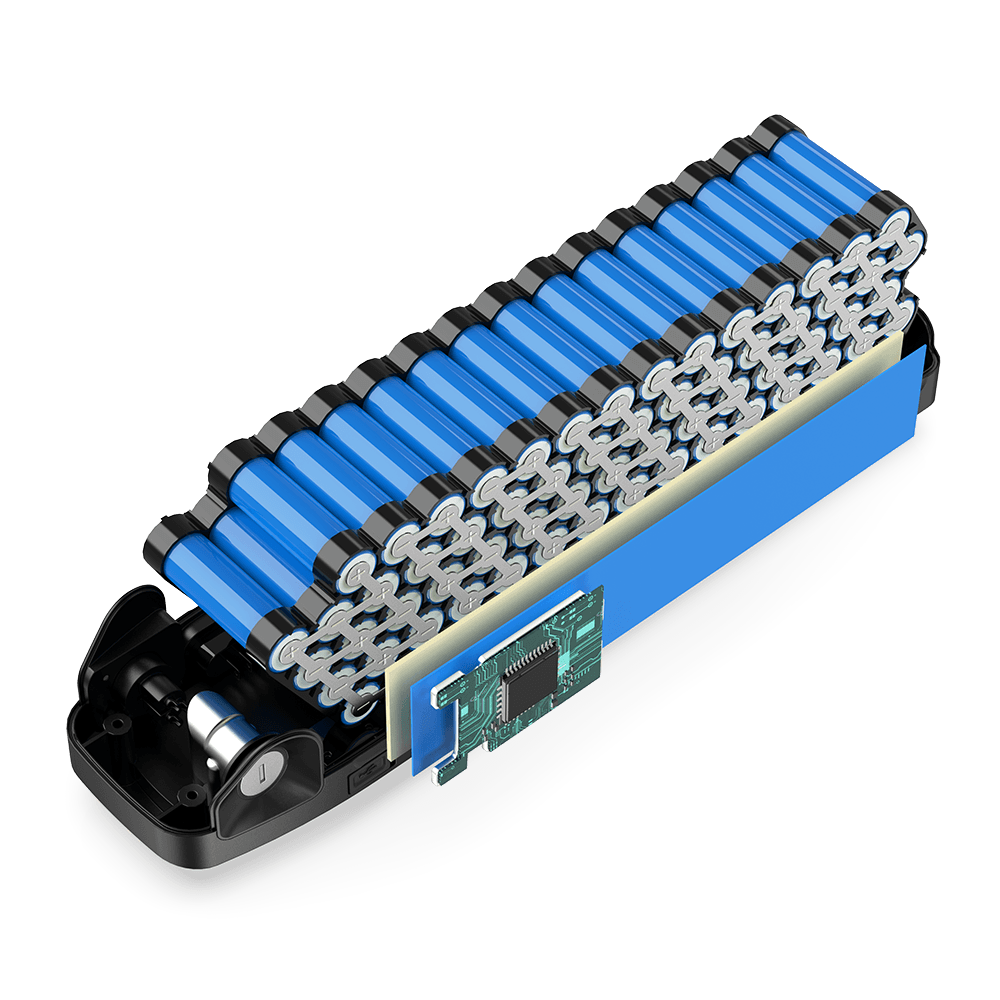

• Cell Arrangement: 14s4p
• Battery Size: 366*91*127 (mm)
• Battery Weight: 5.0 (kg)
• Max Constant Discharge Current: 30 (A)
• Peak Current: 60 (A)
• Charge Voltage: 58.8 (V)
• Cut-off Voltage: 36.4 (V)
• Way of Charge: CC/CV
• Charging Time: 2000
• Charge Temperature: -15 to 65 (℃)
• Discharge Temperature: -15 to 65 (℃)

Package Include

• 1*eBike Battery
• 1*Charger
• 1*XT 60 Cable
• 1*Waterproof Bag
