500C Color Mini Display Full Color LCD Screen for UART Bafang eBike Kits

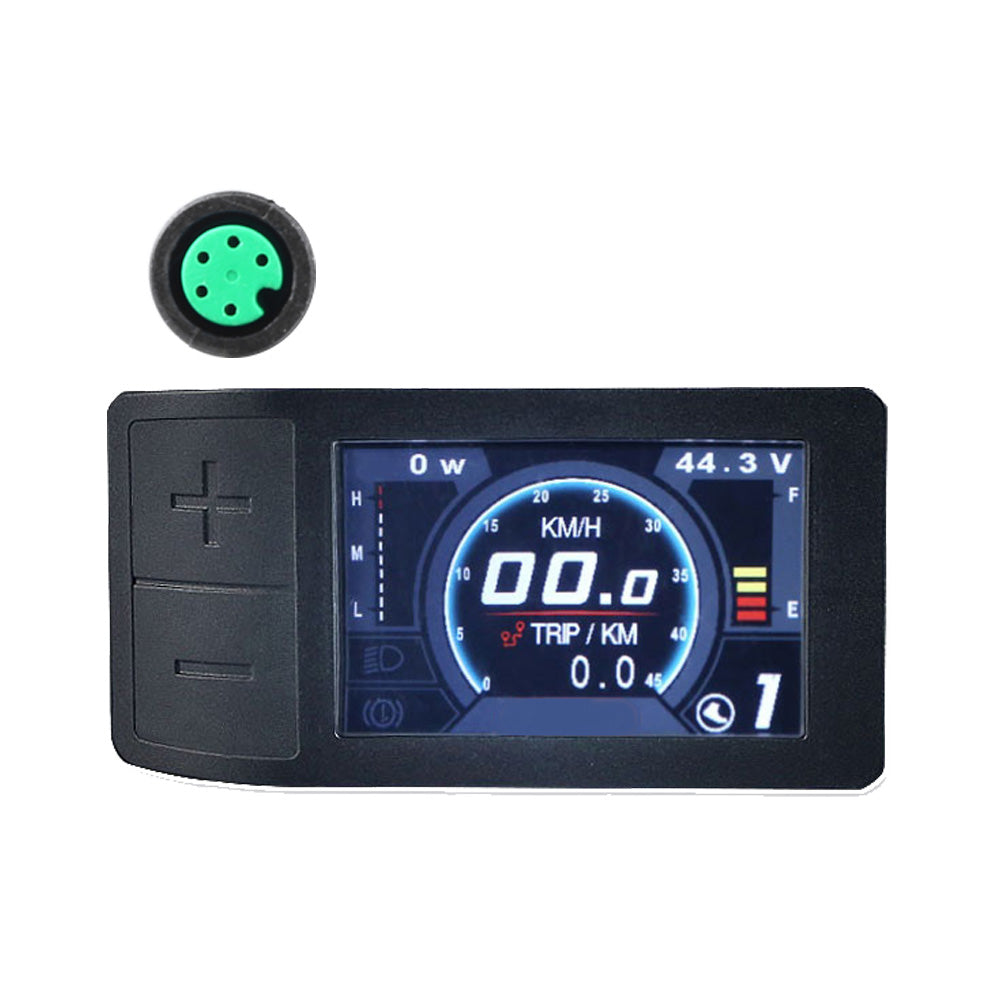

Electro City Bikes 500C Mini Display

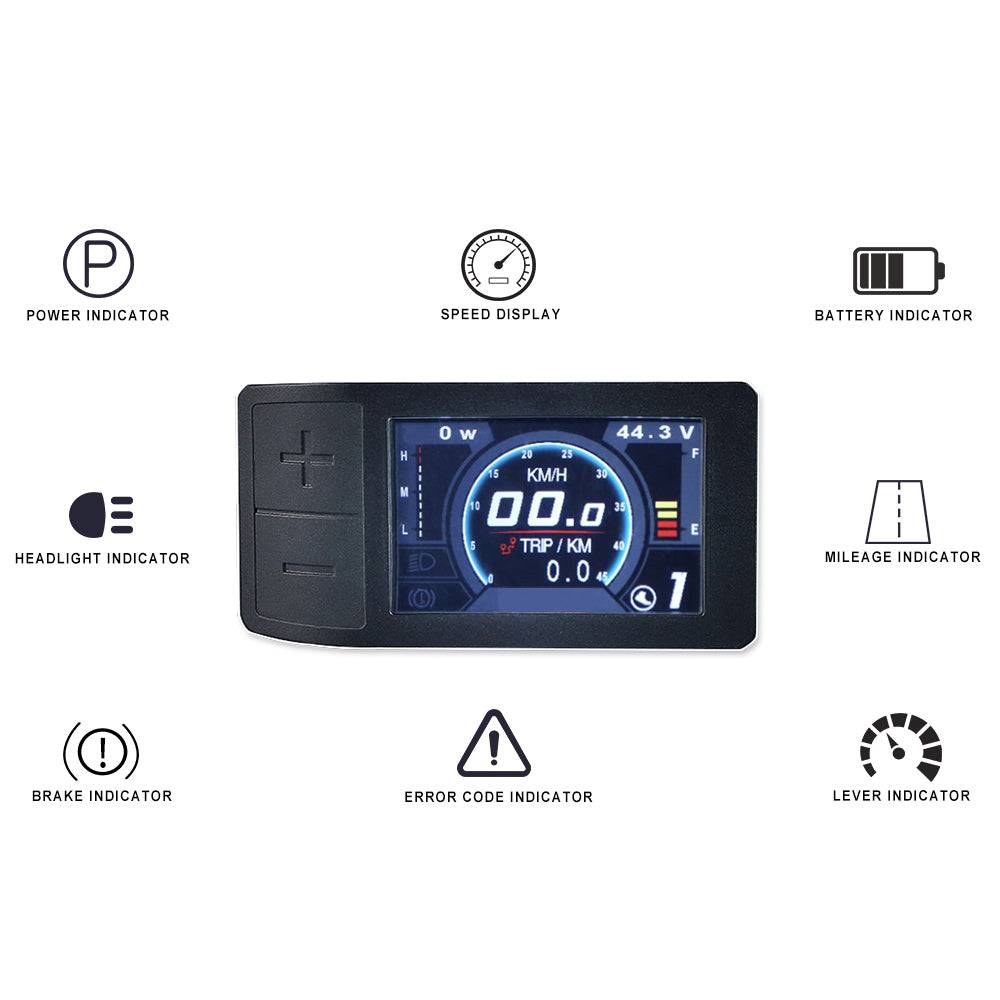

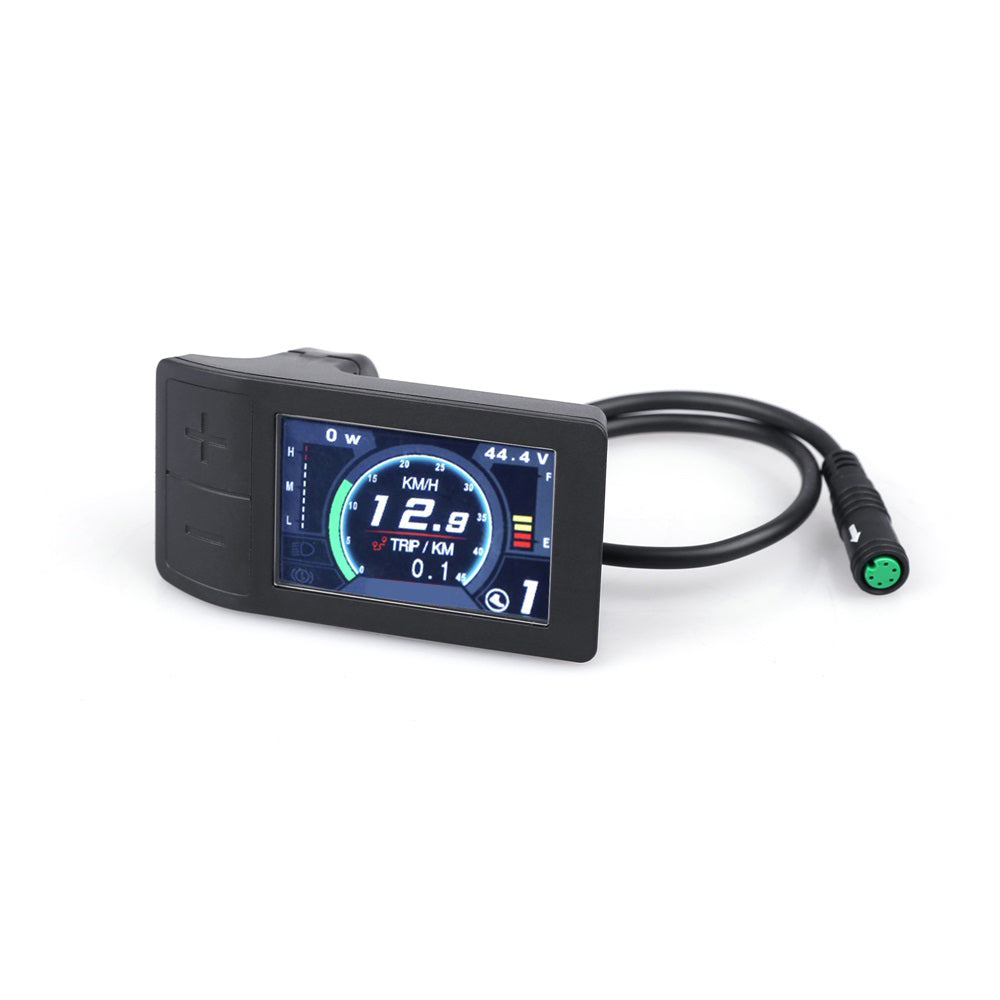

Electro City Bikes 500C is a mini horizontal RGB display, all-in-one compact setup helps users get rid of tangled wires. All useful functions for the eBike system and tour, for example, Speed Display (Mile/KM), Smart Battery Indicator, 9-level Assist, Mileage Indicator, Power Indicator, Speed Limit Value Indicator, Error Code Indicator and Software Upgrade.

Electro City Bikes offers two brands of display, Bafang displays and our own brand Electro City Bikes displays. We highly recommend our customers to consider our meters because our meters have the same performance as Bafang's but the price is much cheaper, it helps you complete the ebike conversion with lower budget.

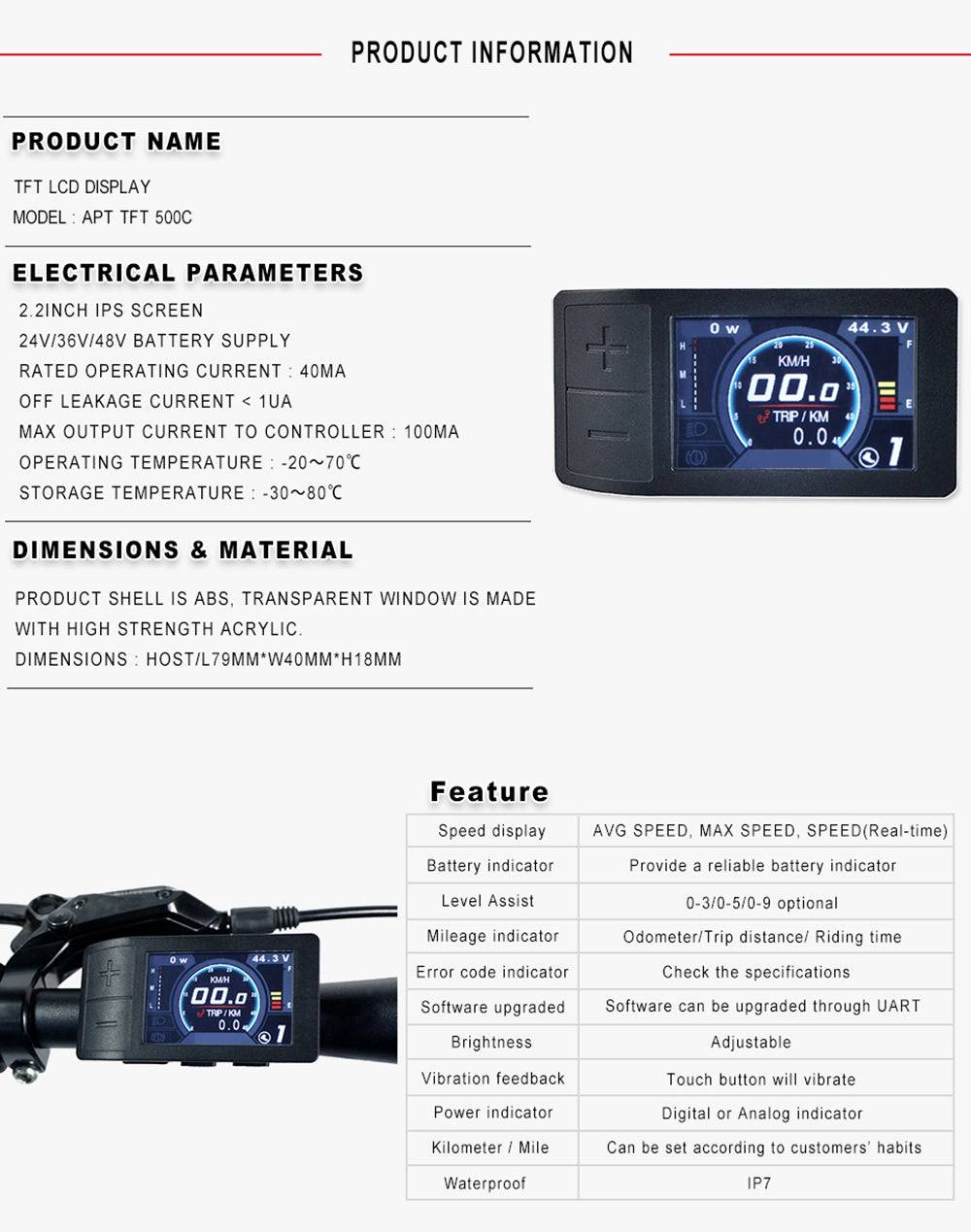

Specification

• Model: Electro City Bikes 500C (Horizontal)
• Screen: TFT LCD (Color)
• Application: BBS01B/BBS02B/BBSHD/HUB

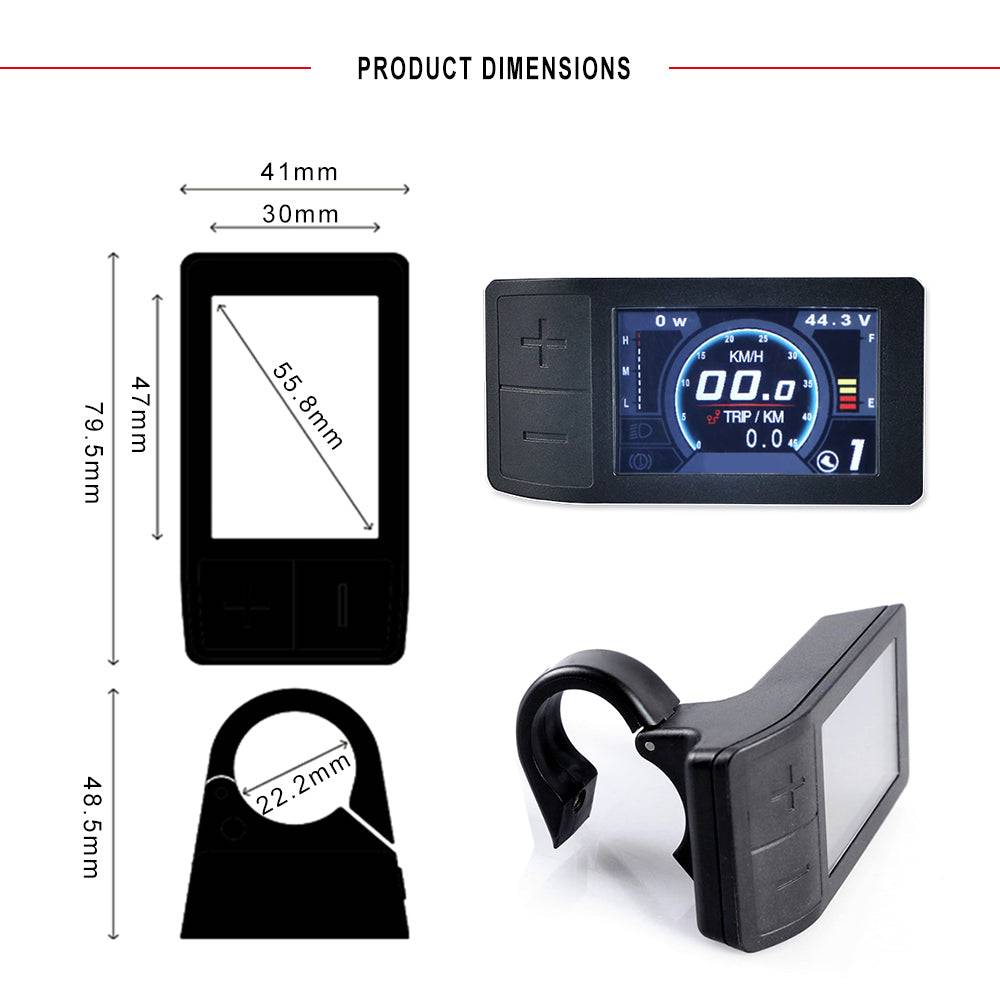

• Size: 2.2 inch
• Operating Temperature: -20 to 70°C
• Material: ABS IP Rate: IP65

Setting Mode

• *Protocol: UART
• Speed (Mile/Kilometer): AVG/MAX/Real-time
• Battery Indicator: Voltage/Percentage/OFF
• Power Indicator: Real-time/Digital/Analog
• Headlight: On/Off
• Assist Level: 3/5/9
• Mileage Indicator: Odometer/Trip Distance/Clock/Riding time
• Speed Limit(Mile/Kilometer): 10 to 60/99 m/h
• Software Upgraded: Support

User Manual

• Electro City Bikes 500C Display User Manual (EN)
• Electro City Bikes 500C Display User Manual (DE)
