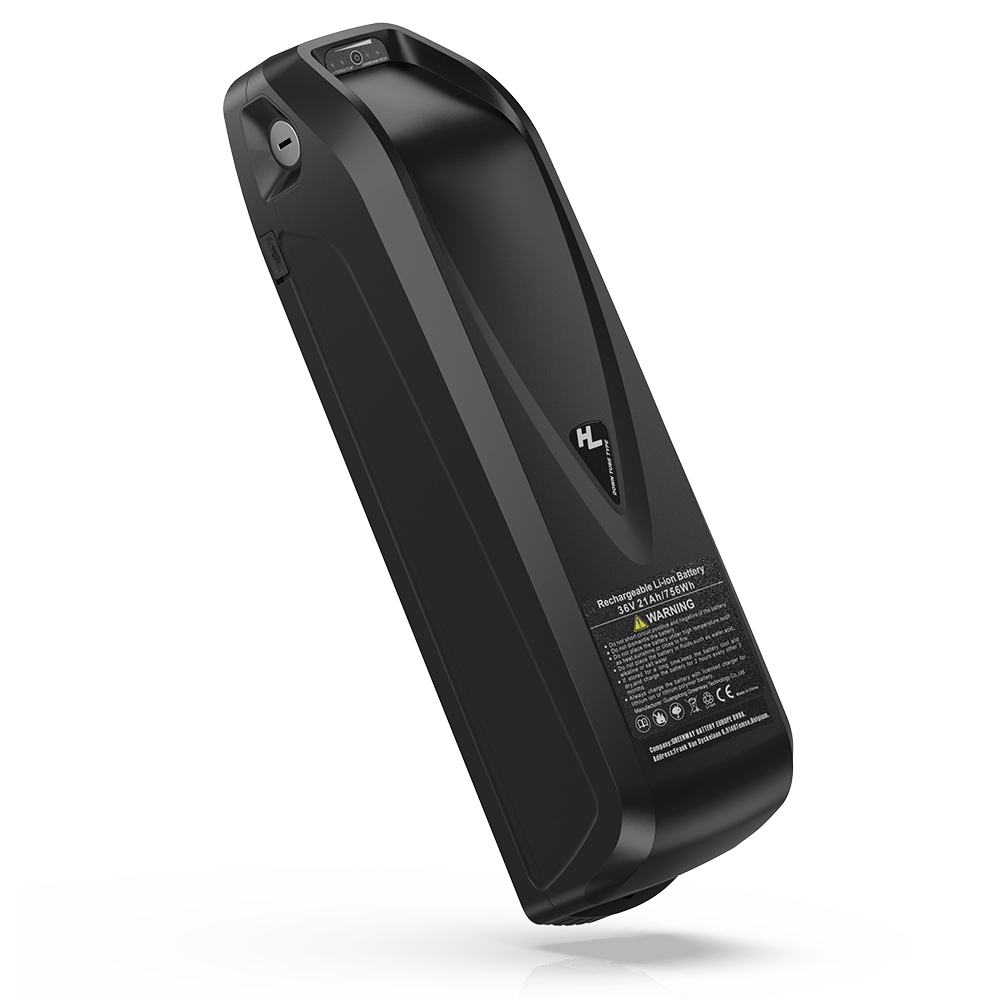

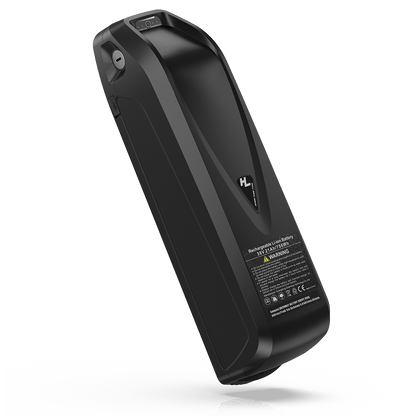

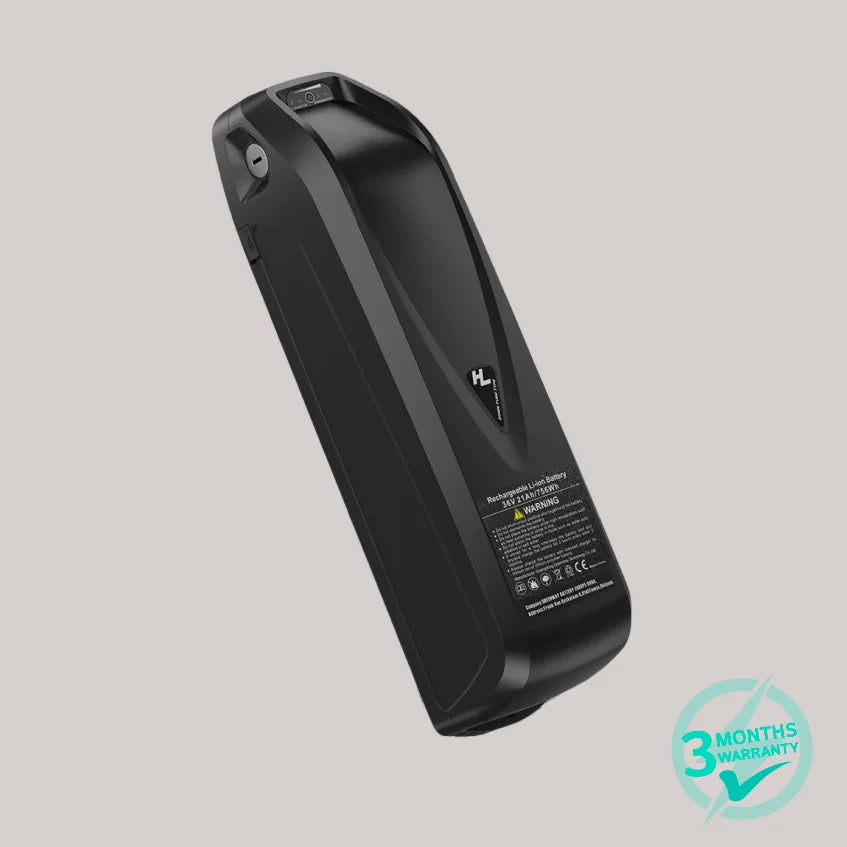

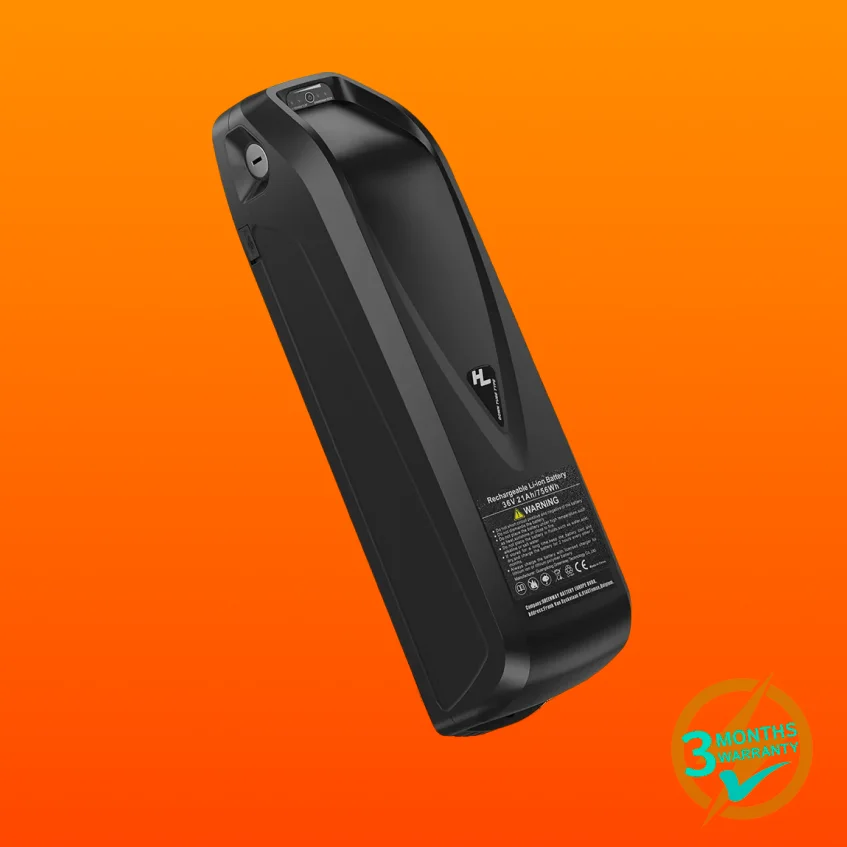

36V 10ah/24Ah Battery with Charger/Keys

Mileage for 36V 10ah/14.4ah/20ah/24ah HaiLong Downtube Battery

Conservative Mileage for 36V 10Ah

• Throttle Mode: 45km (36V/250W), 23km (36V/350W), 20KM (36V/500W)
• PAS Mode: 35KM (36V/250W), 50KM (36V/350W), 60KM (36V/500W)

Conservative Mileage for 36V 14.4Ah

• Throttle Mode: 50km (36V/250W), 45km (36V/350W), 40KM (36V/500W)
• PAS Mode: 100km (36V/250W), 90km (36V/350W), 80KM (36V/500W)

Conservative Mileage for 36V 20Ah

• Throttle Mode: 60km (36V/250W), 55km (36V/350W), 50KM (36V/500W)
• PAS Mode: 120km (36V/250W),110km (36V/350W), 100KM (36V/500W)

Conservative Mileage for 36V 24Ah

• Throttle Mode: 60km (36V/250W), 55km (36V/350W), 50KM (36V/500W)
• PAS Mode: 120km (36V/250W),110km (36V/350W), 100KM (36V/500W)

**Mileage estimation is a close approximation as there are many variables in mileage expectation.

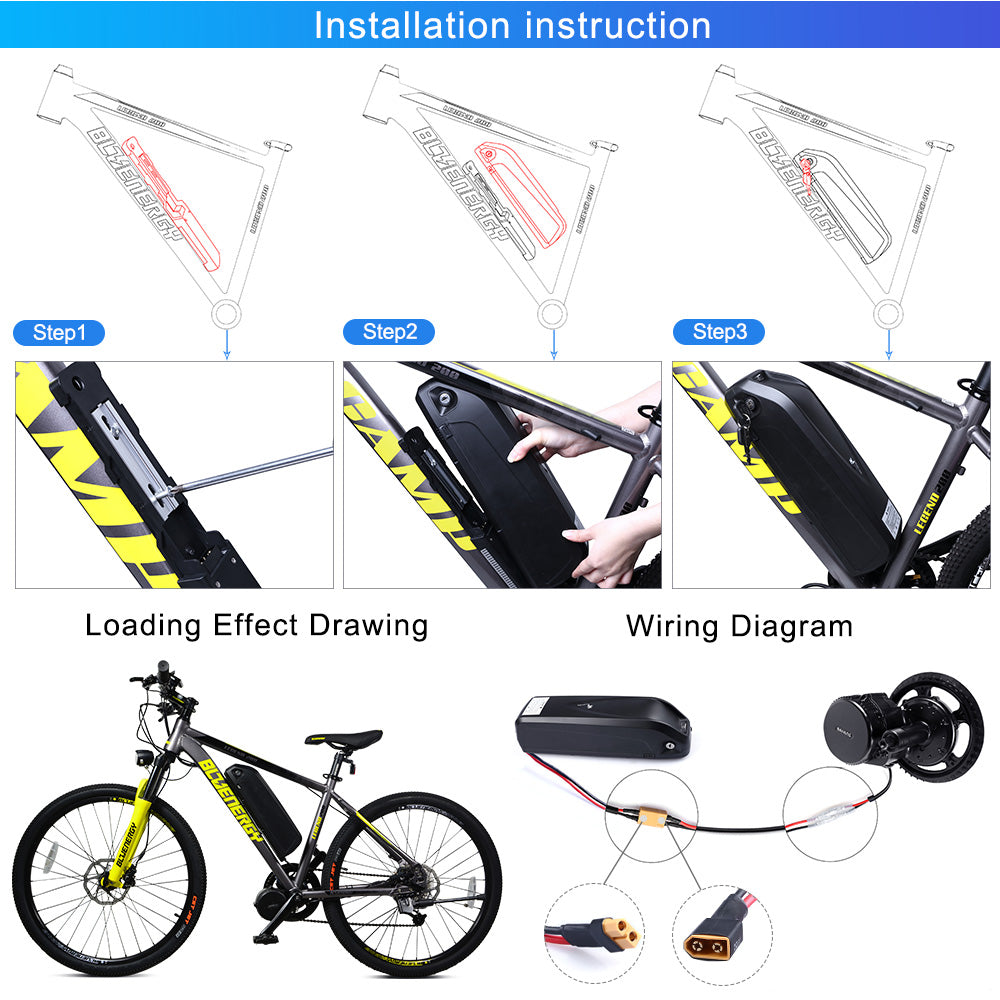

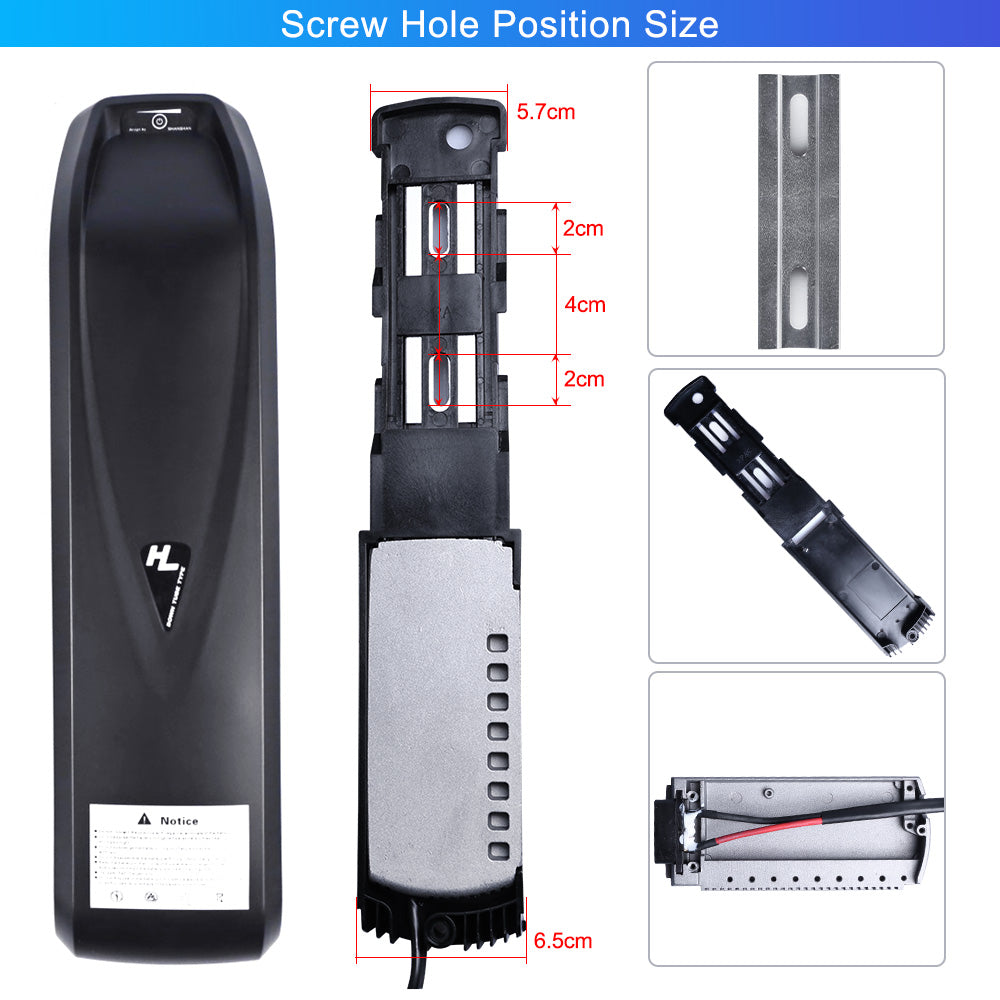

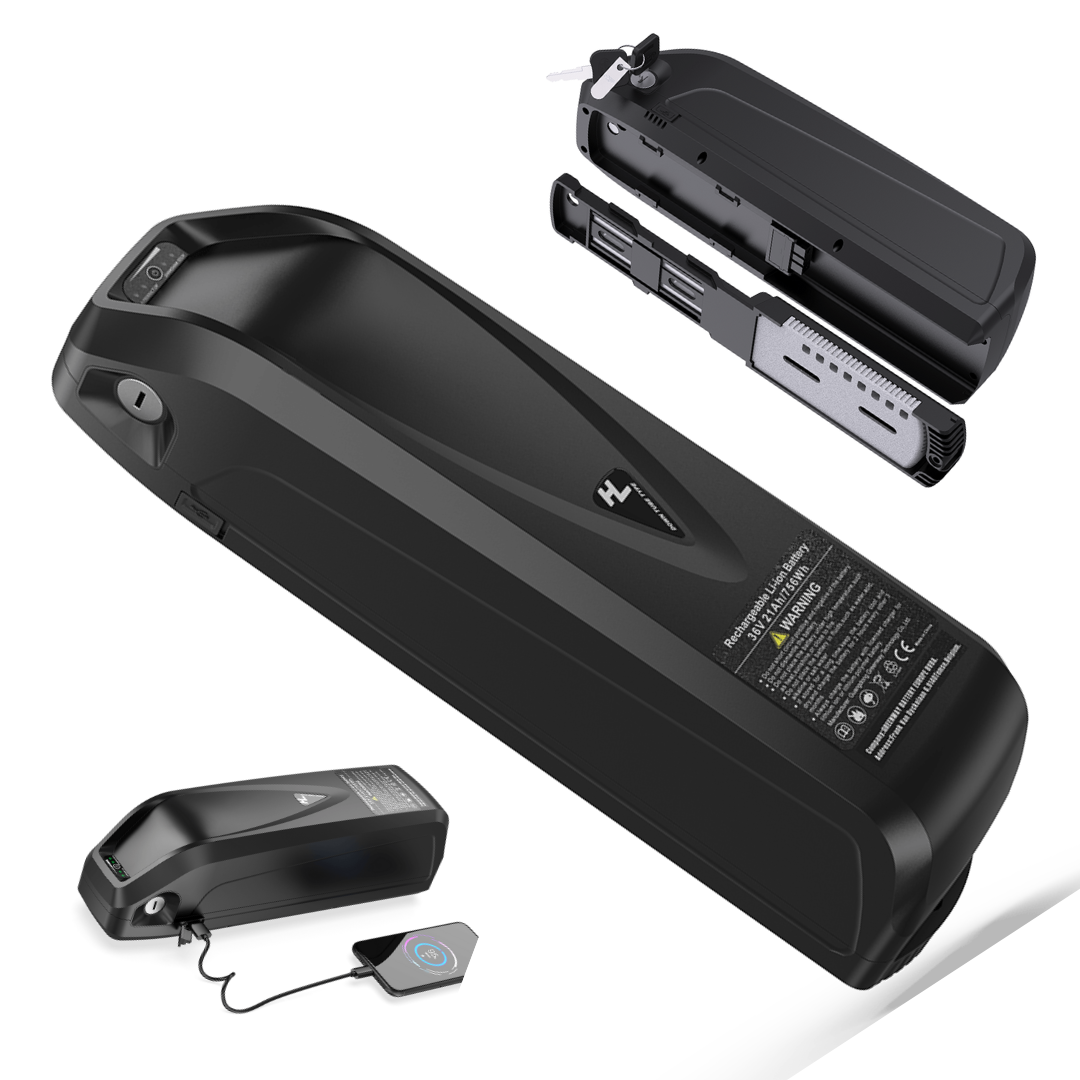

Battery Installation Measurement

• Battery and Socket (inch): 14.46*3.54*4.37

File: Hailong_battery_installation_measurement

Suitable Motor

If you want to buy a Electro City Bikes  eBike battery as replacement, please know that Electro City Bikes  battery can be the power source for the BAFANG UART protocol mid drive conversion kits or BAFANG hub kits. But it is not suitable for BAFANG CAN protocol mid drive motors.

• BBS01B: 36V/250W, 36V/350W;
• BBS02B: 36V/500W.

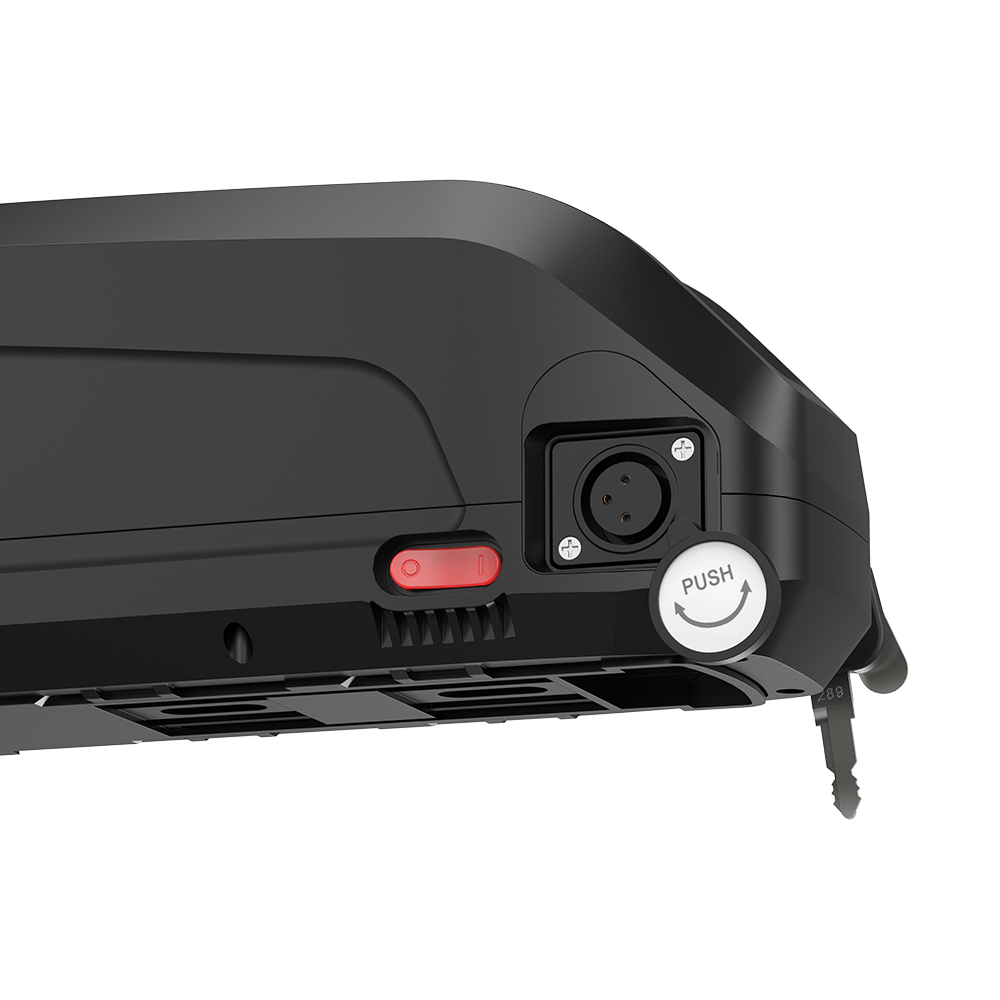

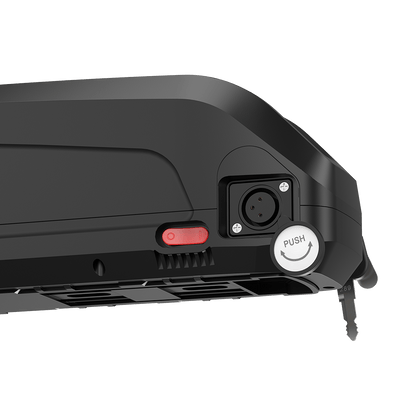

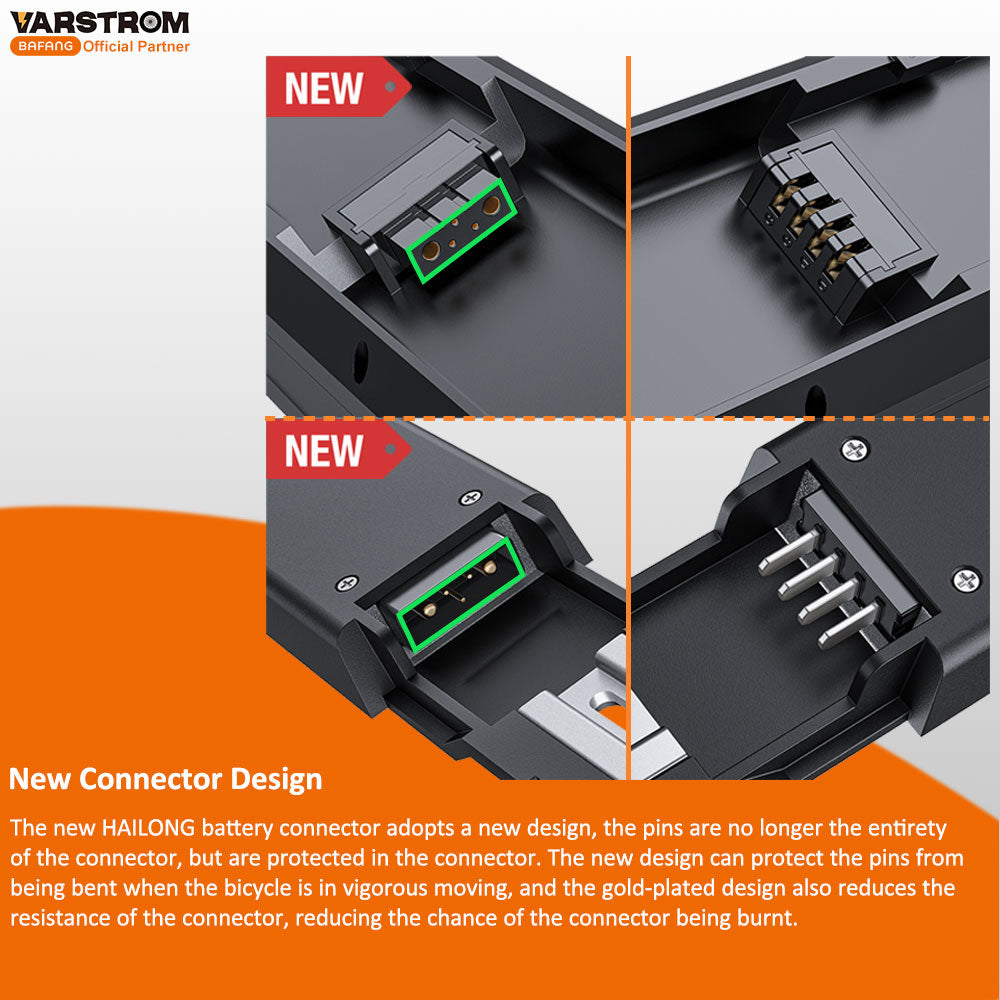

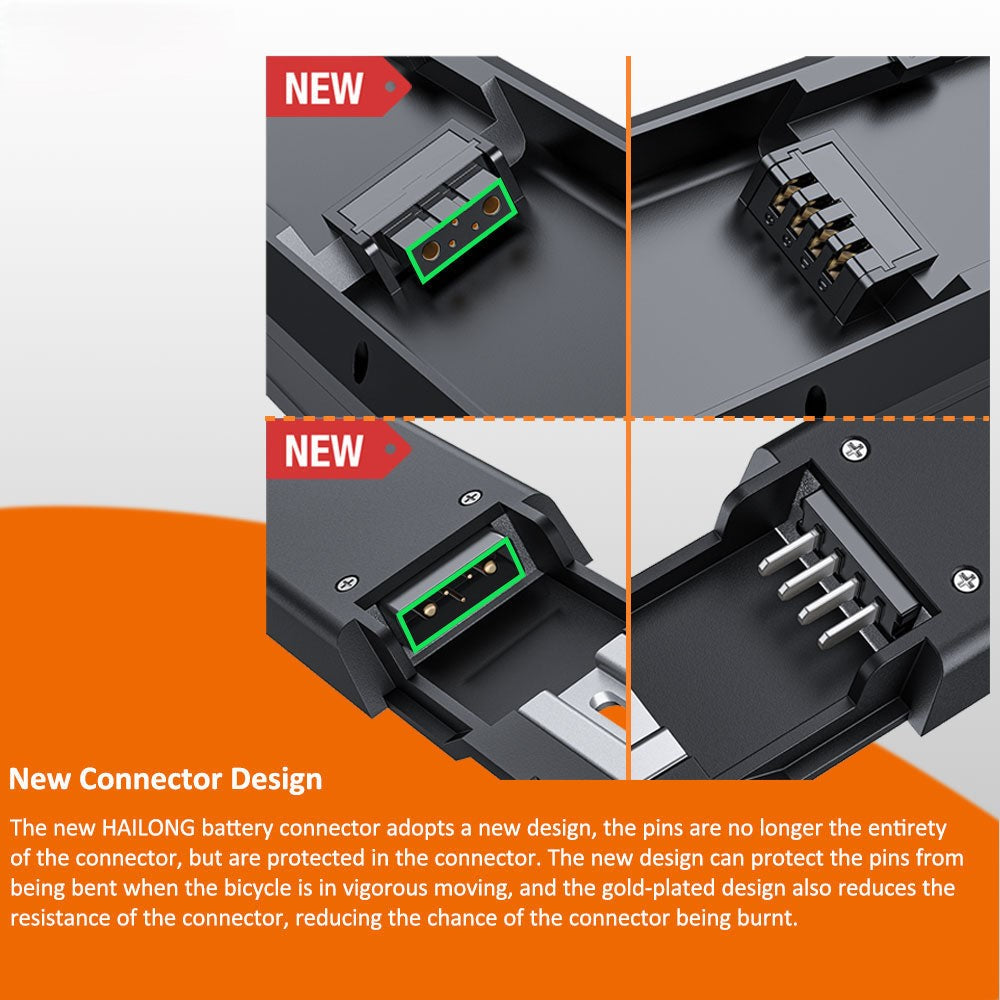

Upgraded Connection Method

The new HAILONG battery connector adopts a new design, the pins are no longer the entirety of the connector, but are protected in the connector. The new design can protect the pins from being bent when the bicycle is in vigorous moving, and the gold-plated design also reduces the resistance of the connector, reducing the chance of the connector being burnt.

Battery Management System

• Overpower Protection
• Over Voltage Protection
• Over Current Protection
• Over Discharge Protection
• Overcharge Protection
• Short Circuit Protection
• Cell Balancing

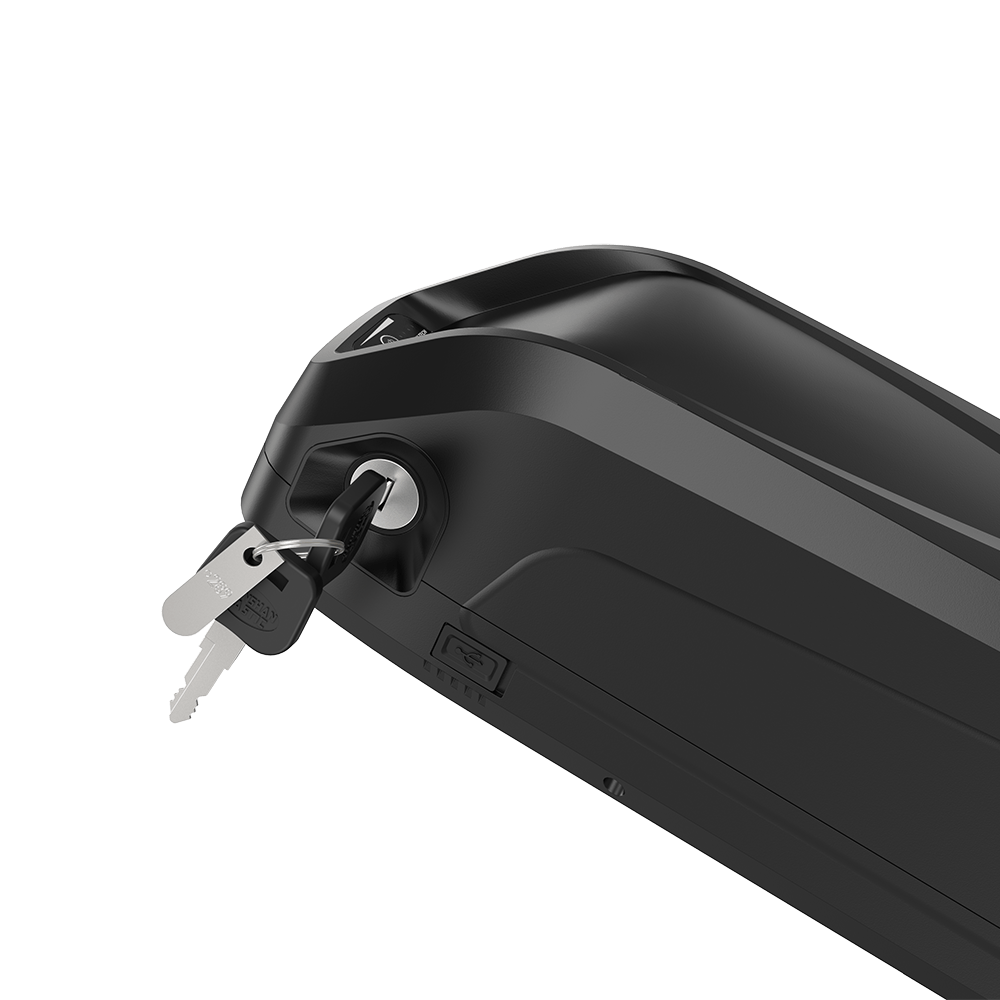

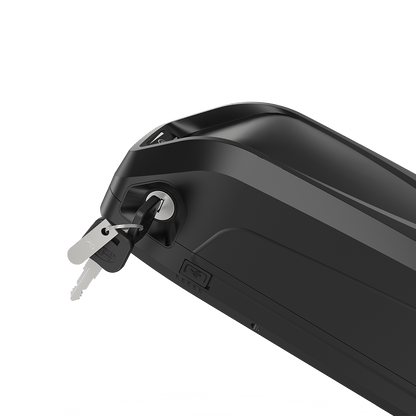

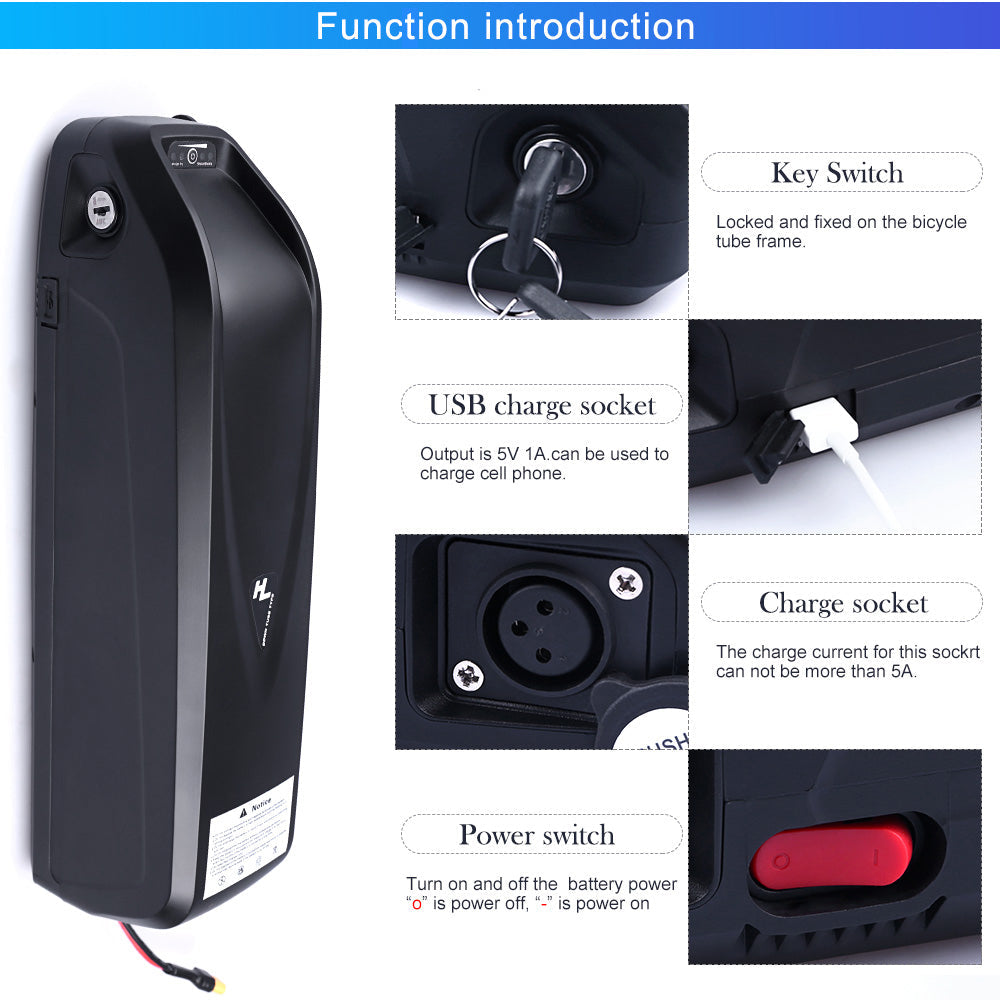

Anti-theft Safe Lock

Ebery Electro City Bikes  Hailong battery has the lock and keys, the lock can help to fix the battery and prevent others from taking the battery, you can use the keys to lock the battery when you install it on the socket and unlock to take the battery for charging.

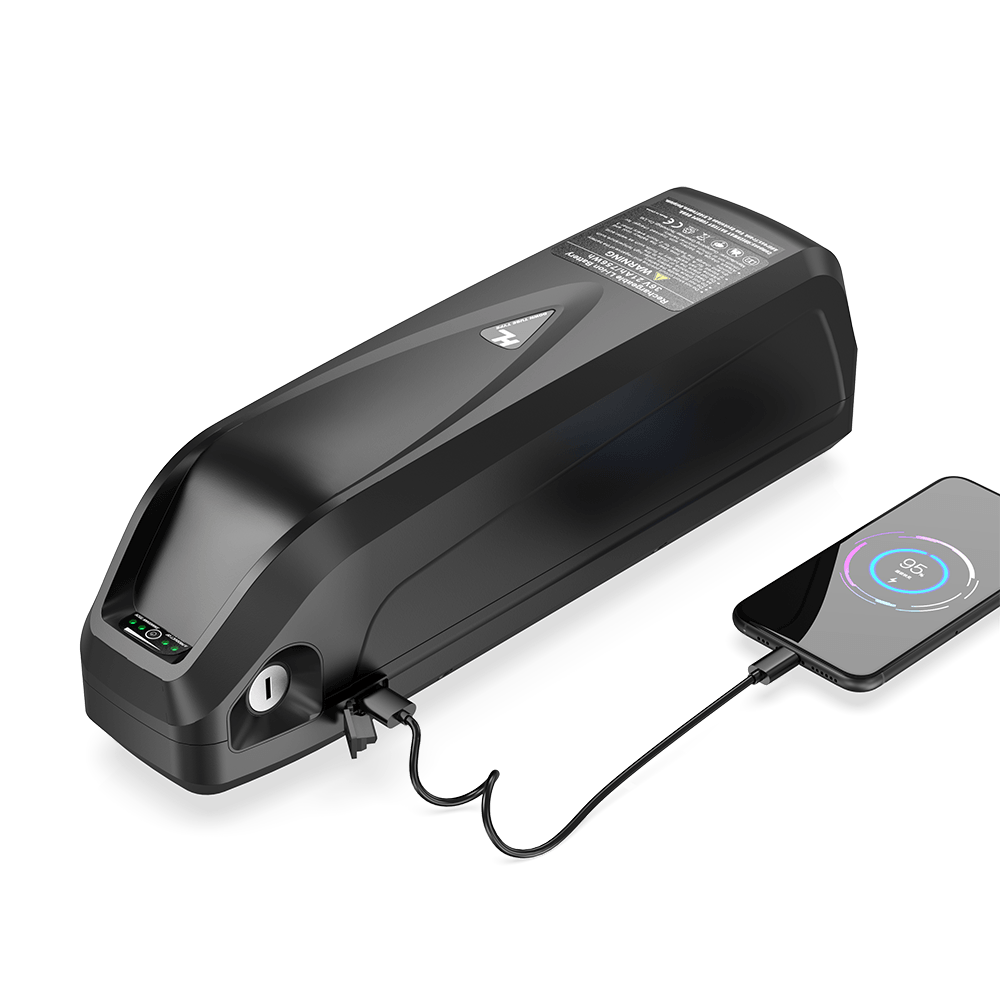

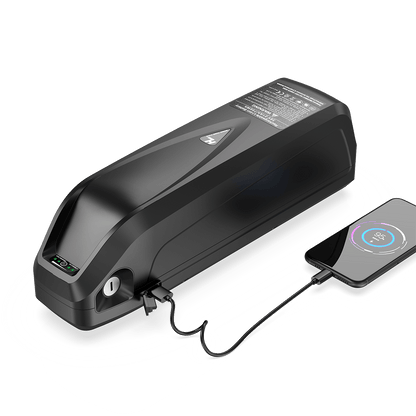

USB Connector Avaliable

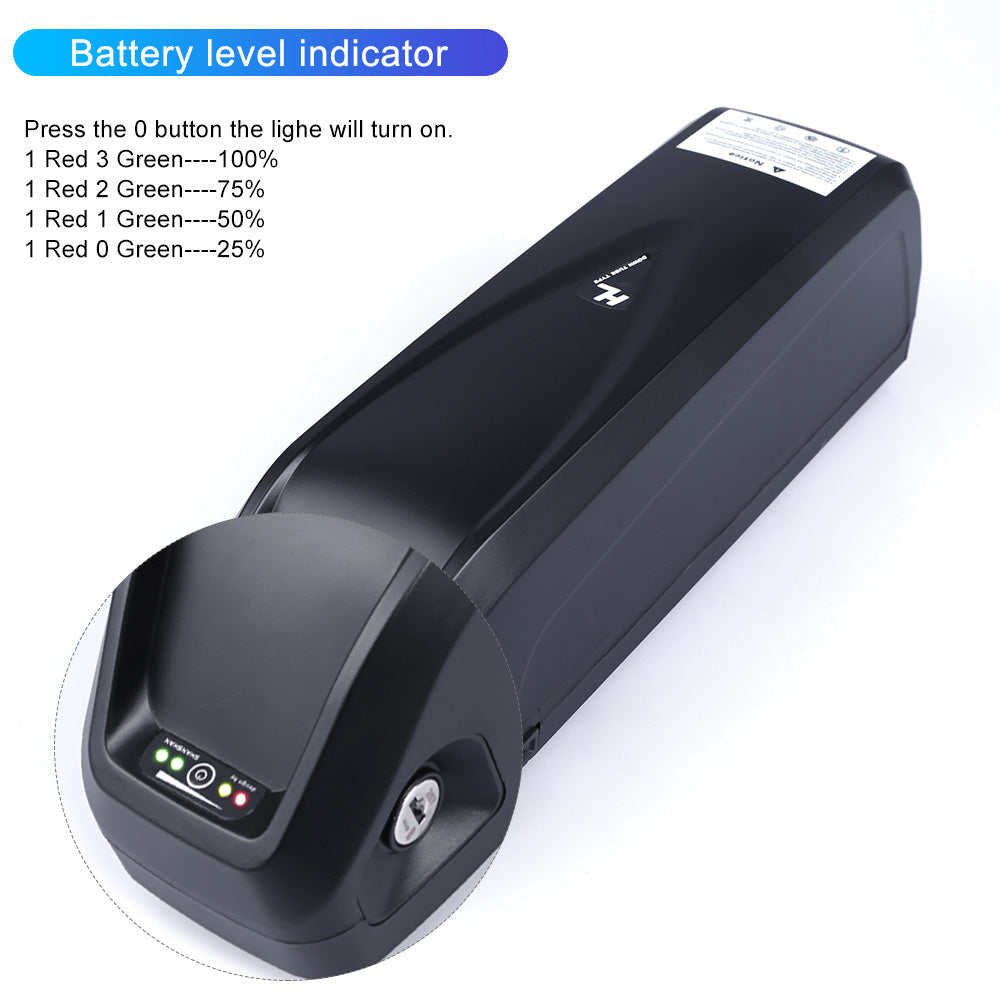

Each Hailong battery is equipped with a USB port, which can charge your mobile phone or other devices. At the same time, you can judge the power of the battery through the indicator light of the battery. 1 Red+3 Green (100%), 1 Red+2 Green (75%), 1 Red+1 Green (50%), 1 Red+0 Green (25%), it means you need to charge the battery.

Other Battery Options

Electro City Bikes  also provide other battery for Bafang eBike conversion kits.

• HAILONG Series (36.8*9.1*11.1cm/14.48*3.58*4.37inch): 36V 10 Ah, 36V 14.4 Ah, 36V 20 Ah , 36V 24 Ah


Tips for Riding eBike

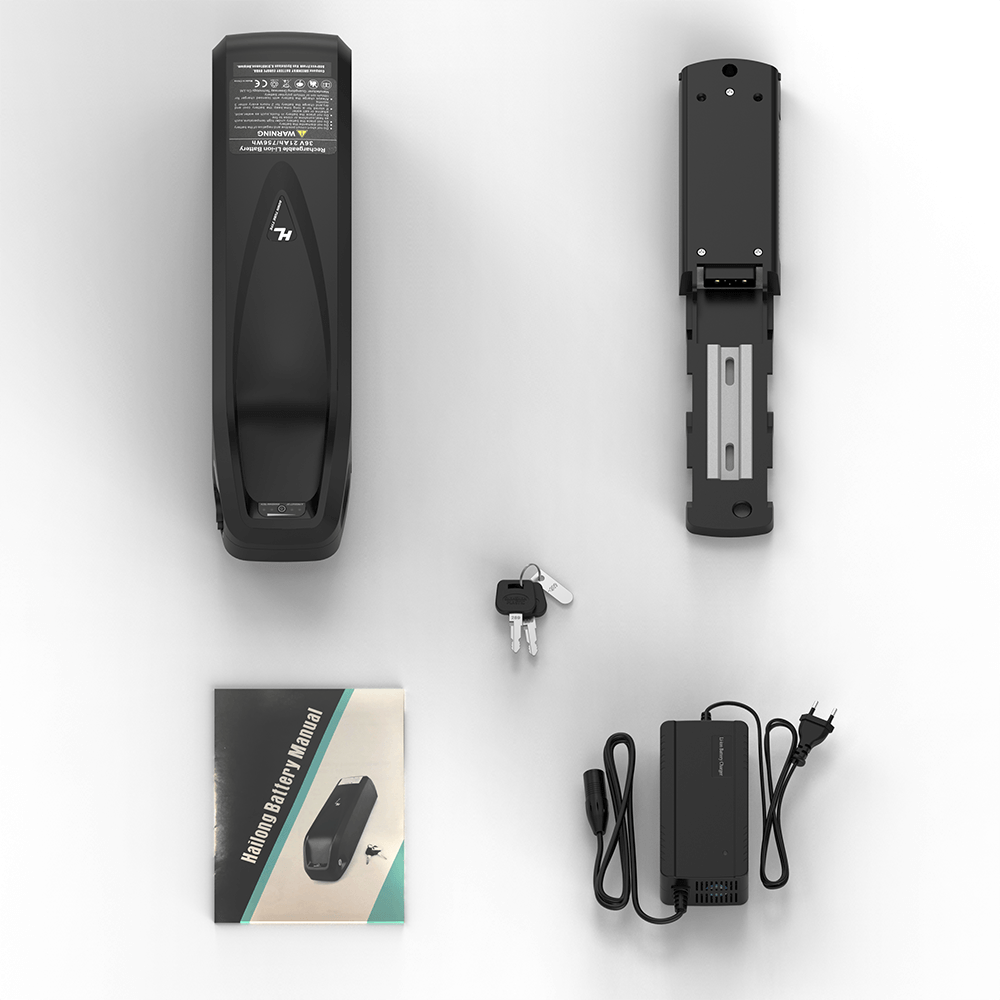

Package Include

• 1*eBike Battery
• 1*Charger
• 1*XT 60 Cable
• 1*Waterproof Bag
