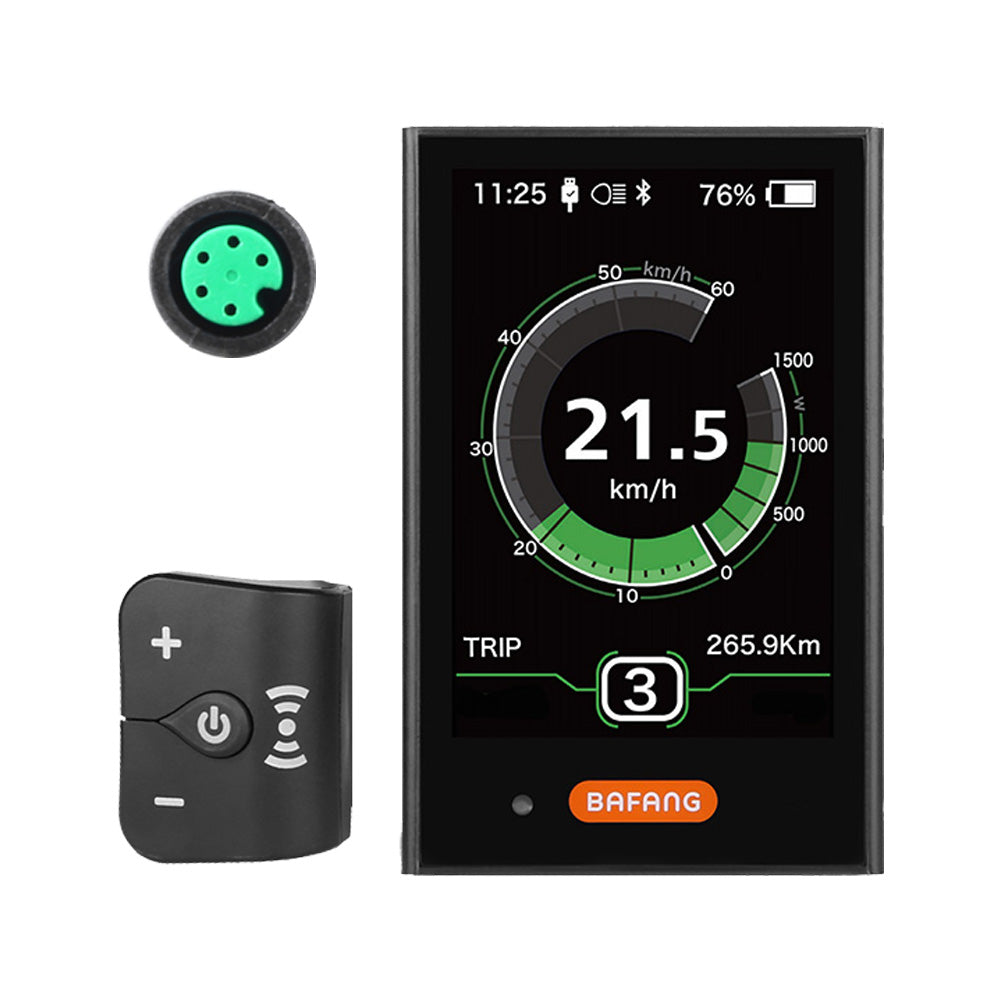

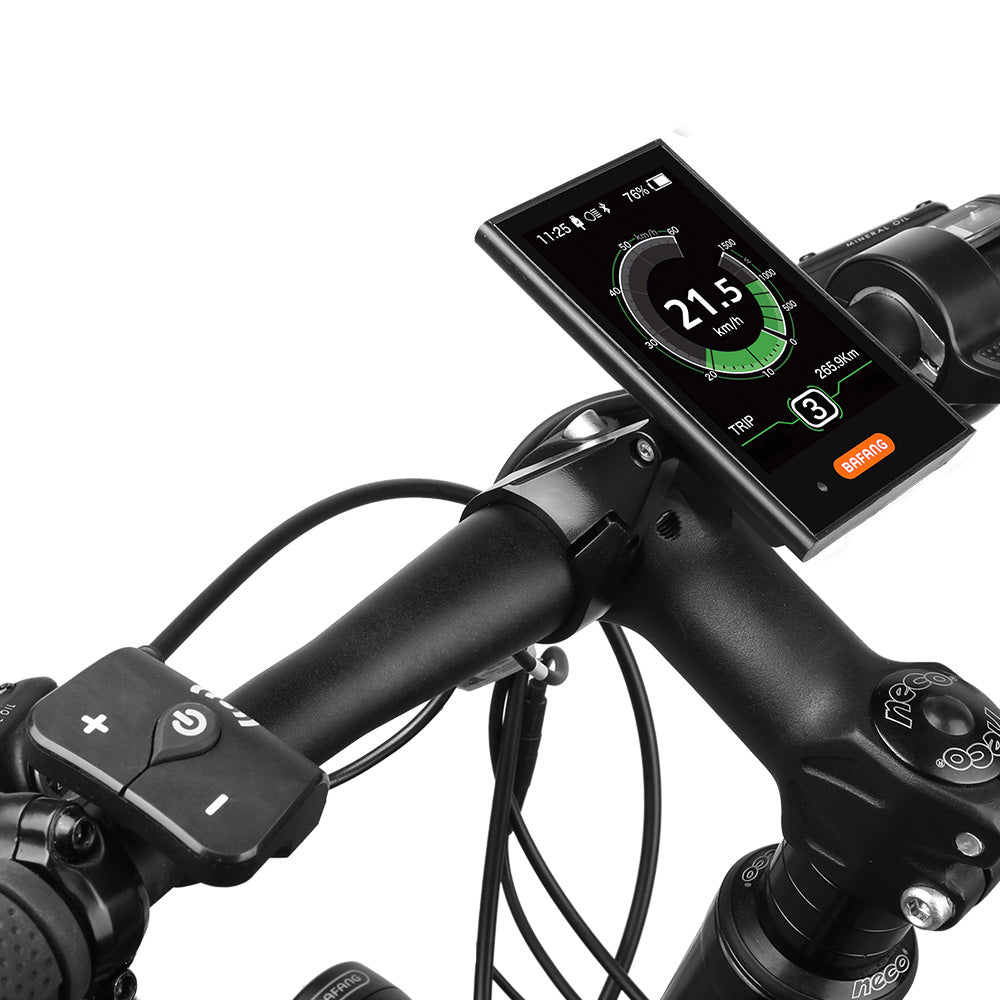

Bafang DPC181 UART Protocol Bluetooth Lcd Display for Bafang eBike Conversion

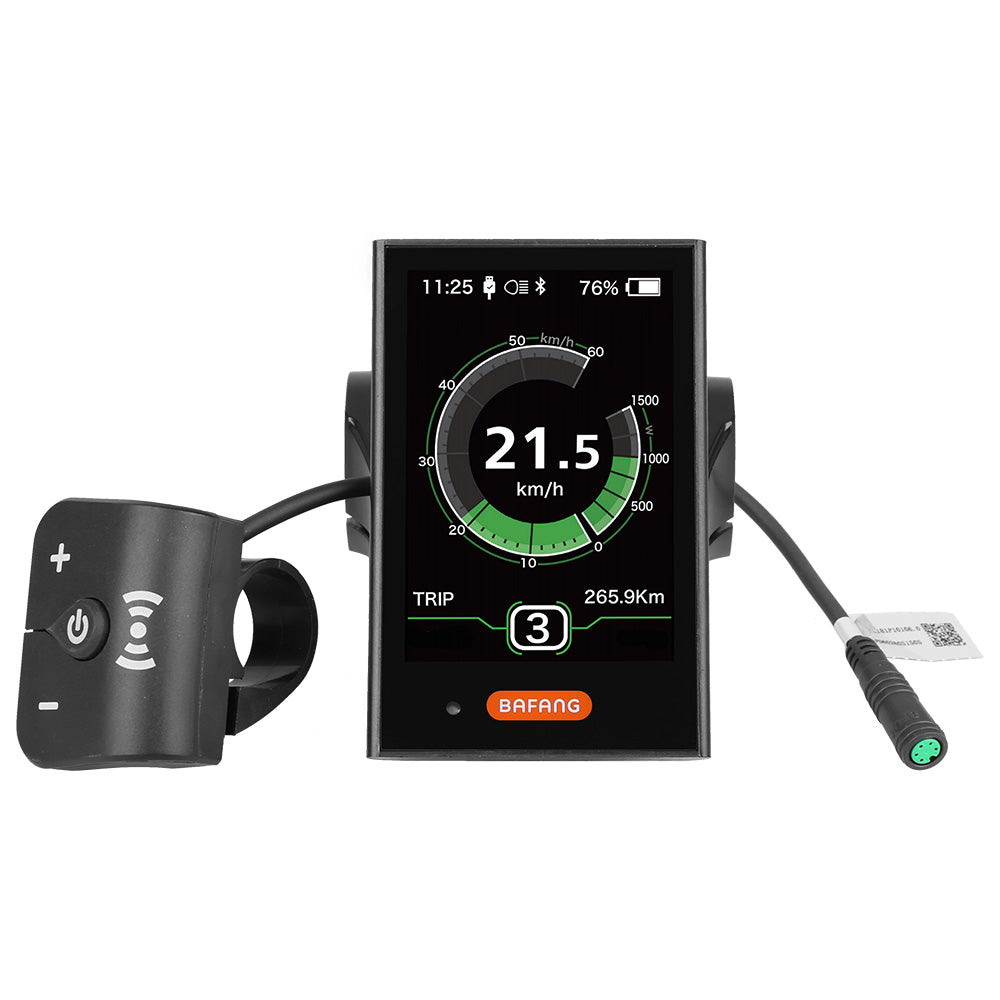

BAFANG DISPLAY- DPC181 DESCRIPTION

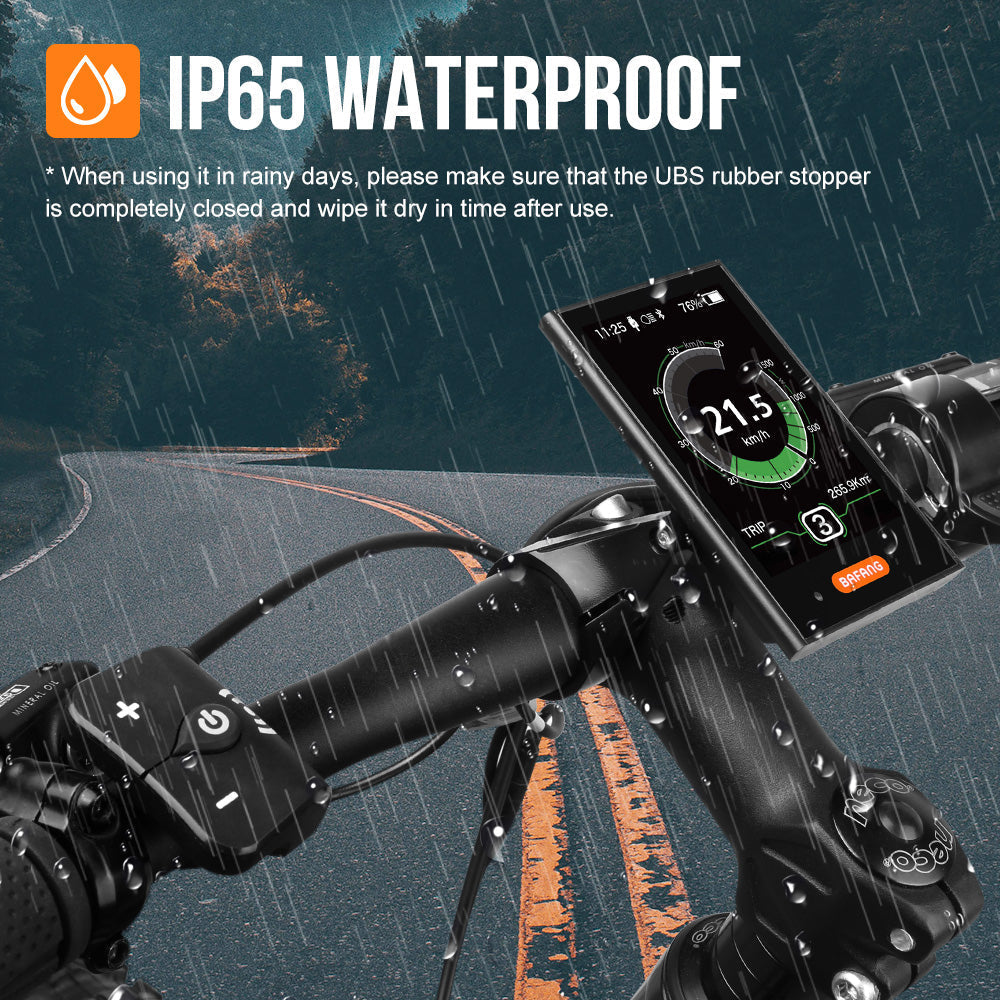

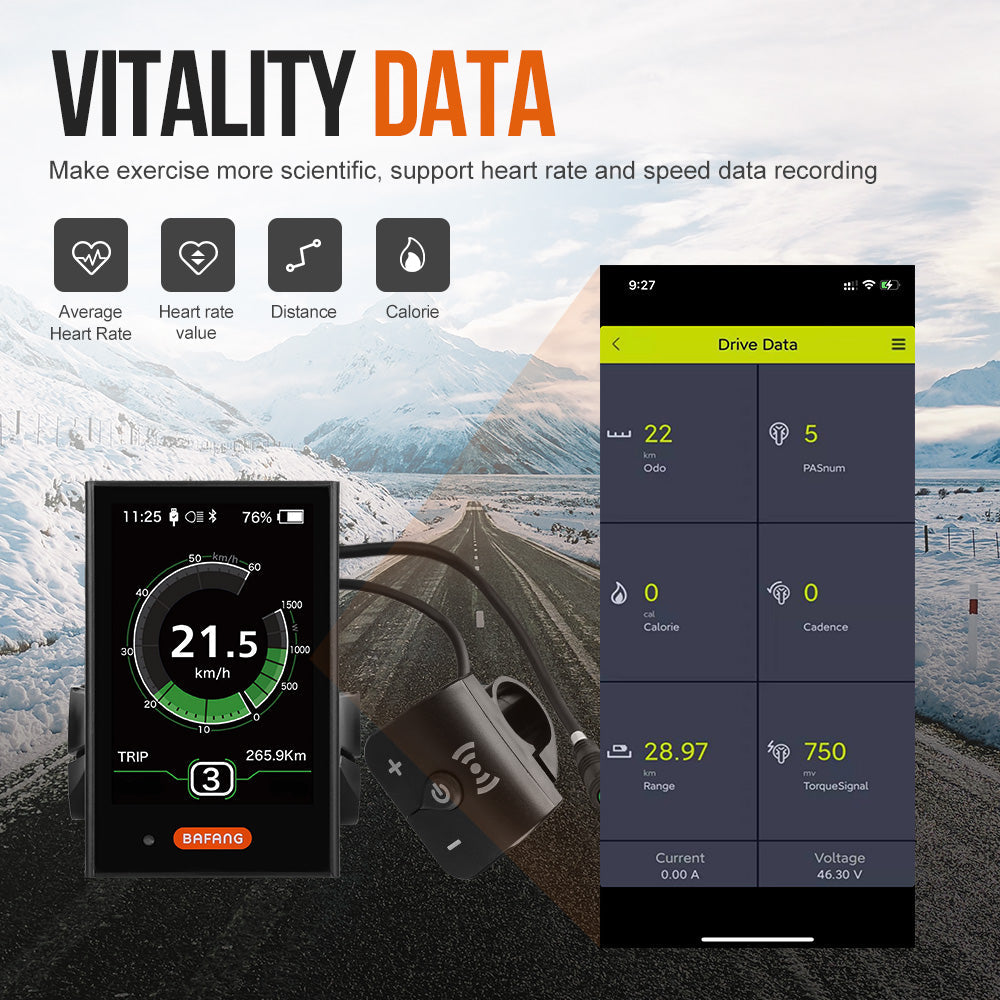

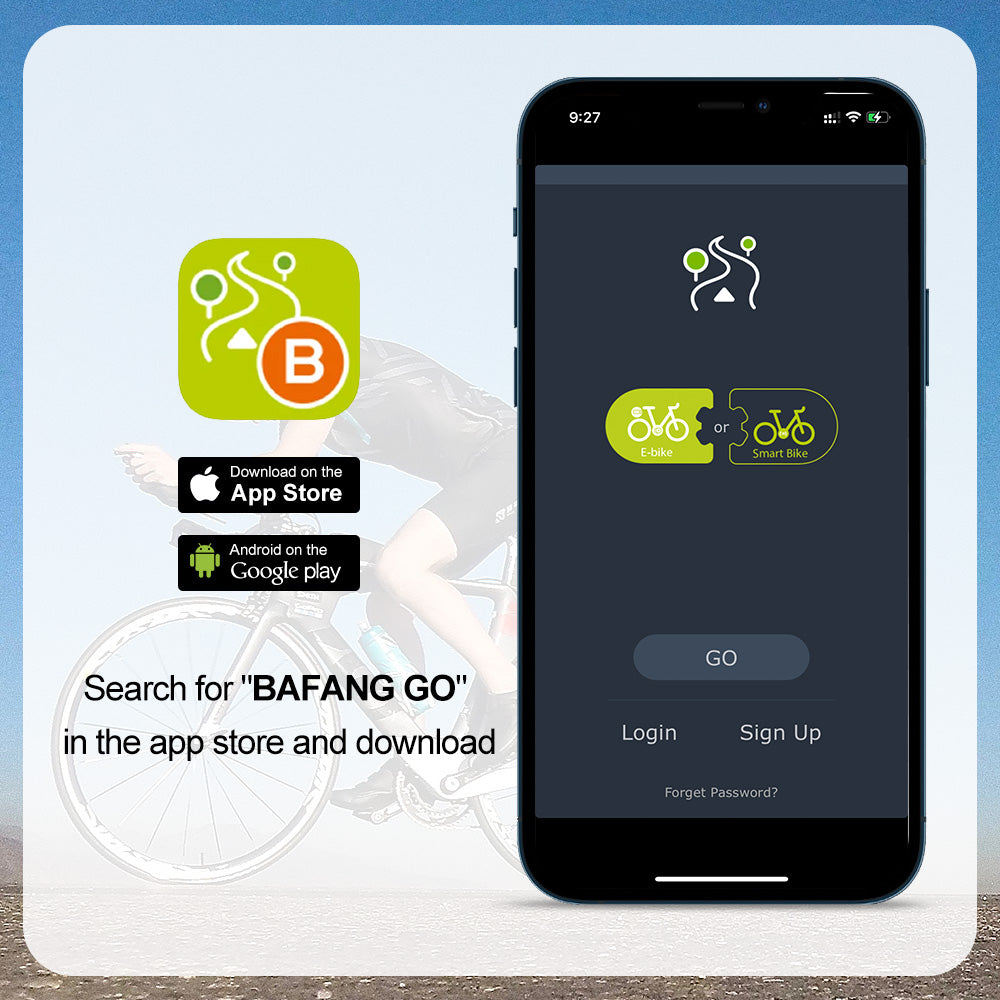

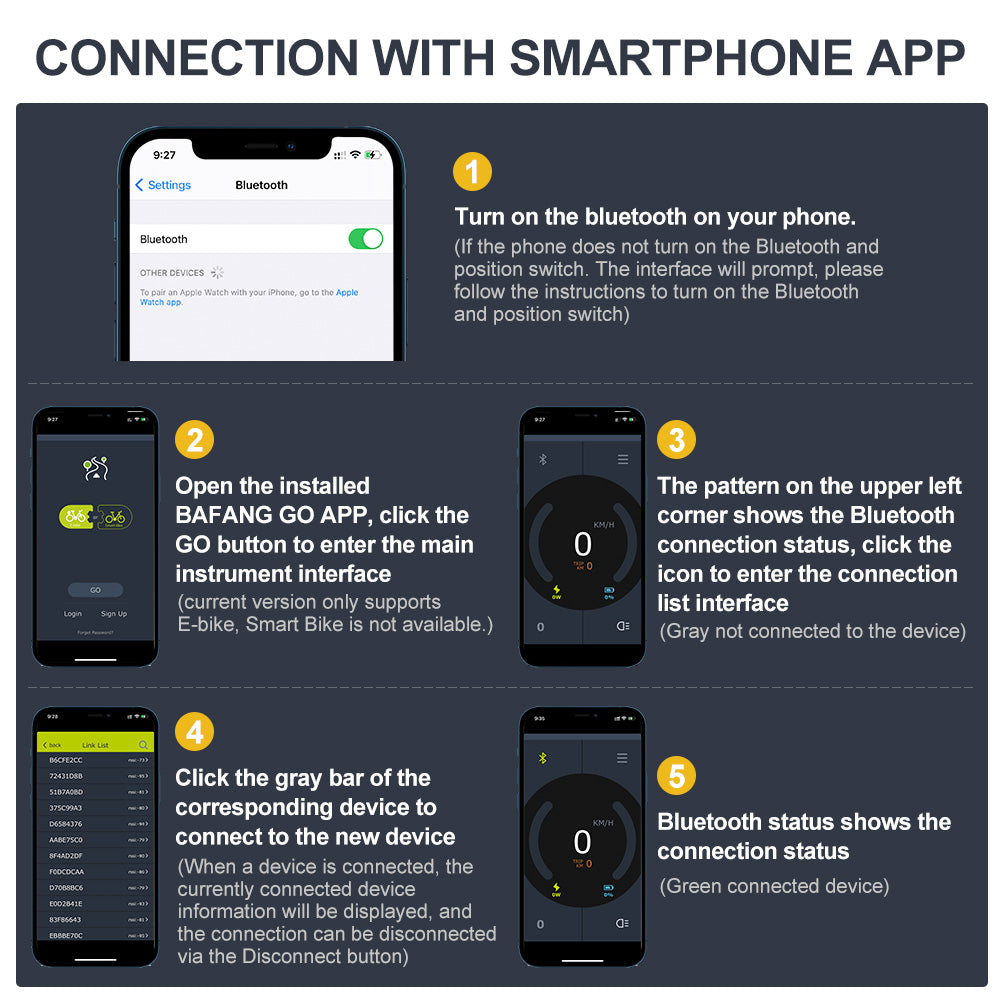

The large high-contrast color matrix BAFANG display-DPC181 ,all data can be seen at a glance, and use of a two-way serial communication protocol, simple operation of the display via the external 5-key keypad, Improve safety while riding, very convenient to operate, and with IPX5 waterproof, to overcome all kinds of bad weather。 and the Bluetooth communication addresses the Bafang GO app

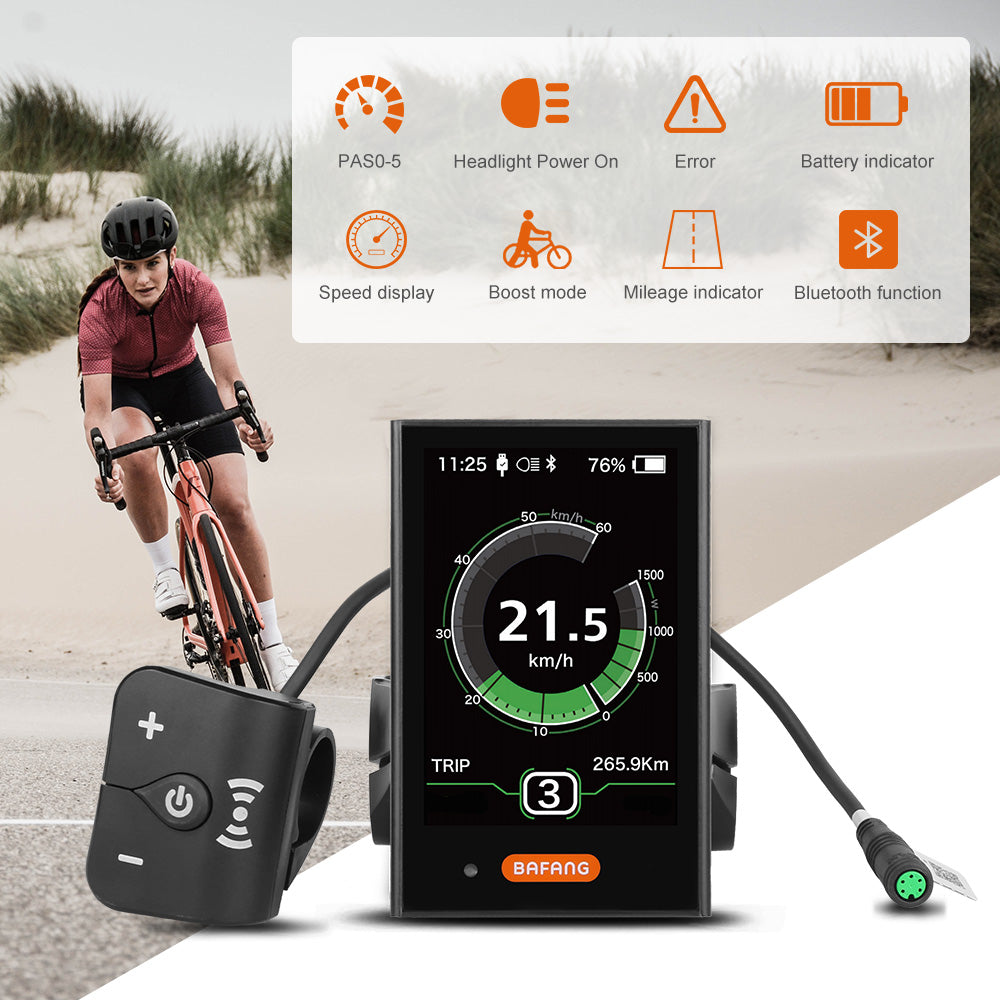

What can it show us on the ebike screen?

1. BATTERY GAUGE
2. WATT/AMP DISPLAY
3. SPEED DISPLAY
4. CURRENT TIME
5. TRIP DISTANCE
6. POWER ASSIST LEVER
7. EASY ERROR CODE MESSAGES
8. AN USB PORT TO SUPPORT MOBILE DEVICES

Electric Bike Display Settings

Press the “+” or “-”(<0.5s)button to select display settings,and then briefly press the power buttom to access the following selections.

• "Serivice"Switching the notification on and off

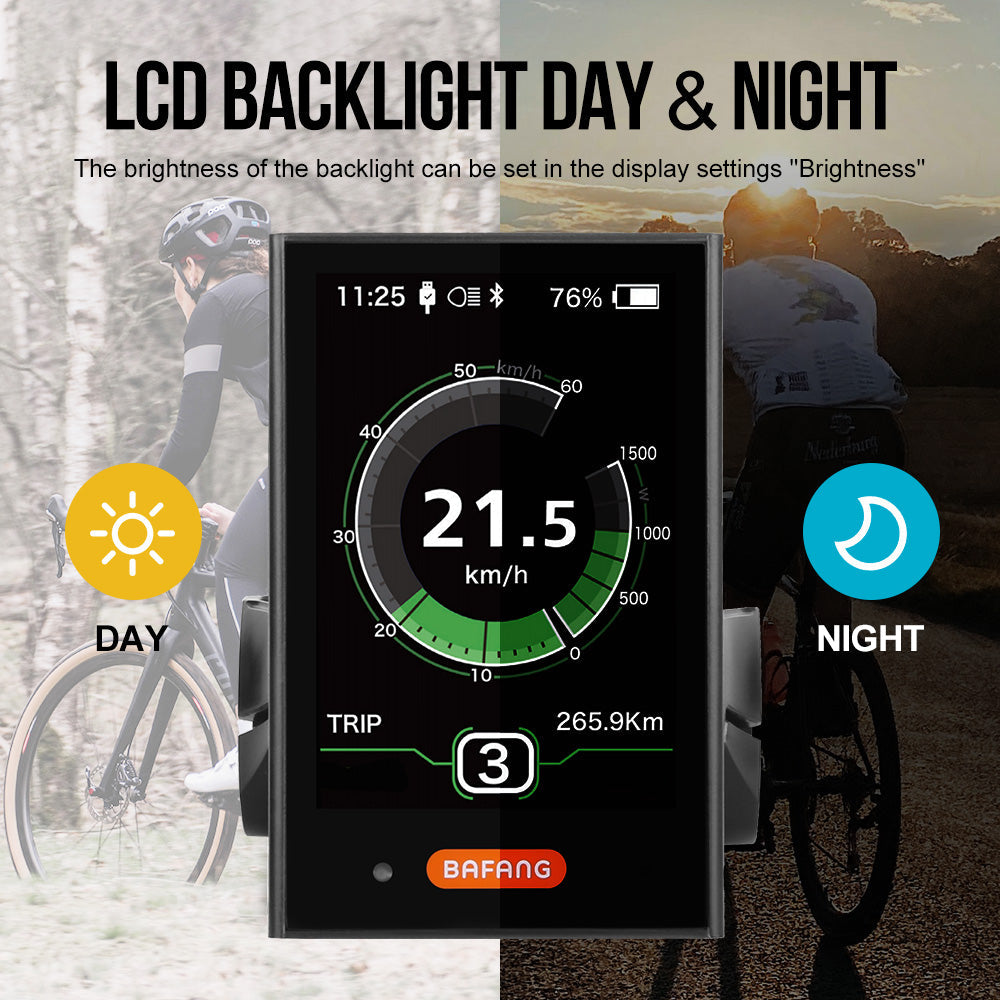

• "Brightness"Display brightness choose between"10%/30%/50%/75%/100%"
• "Auto off"Set automatic system switch off time,choose"9.8.7.6.5.4.3.2.1"(the number are measured in minutes)
• "Max Pas"Support level ,Choose between "3/5/9" (the amount of support levels)
• "Power View"Setting the power indicator,choose between "Power"or"Current"
• "SOC View"Battery view in volt percent,choose between"percent" or "voltage"
• Level-Support: setting power Levels 0 to 5.Set boot password: user can set boot pass-word by himself.

Please note:

This electric bike display only works with Bafang EBIKE kits with UART communication protocol.

BAFANG EBIKE KIT DISPLAY DPC181 MANUAL

Electro-City-Bikes-DPC181-EN-MANUAL

Electro-City-Bikes-DPC181-DE-MANUAL
