Electro City Bikes
Bafang DP C18 UART Protocol LCD Display for Bafang E-bike Conversion Kits
Bafang DP C18 UART Protocol LCD Display for Bafang E-bike Conversion Kits
Regular price
£89.99
Regular price
Sale price
£89.99
Unit price
/
per
Tax included.
Couldn't load pickup availability

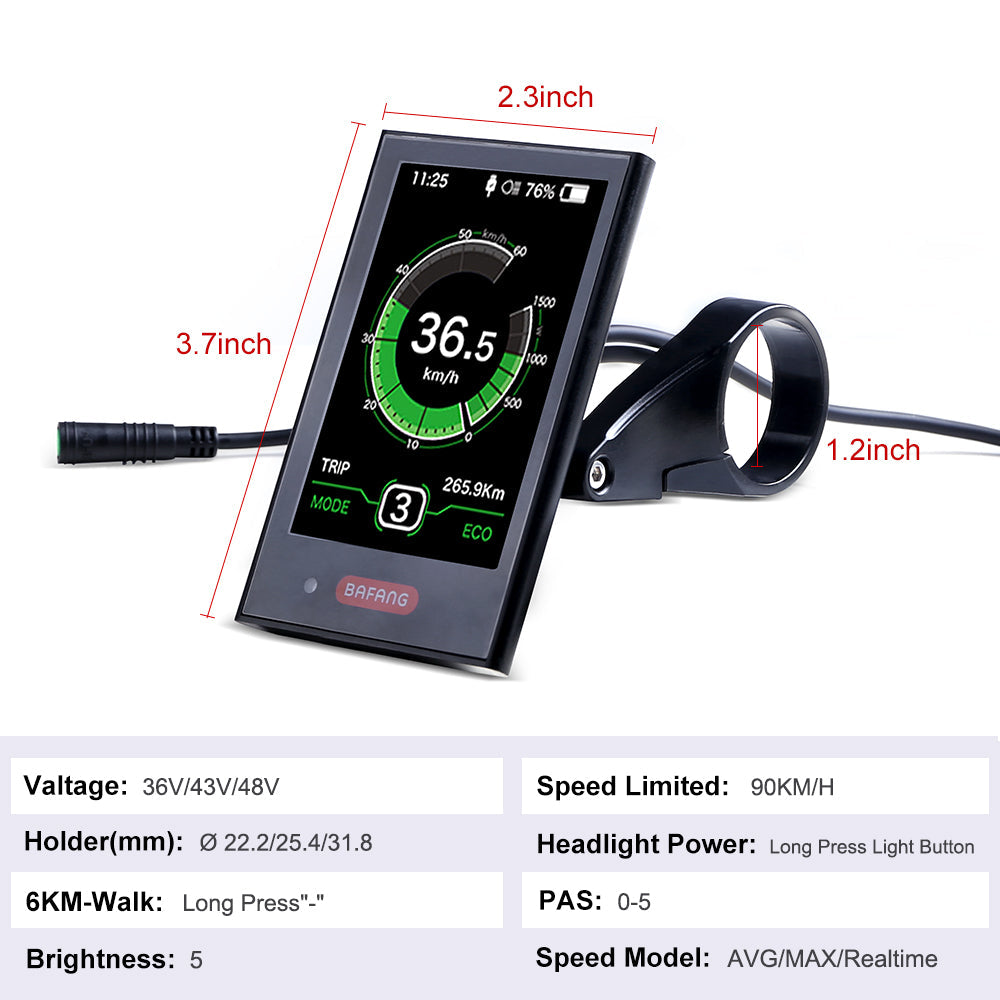

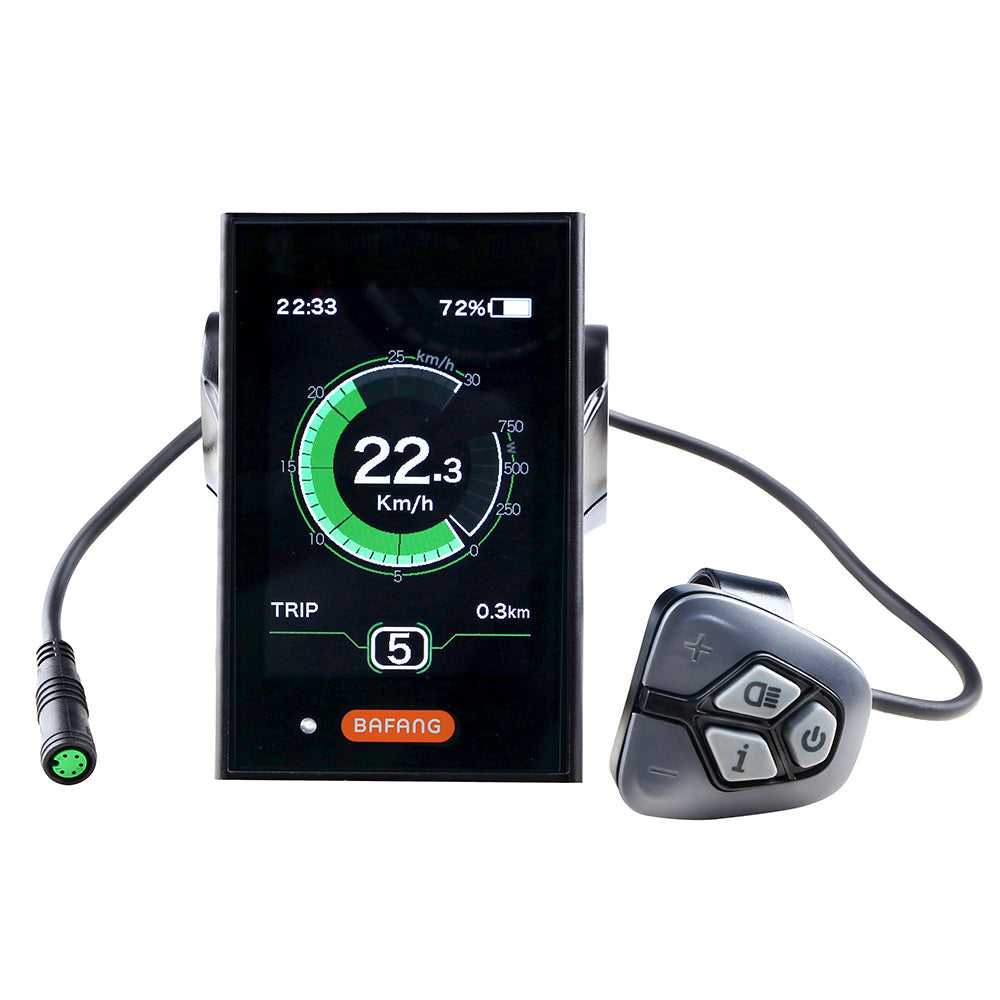

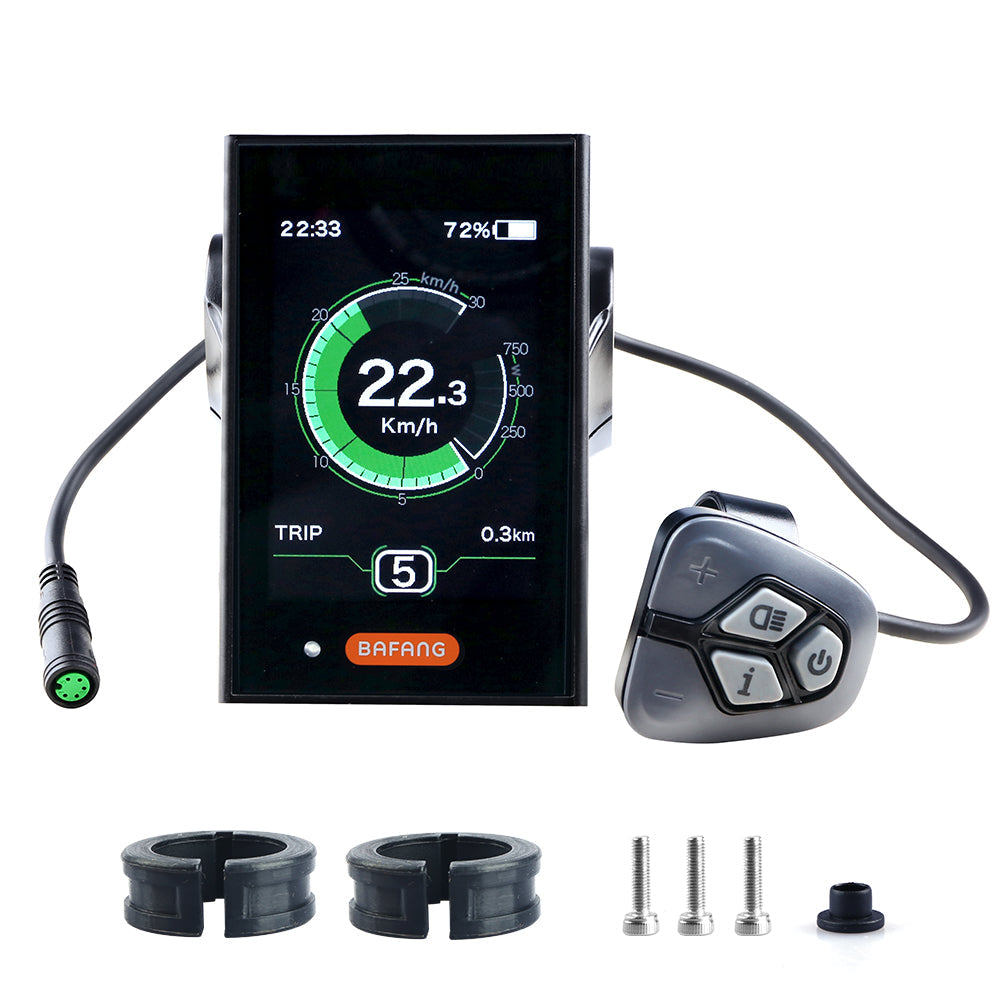

BAFANG DISPLAY- DPC18 DESCRIPTION

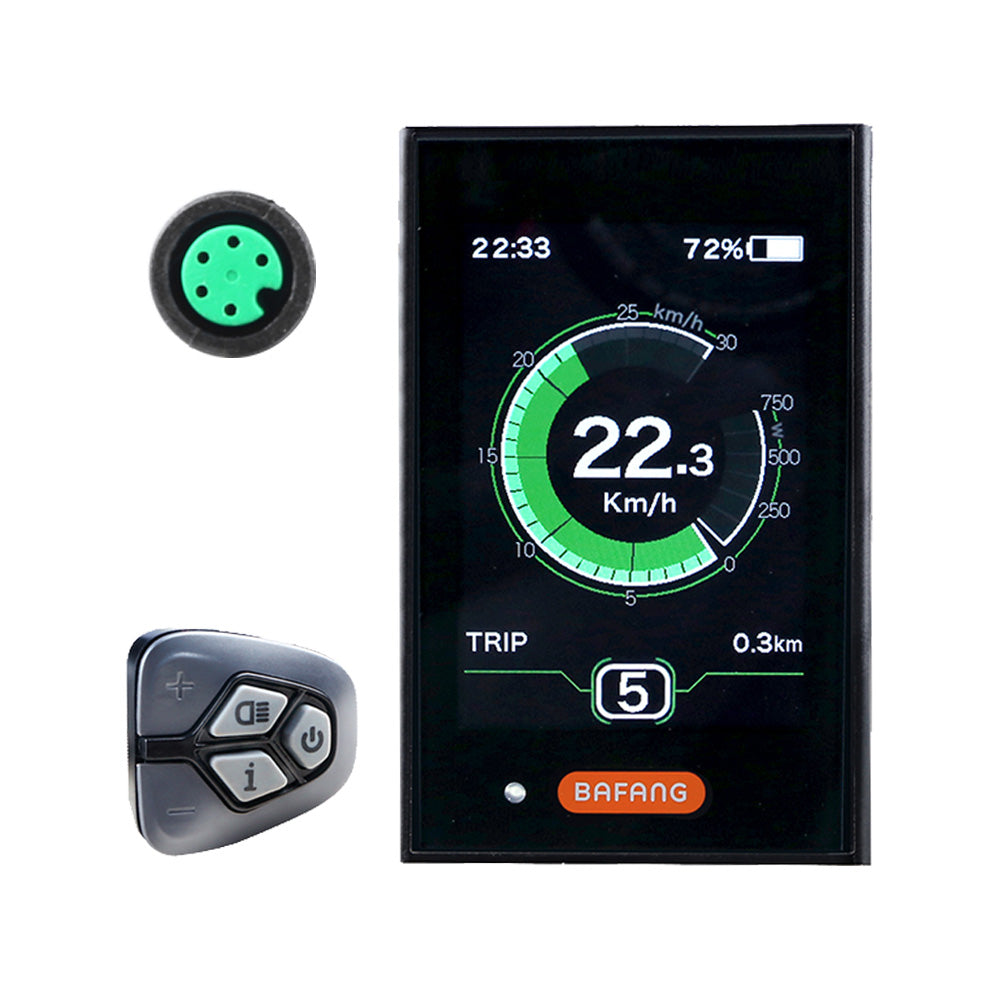

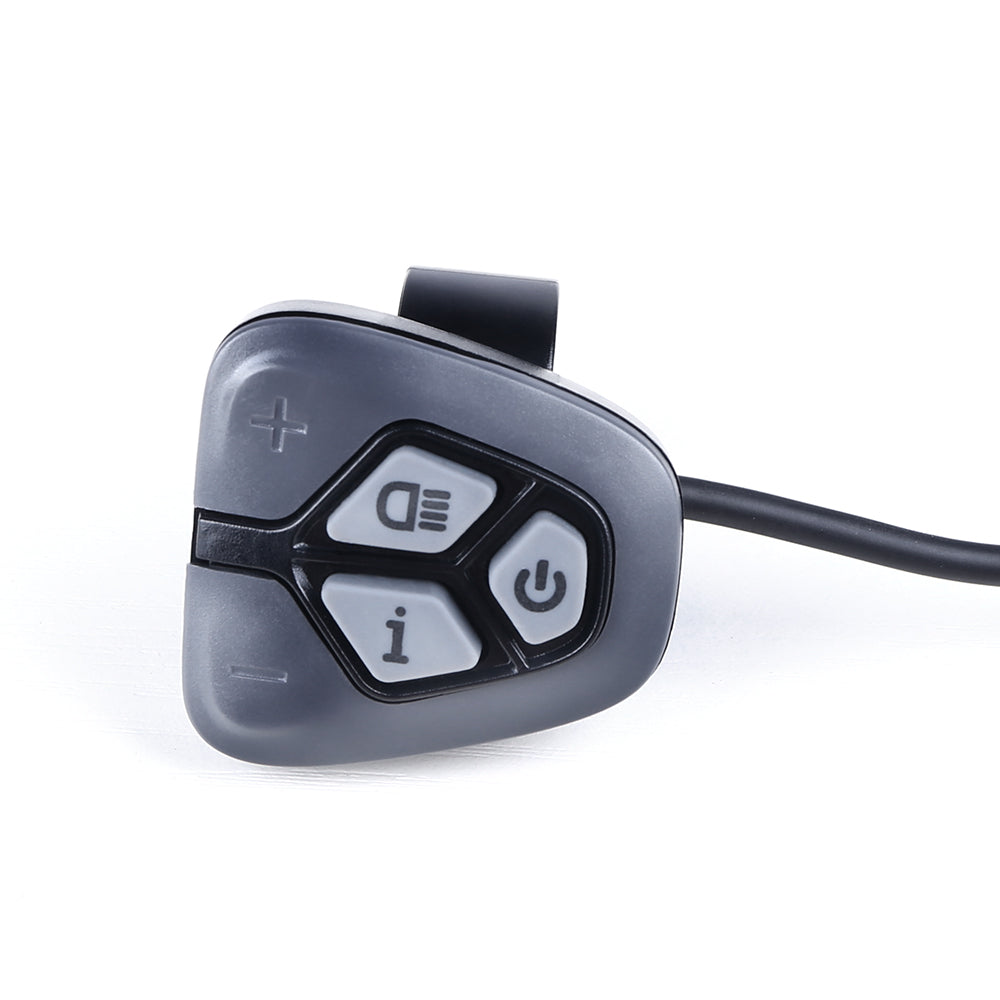

THE BAFANG DPC18 LC DISPLAY is a large high-contrast color matrix bafang display,and it is compatible with our BAFANG Mid drive conversition kit(include bbs01b/02b/hd),all can also work with bafang rear/front motor,this is One of the most fashionable and popular dispaly,Use of a two-way serial communicationprotocol, simple operation of the display viathe external 5-key keypad,Improve safety while riding.

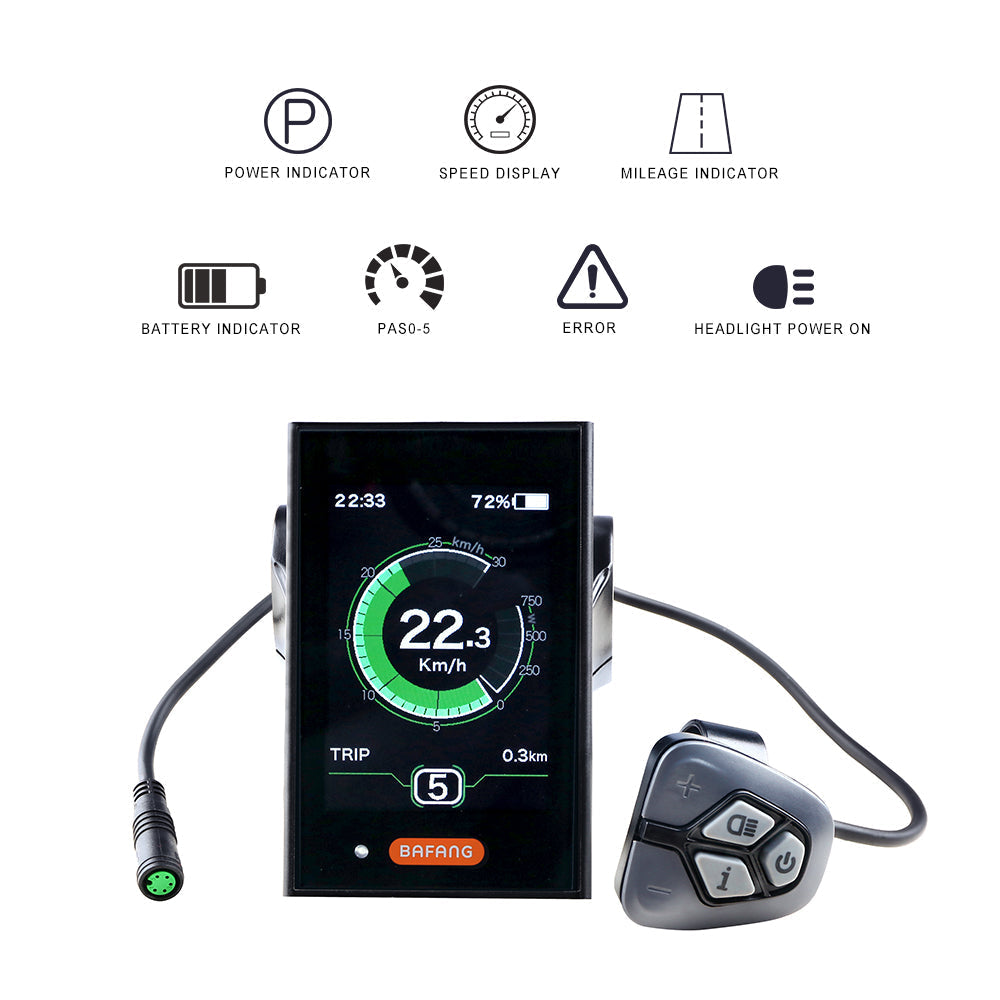

The BAFANG DPC18 DISPLAY CAN SHOW
- BATTERY GAUGE
- WATT/AMP DISPLAY
- SPEED DISPLAY
- WHAT TIME IS IT?
- TRIP DISTANCE
- Power assist level
- Easy error code messages

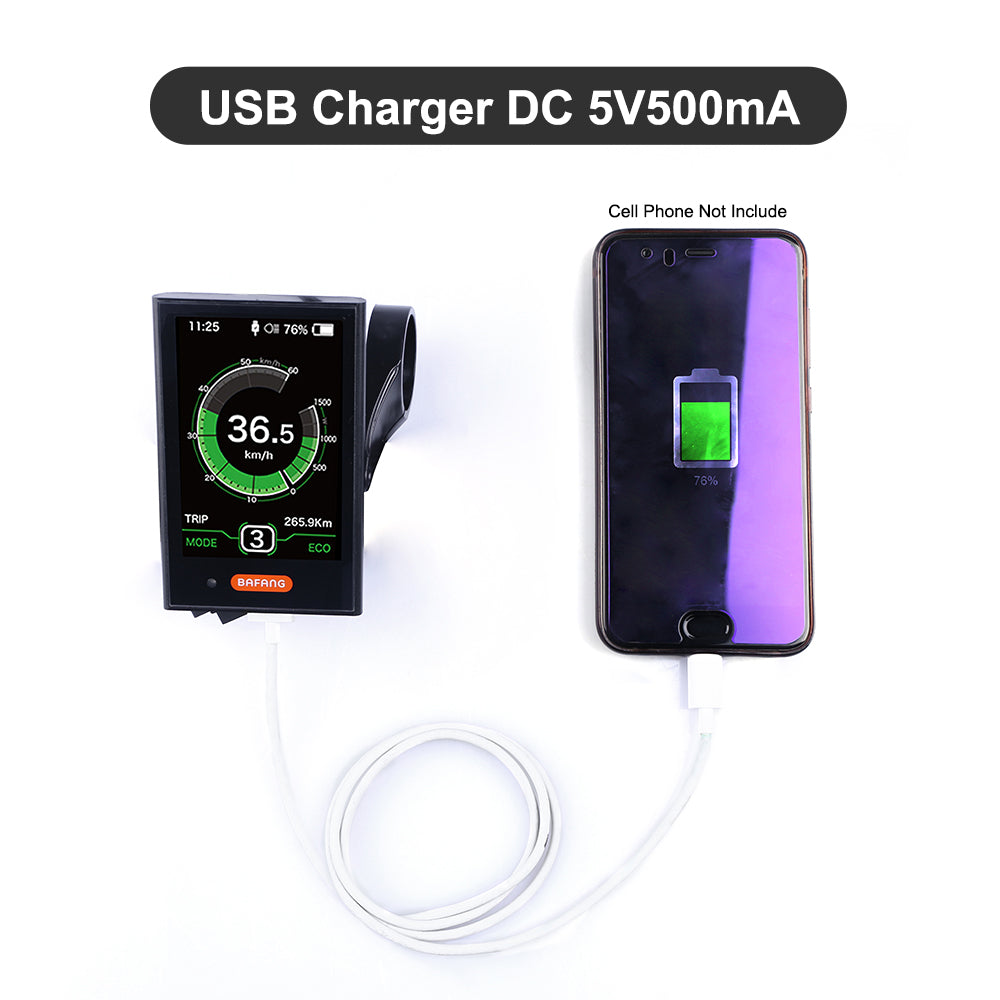

- an USB port to support mobile devices.
Ebike screen settings
- Speed display: displaying the real-time speedas SPEED, the maximum speed as MAXS andthe average speed as AVG.
- Km or mile: The user can choose betweenkm and mile.
- Intelligent battery level indication: With anoptimization algorithm, The user can define display mode of battery level as volt-age or percentage.
- Automatic light-sensitive lights: The head-light, taillight and display backlight will be automatically turned on/ off depending on lighting conditions.
- 5 levels off display backlighting: 10% is most dark, 100% is highest light.
- 6-Level-Support: setting power Levels 0 to 5.
- Trip distance indication: The maximumdistance displayed is 99999. Single-trip distances TRIP or the total distance TOTAL can be displayed.
- Two kind of riding mode: “ECO”/“SPORT”
- Intelligent display: including motor’s output power W for riding, output current A,
- Remaining miles RANGE, consumption of energy CALORIES.
- Set boot password: user can set boot pass-word by himself.
- Set parameters: Various parameters, e.g. power assistance level, wheel diameter, speed limit etc.can be set on the computer via a communication cable.
- Through the display, it can switch wheel diameter and speed limit.
Please note: This electric bike display only works with Bafang Ebike Kits with UART communication protocol.
BAFANG DPC18 LCD DISPLAY Manual :
