Bafang 500W 48V Rear Hub Cassette Rear Hub Motor Kit

Bafang Rear Hub Cassette

Wide Compatibility

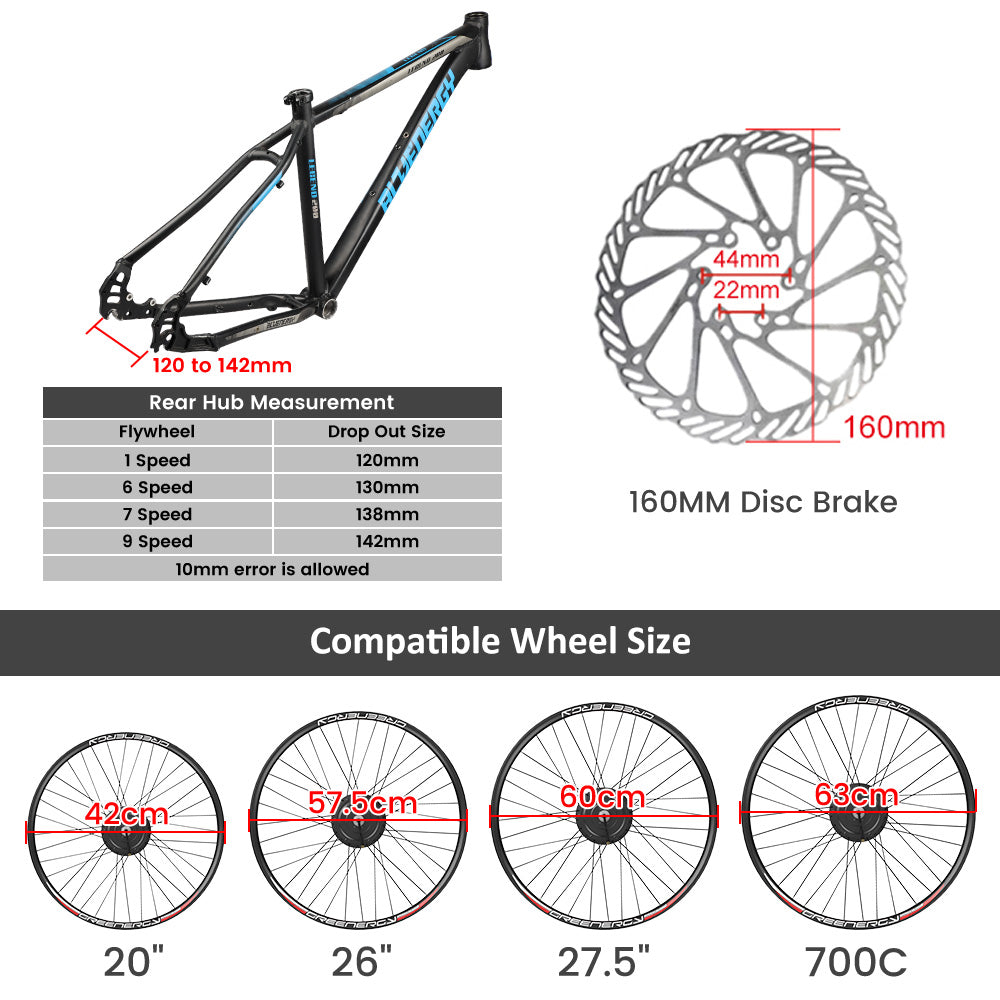

BAFANG 48V 500W rear hub motor is compatible with bikes under 9 speed cassette . The rear drop out should be between 135 to 142mm.

Stable System with Power

This rear hub motor has max torque 65 N.m, it can provide you with enough power to ride. The maximum speed can reach to 25mph (40km/h), 470 RPM, you can ride pretty easily and fast with this rear hub motor.

Specification

• Rated Voltage: 48V
• Rated Power: 500W
• Wheel Diameter: 20"/26"/27.5"/700C
• Max Torque: 65N.m
• Gear Shift: Cassette
• Rear Dropout (OLD): 138mm (Fit 135-142mm)
• Controller Current Limit: 18A
• Communication Protocol: UART 5.8

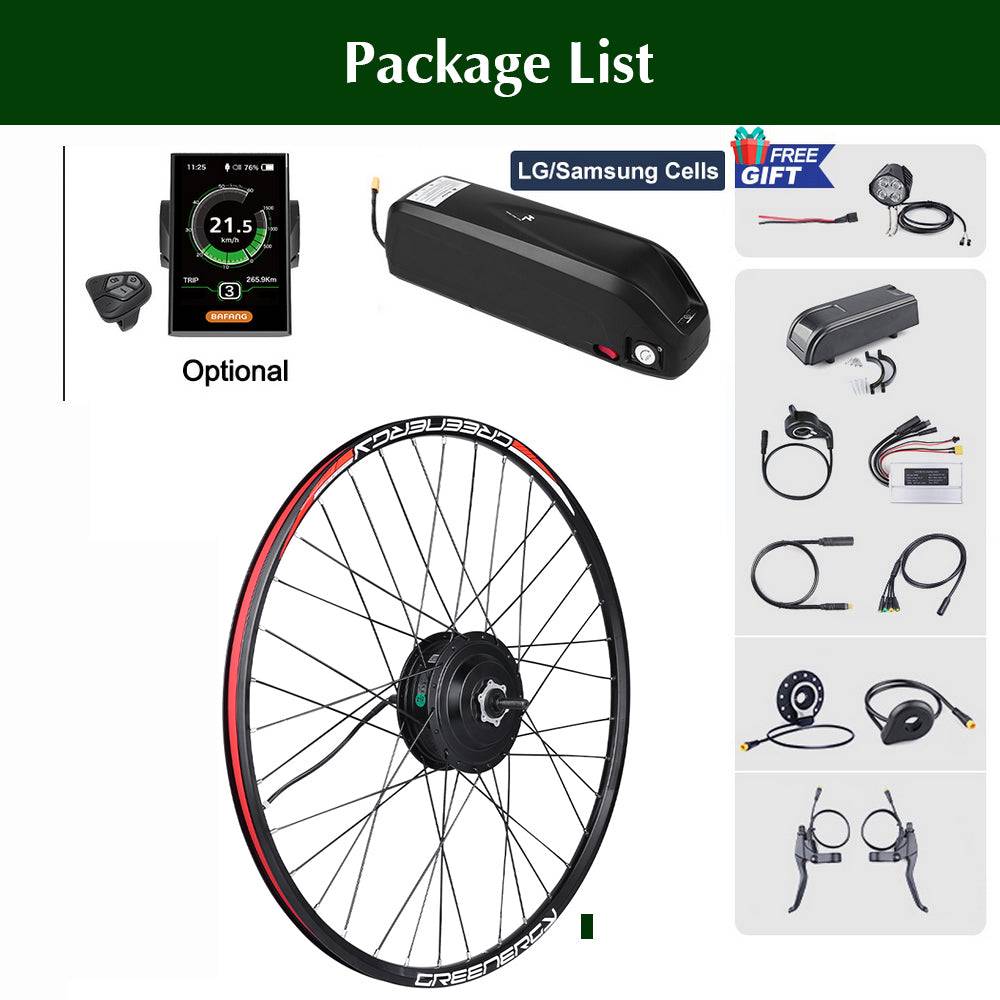

Packing List

• 1*BAFANG Rear Hub Motor
• 1*Controller
• 1*Controller Box
• 1*Left PAS Sensor/Right PAS Sensor with Small Hole
• 2*Brake Levers
• 1*Thumb Throttle
• 1*1T4 EB-BUS Cable/Battery Cable/Motor Cable
• 1*Gift Set

Easy to Installation

Electro City Bikes provides all complete conversion kits. You can finish the turning in 2 to 3 hours. Choose the wheel size (20/26/27.5/700C inch) for your bike. Contact to us if you have any problem when installing the kits.

Global Shipping and Customer Service

Electro City Bikes establish a complete logistics system in US/EU/CA/AU. Customer can expect to receive the package in 2 to 7 days. We have also established after-sales service points around the world. Electro City Bikes support 2-year warranty, if your entire eBike kits are purchased at Electro City Bikes, when it comes to repair, just send it to the designated location, we will handle everything.
