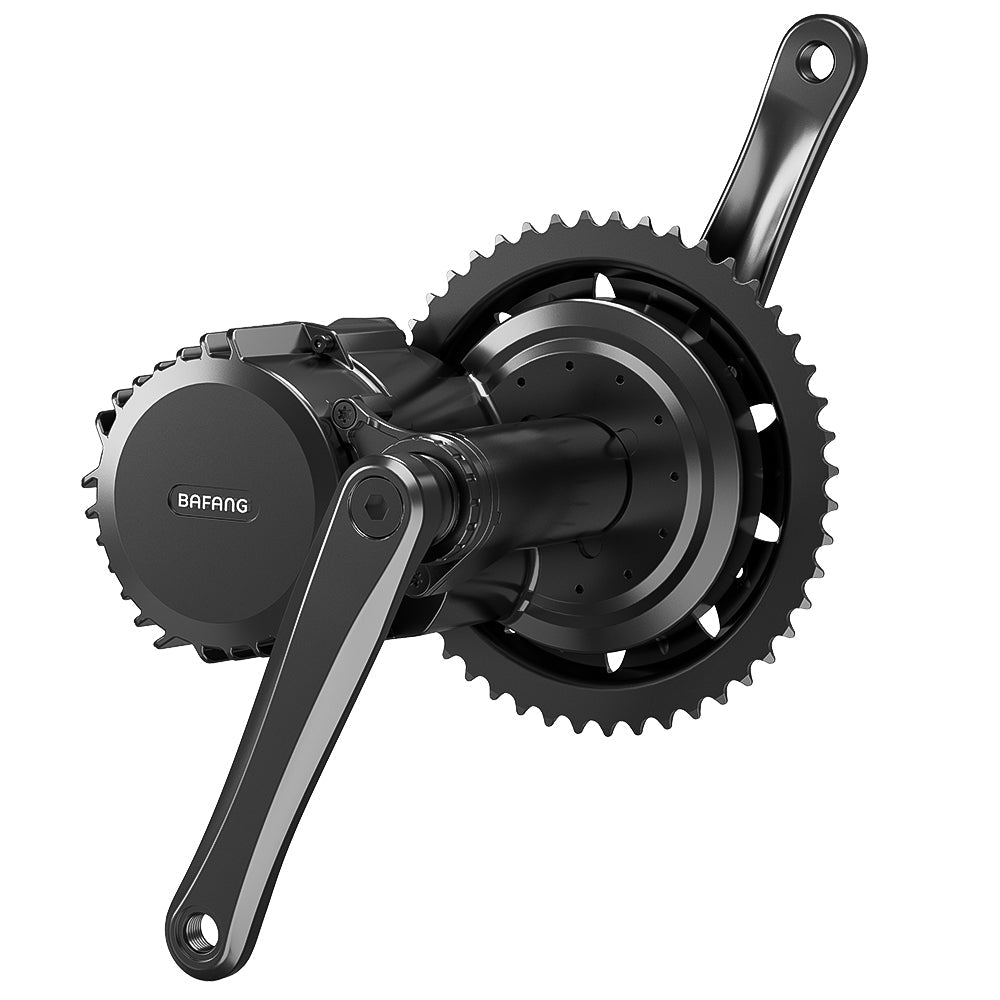

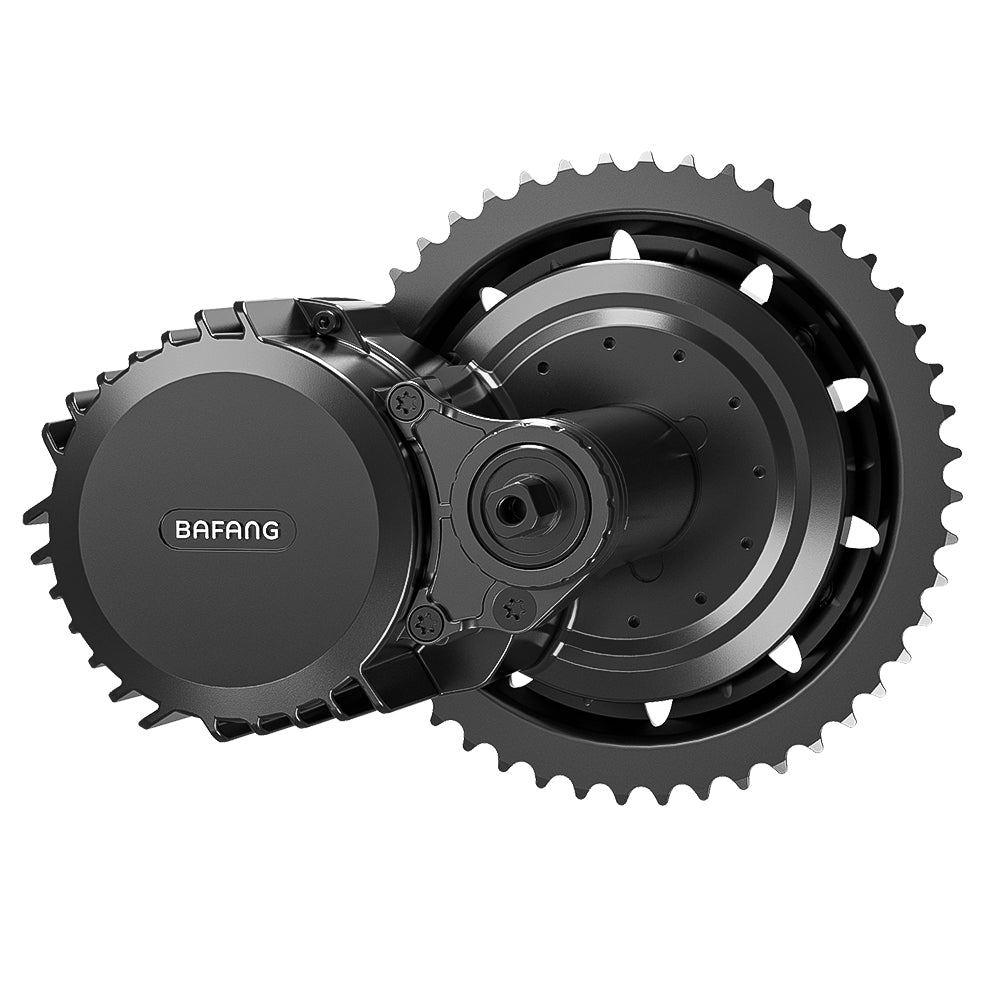

Bafang 1000W 52V (Bottom Bracket Size 100mm) UARTbus BBSHD Mid Drive Kits for Electric Bike Conversion

Name: Bafang 1000W 52V (Bottom Bracket Size 100mm) UARTbus BBSHD Mid Drive Kits for Electric Bike Conversion
Brand: Electro City Bikes
Price: 639.99 GBP
Availability: InStock

£639.99

Sale Sold out

Tax included.

Product variants

Quantity

Why Convert Your Bike to an eBike

If you want to find a 1000W eBike conversion motor. I don't think energy saving or quietness will be your goals, I think you should pursue power and speed. If so, then 8FUN 1000W mid drive motor can help you climb the most rugged mountain roads, because it has enough torque. If you need to transport overweight goods, this motor can also help you increase capacity. Electro City Bikes has equipped this powerful motor with our strongest battery, so you don't have to worry about the range of the electric power assist system.

What Do I Need to Convert My Bike to an eBike

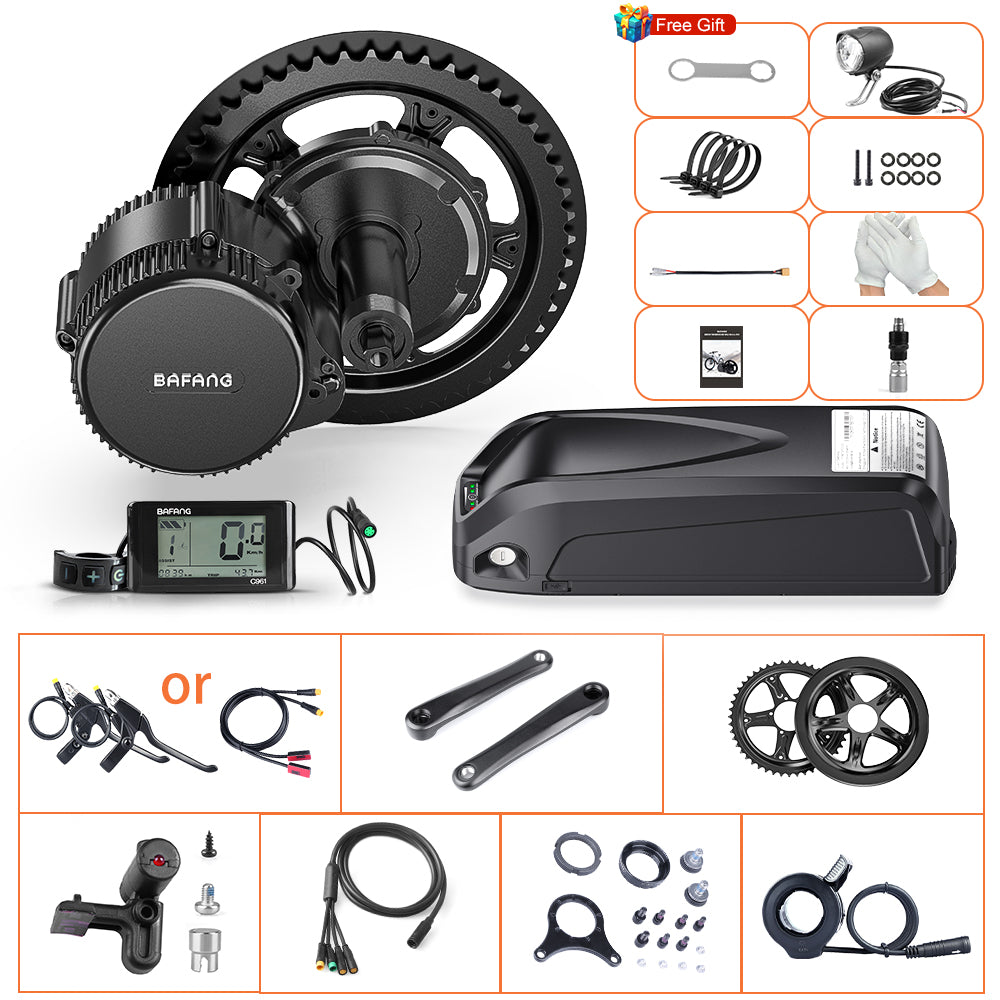

You need a set of eBike conversion kits, they include a motor, a display, a pair of eBrake levers, a chainring, and a battery. In Electro City Bikes, you will get everything you need to convert your bike.

How Can I Choose the Right Kits for My eBike Conversion

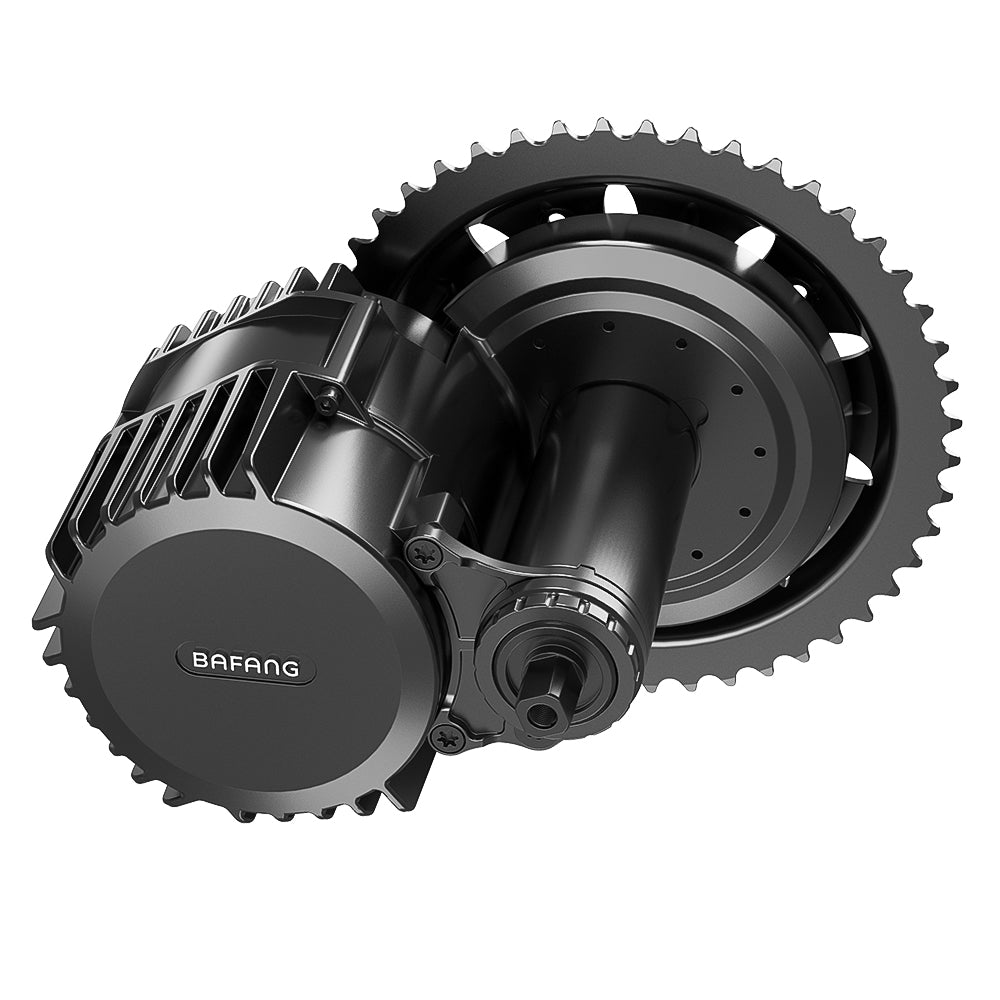

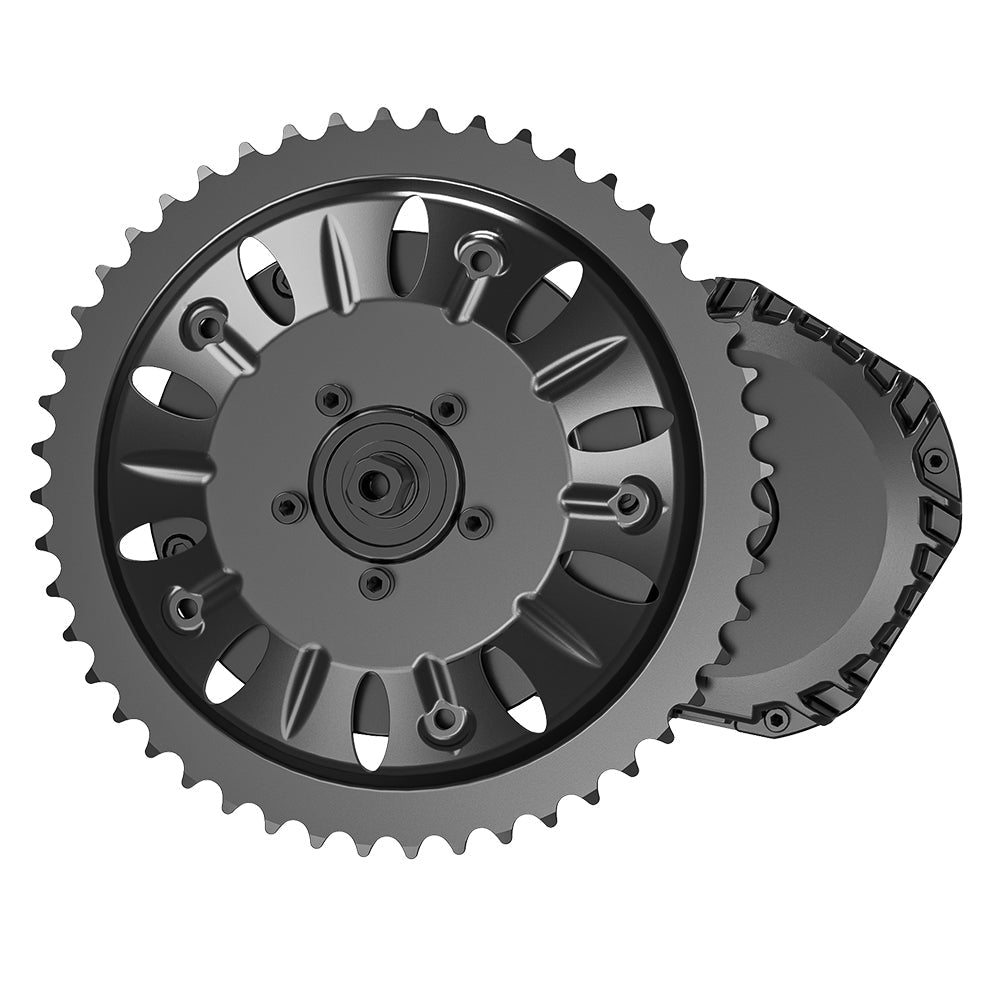

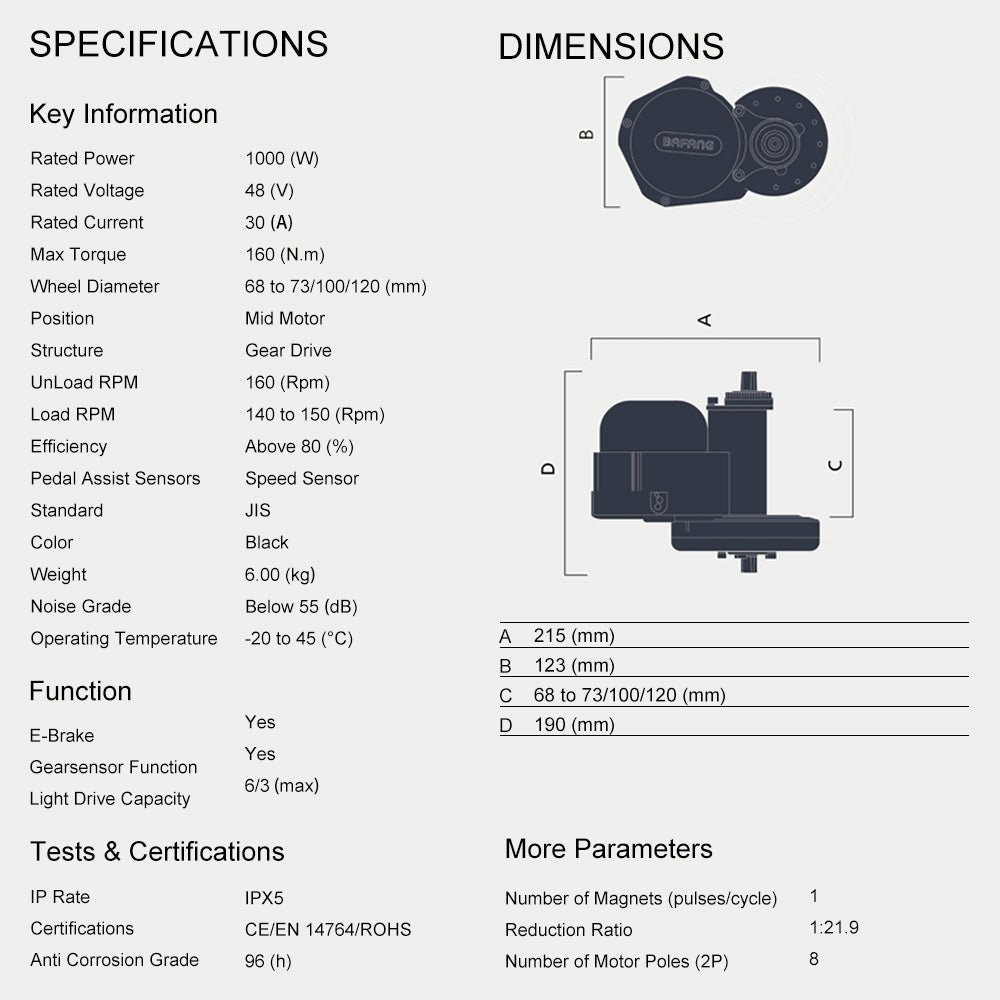

1. Know the Core Data of the Mid Drive

Position: Mid Motor
Model No.: MM G320.1000.C
Support Wheel Size (Inch): 20 to 29
Nominal Voltage (Vdc): 48
Rated Power (W): 1000
Speed Limit (km/h): 52
Max Effective Torque (N.m): 160
Pedal Sensor: Cadence Sensor
Shaft Standard: JIS
Weight (kg): 5.6
E-Brake: Support
Throttle: Support
Tests and Certifications: IP X5/CE/EN 14764/ROHS

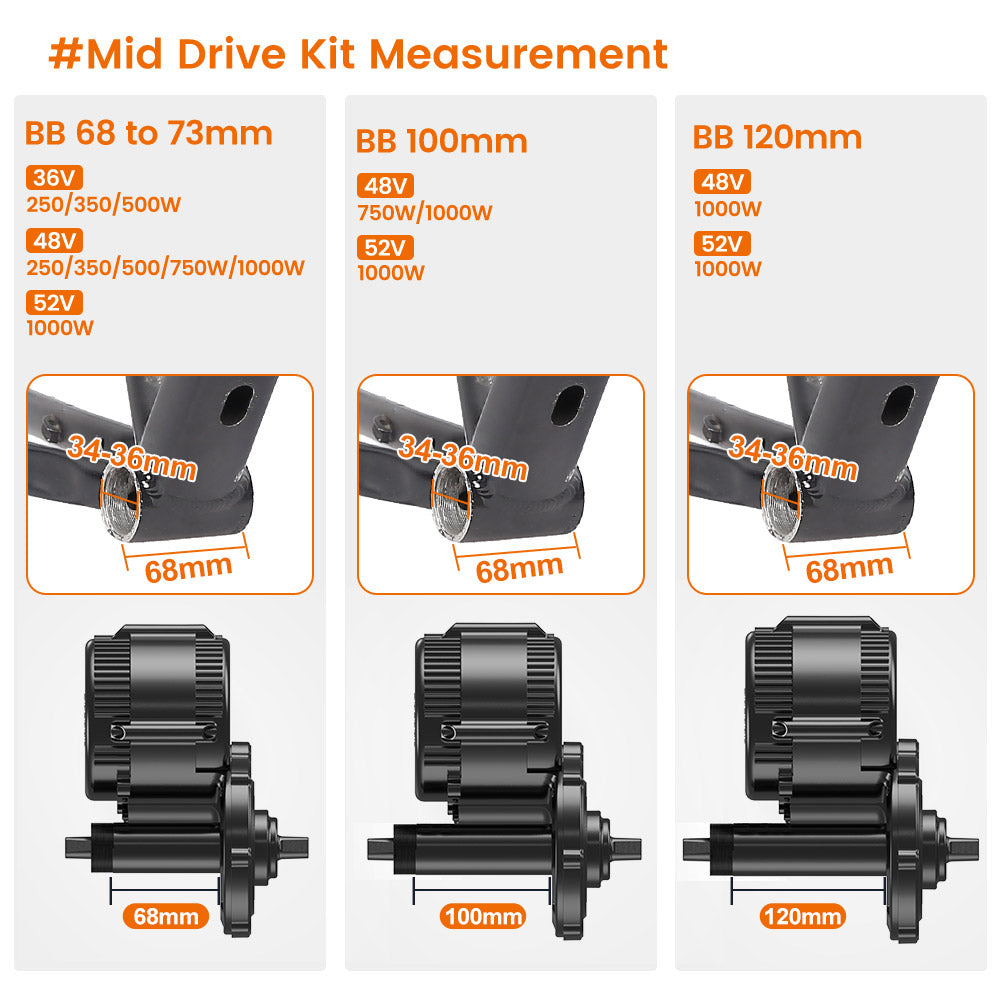

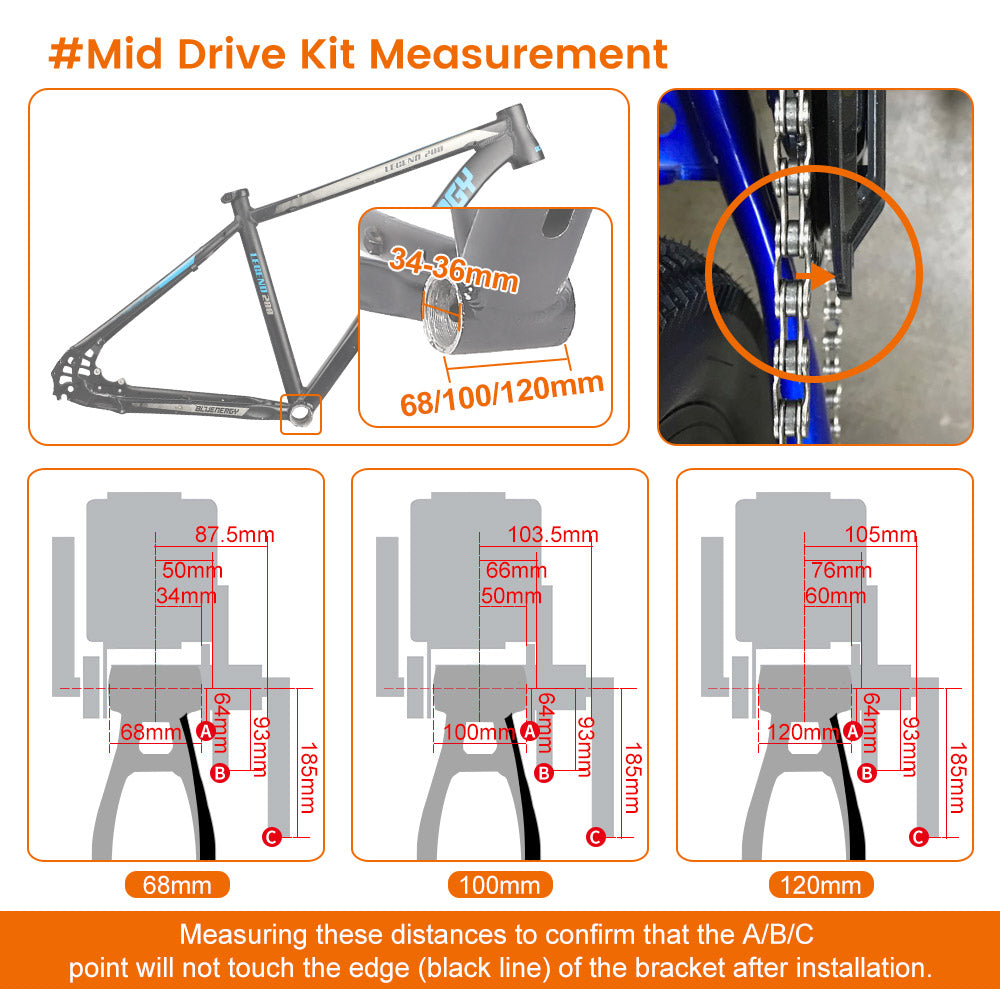

2. Confirm the Bottom Bracket Size

Electro City Bikes provides 68 to 73mm/100mm/120mm BB size for BBS series (250W/350W/500W/750W/1000W) mid drive kits. 68 to 73mm BAFANG mid drive kits are suitable for most bicycles, if you still don't know whether our motor is suitable for your bicycle, you can download and print our measuring paper for measurement, or you can contact us to confirm the size.

Download Measurement Paper for BAFANG Mid Motor

3. Choose the Power of the Motor

Electro City Bikes provides 3 series for BAFANG mid motors, motors of different series provide significantly different speeds and max torque, motors of the same series provide similar speeds and max torque. You can go to the product page for detail specification of the motor kits

BBS01B: 36V/250W, 48V/250W, 36V/350W;
BBS02B: 36V/500W, 48V/500W, 48V/750W, 48V/750W (100mm);
BBSHD: 48V/1000W, 52V/1000W, 48V/1000W (100mm), 52V/1000W (100mm), 48V/1000W (120mm), 52V/1000W (120mm).

specification for all bafang bbs mid drive kits

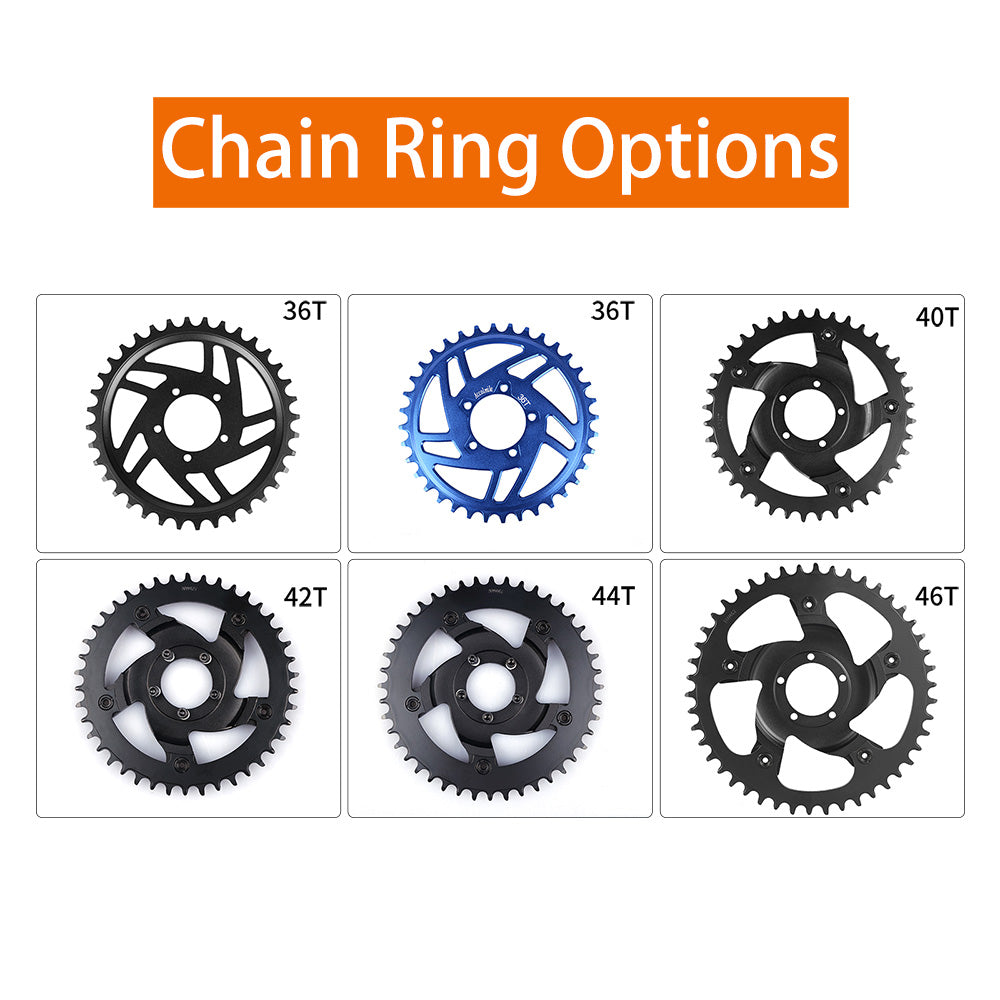

4. Choose a Chainring for the Kits

Electro City Bikes provides 36-tooth, 44-tooth, 46-tooth, 48-tooth, 52-tooth for BBS series motors. More teeth will give the e-bike system higher top speeds, but a reduction in torque or acceleration. If you need to climb and the road is full of gravel, you can choose a smaller chainring, if you ride more on the road, you can choose a larger chainring.

Note: Bafang Mid Drive Motor system is more suitable for bikes with less than 8 speed cassettes, if your bike has 9 to 11-speed cassette, the chain may drop off when you shift to the highest torque cassette due to the offset of the chainring.

5. Choose a eBrake System for the eBike Kits

Electro City Bikes provide BAFANG Mechanical eBrake levers if you bike uses mechanical brake. And the eBrake Sensor for your hydraulic brake. Or you can choose our whole Hydraulic eBrake Set on your bike.

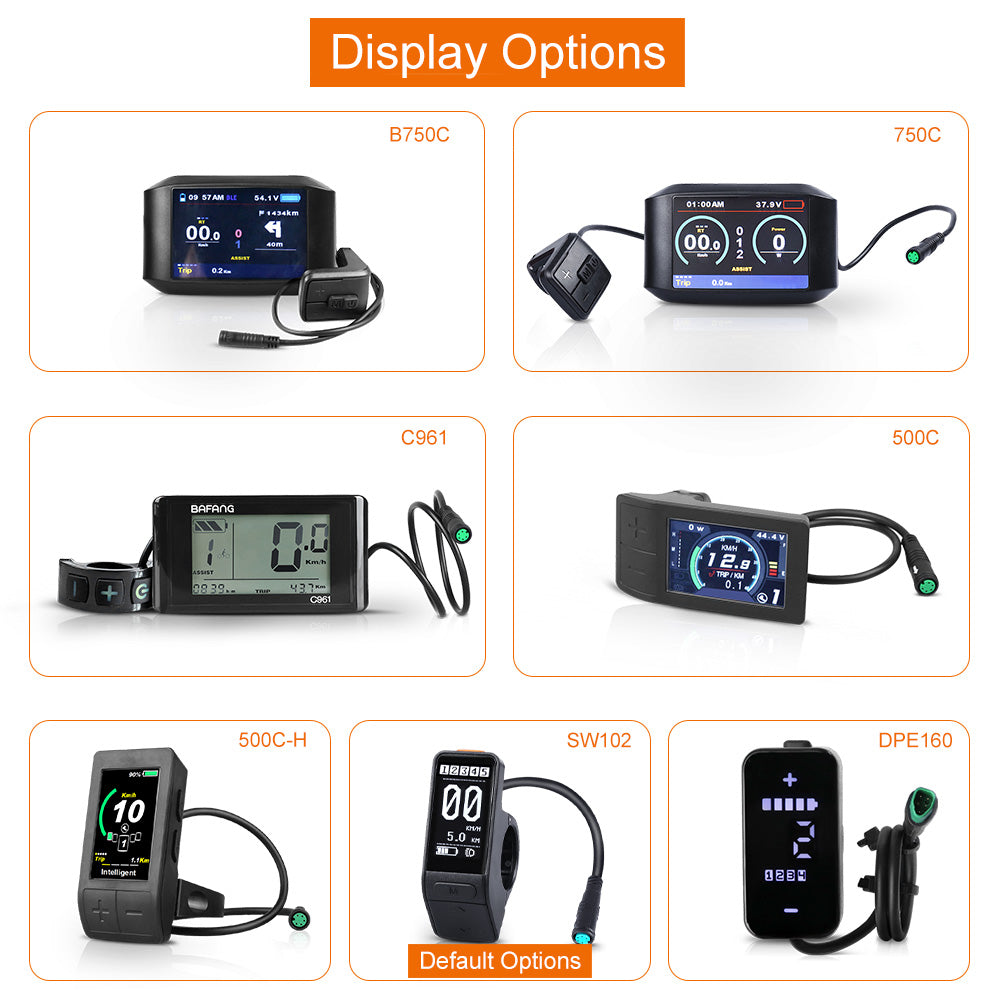

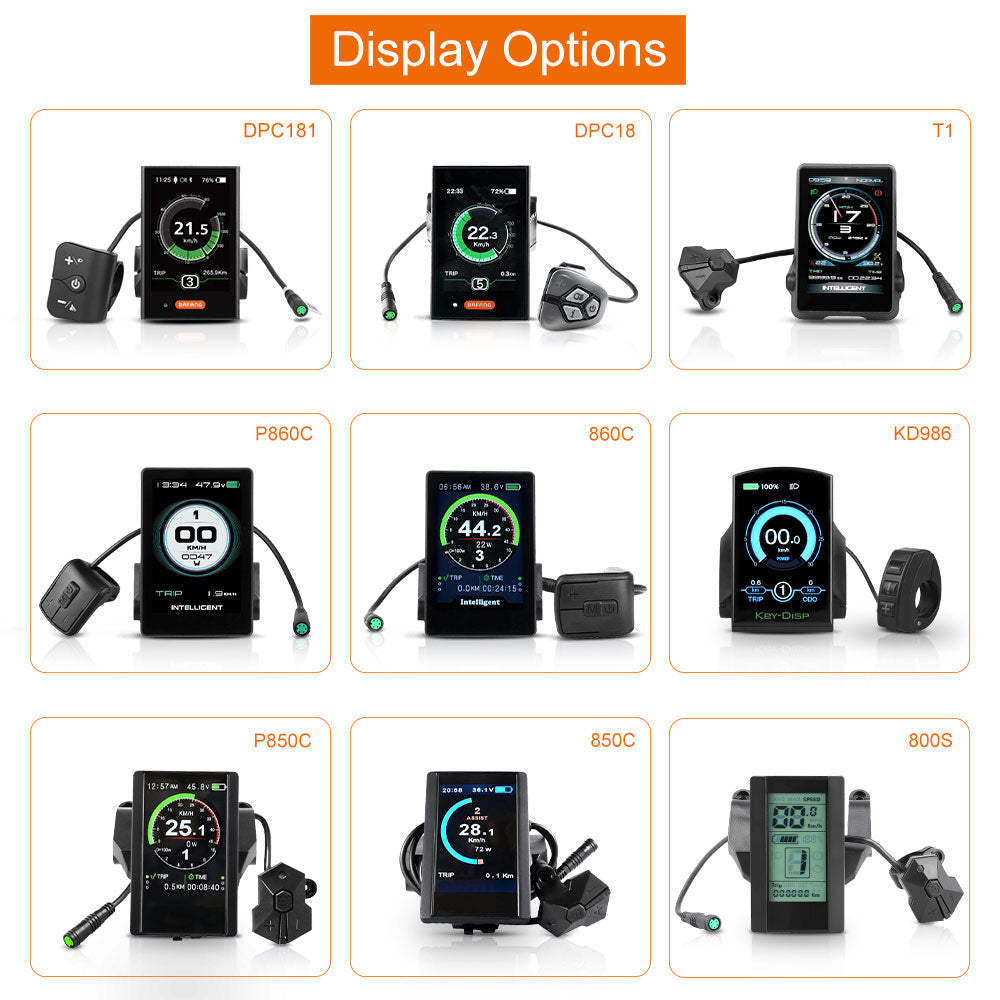

6. Choose a Display for the eBike Kits

You can choose BAFANG eBike displays or Electro City Bikes eBike displays to control the eBike system.

BAFANG eBike Displays: BAFANG DP C181, BAFANG DP C18, BAFANG C961.
Electro City Bikes - eBIke Displays: Touch T1, P860C, B750C, P850C, 850C, 500C, 500C-V, DM03, 800S.

7. Choose the Battery for the Kits

If you have a battery with stable output, you can use the battery for our kits. If you don't have a storage battery, our storage battery could be your best choice.

HAILONG Series (36.8*9.1*11.1cm/14.48*3.58*4.37inch): 36V 15.6 Ah, 36V 17.4 Ah, 36V 21.0 Ah (LG 3500mAh) Cell, 48V 13Ah, 48V 17.5Ah (LG 3500mAh Cell).
HAILONG Max (G80) Series (36.6*9.1*12.7cm/14.4*3.58*5inch): 36V 20Ah, 36V 25Ah, 48V18Ah, 48V 19.2Ah, 48V 20Ah, 52V 14.0Ah.
HAILONG Parrot Series (36.8*9.5*12.5cm/14.56*3.7*4.72inch): 52V 19.2Ah (LG Cell).

8. Recommended accessories for the Kits

If you need to modify the parameter of the controller, you'll probably need a Programming Cable. If you choose a high powered motor, Gear Shifting Sensor will help you cut-off the power when you shift gears. If you want to track the bike from your iPhone, you can buy an Air Tag Locator.
