Recommend Battery Options
Recommend Battery Options
Mileage for 36V 20.0/25.0Ah HaiLong Downtube Battery
Conservative Mileage for 36V 20.0Ah Used on Motors
- Throttle Mode: 58km (36V/250W), 51km (36V/350W), 46KM (36V/500W)
- PAS Mode: 115km (36V/250W), 103km (36V/350W), 92KM (36V/500W)
Conservative Mileage for 36V 25.0Ah Used on Motors
- Throttle Mode: 72km (36V/250W), 65km (36V/350W), 58KM (36V/500W)
- PAS Mode: 145km (36V/250W), 130km (36V/350W), 115KM (36V/500W)

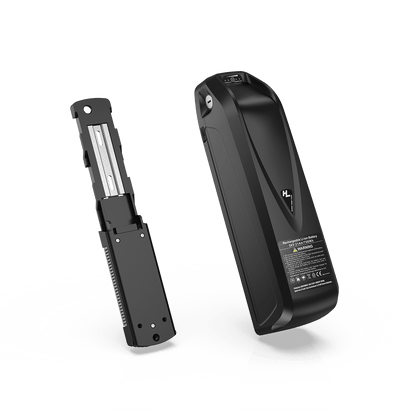

Battery Installation Measurement
- Battery and Socket (inch): 14.66*3.58*4.97
File: Hailong_G80_large_battery_installation_measurement
Mileage for 48V 13.0/17.5Ah HaiLong Downtube Battery
Conservative Mileage for 48V 13.0Ah Used on Motors
- Throttle Mode: 50km (48V/250W), 40km (48V/500W), 35KM (48V/750W)
- PAS Mode: 100km (48V/250W), 80km (48V/500W), 75KM (48V/750W)
Conservative Mileage for 48V 17.5Ah Used on Motors
- Throttle Mode: 67km (48V/250W), 55km (48V/500W), 50KM (48V/750W)
- PAS Mode: 135km (48V/250W),110km (48V/500W), 100KM (48V/750W)
Battery Installation Measurement
- Battery and Socket (inch): 14.46*3.54*4.37
File: Hailong_battery_installation_measurement
Mileage for 52V 19.2Ah HaiLong Downtube Parrot Battery
Conservative Mileage for 52V 19.2Ah Used on Motors
- Throttle Mode: 50km (52V/10000W)
- PAS Mode: 100km (52V/10000W)
Battery Installation Measurement
- Socket (inch): 13.6*2.6
- Battery (inch): 14.4*3.7*4.9
Suitable Motor
If you want to buy a Electro City Bikes eBike battery as replacement, please know that Electro City Bikes battery can be the power source for the BAFANG UART protocol mid drive conversion kits or BAFANG hub kits. But it is not suitable for BAFANG CAN protocol mid drive motors.
- BBS01B: 48V/250W;
- BBS02B: 48V/500W, 48V/750W, 48V/750W (100mm);
- BBSHD: 48V/1000W, 48V/1000W (100mm), 48V/1000W (120mm).

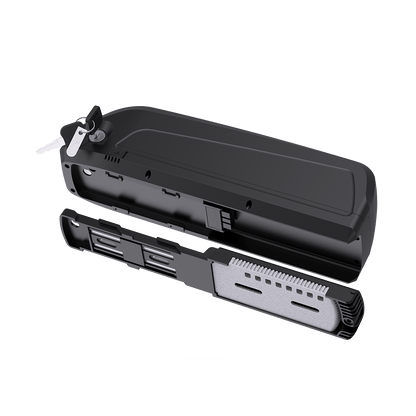

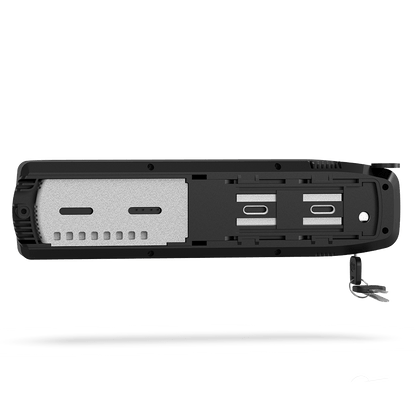

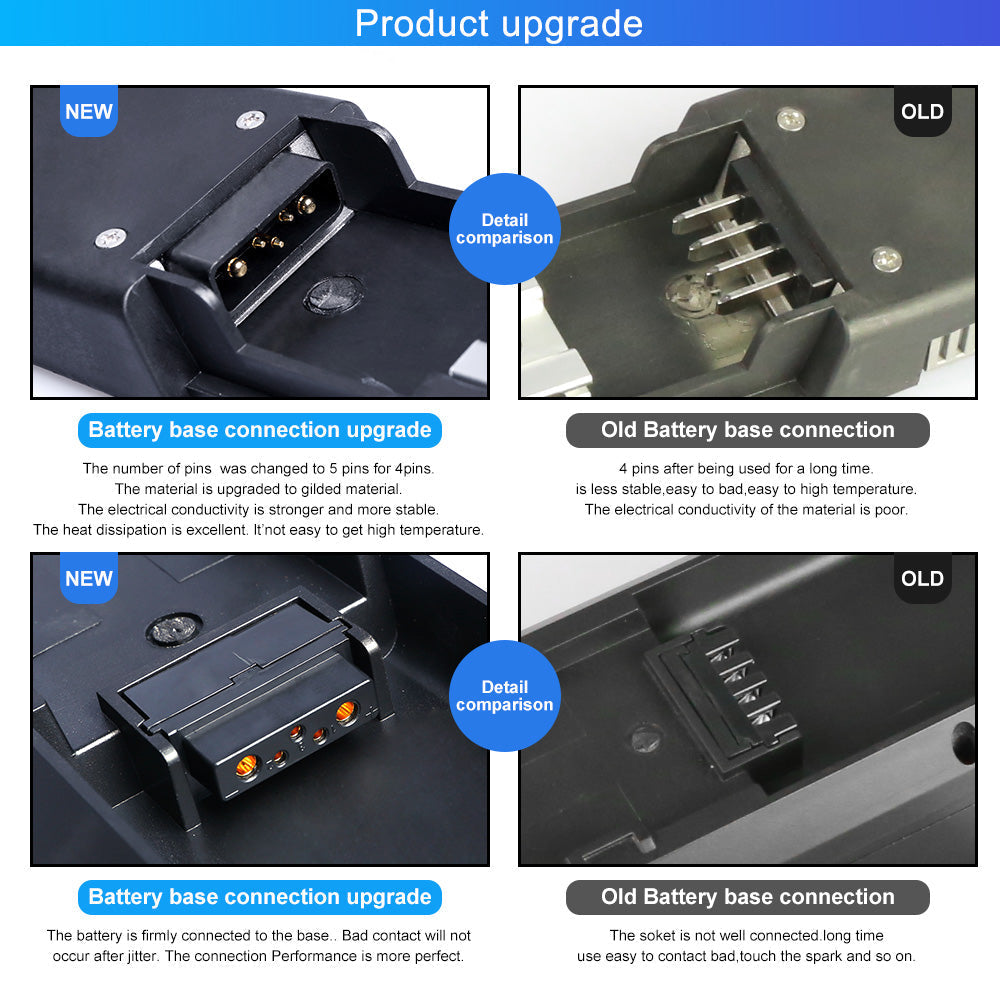

Upgraded Connection Method
The old-style connectors used a multi-pin socket, which is like an electrical socket at home, but it has more pins, which is not good for e-bike batteries that may need to be connected frequently. So we upgraded the connector and adopted the contact connection method. The new connection method not only simplifies the installation and removal of the battery, but also improves the duration of the battery connector.

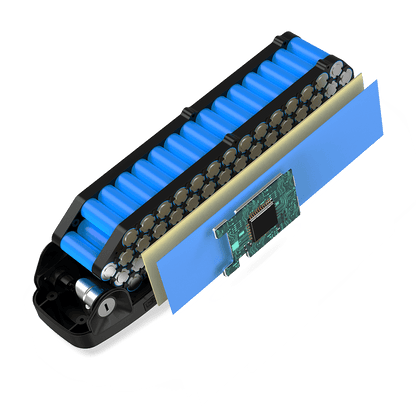

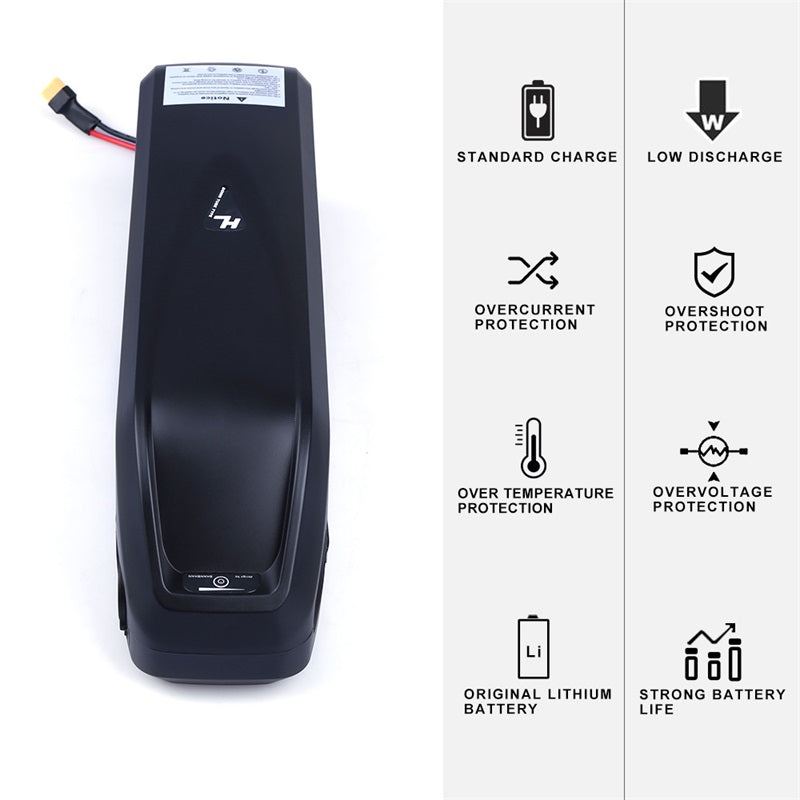

Battery Management System
- Overpower Protection
- Over Voltage Protection
- Over Current Protection
- Over Discharge Protection
- Overcharge Protection
- Short Circuit Protection
- Cell Balancing

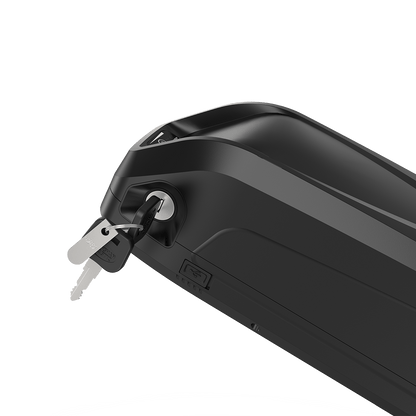

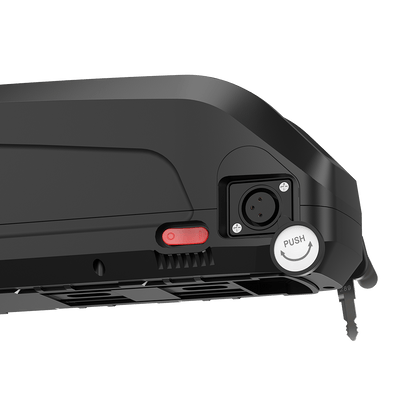

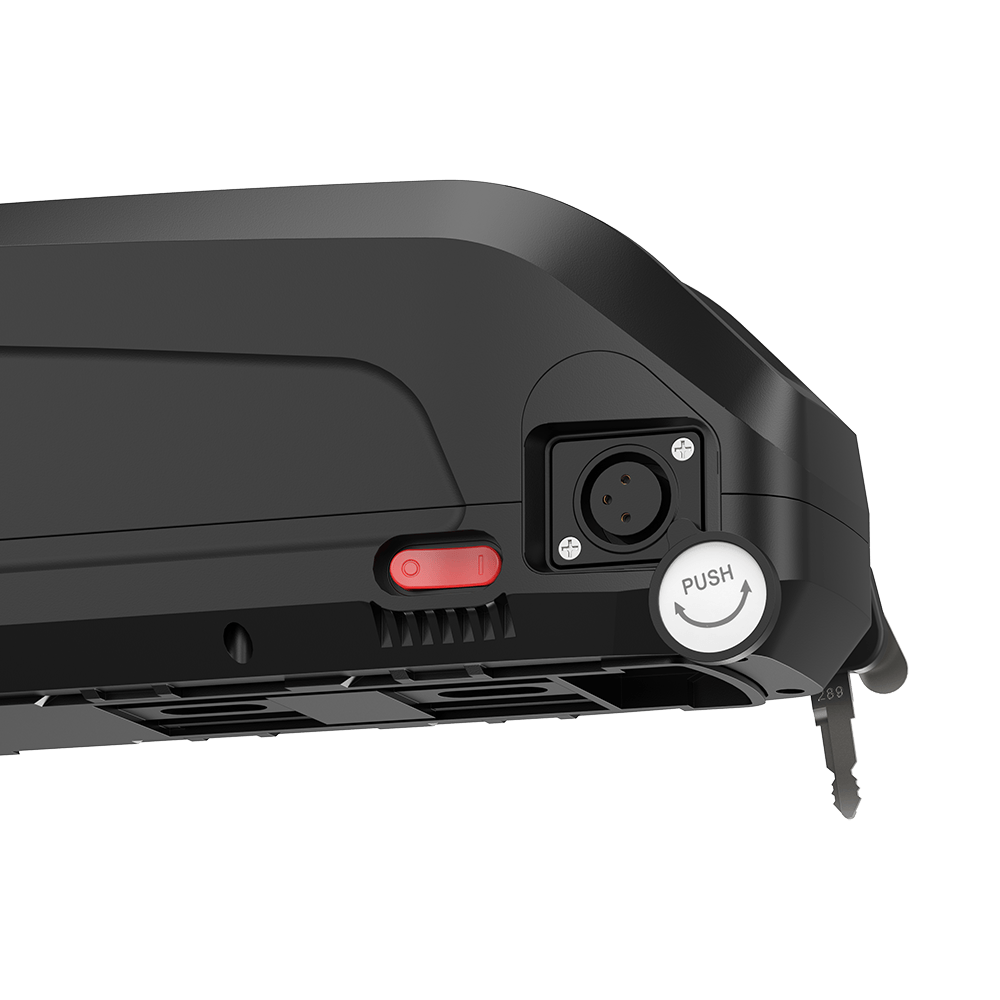

Anti-theft Safe Lock
Ebery Electro City Bikes Hailong battery has the lock and keys, the lock can help to fix the battery and prevent others from taking the battery, you can use the keys to lock the battery when you install it on the socket and unlock to take the battery for charging.

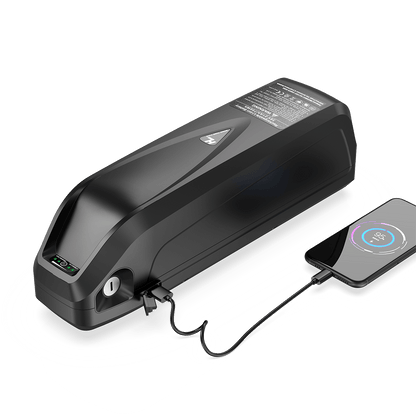

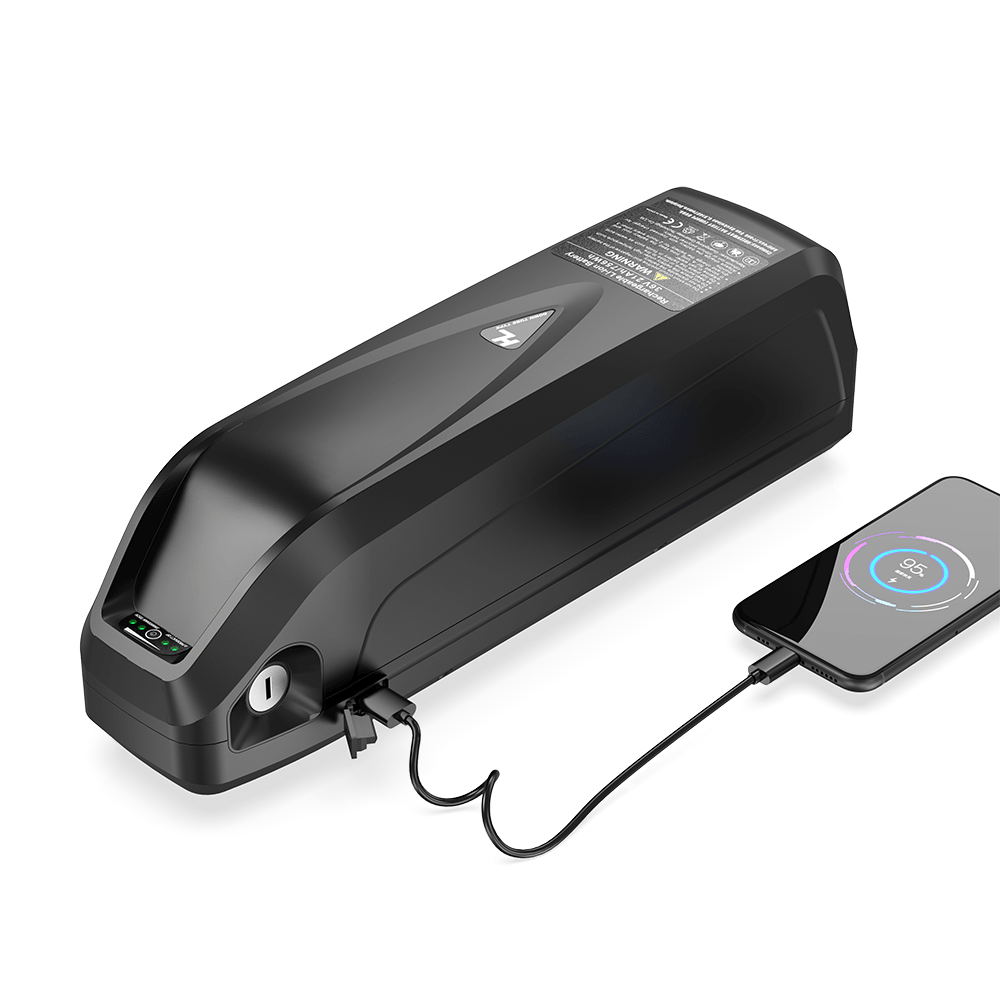

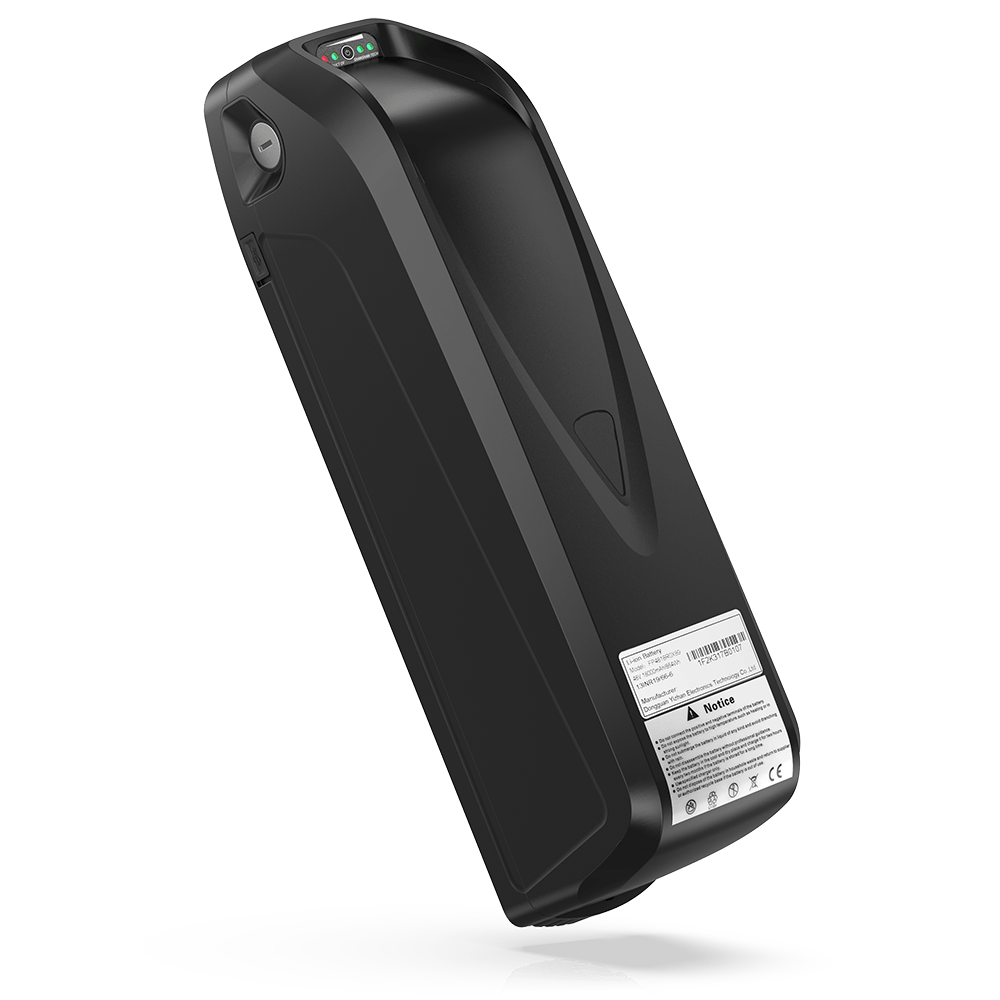

USB Connector Avaliable
Each Hailong battery is equipped with a USB port, which can charge your mobile phone or other devices. At the same time, you can judge the power of the battery through the indicator light of the battery. 1 Red+3 Green (100%), 1 Red+2 Green (75%), 1 Red+1 Green (50%), 1 Red+0 Green (25%), it means you need to charge the battery.

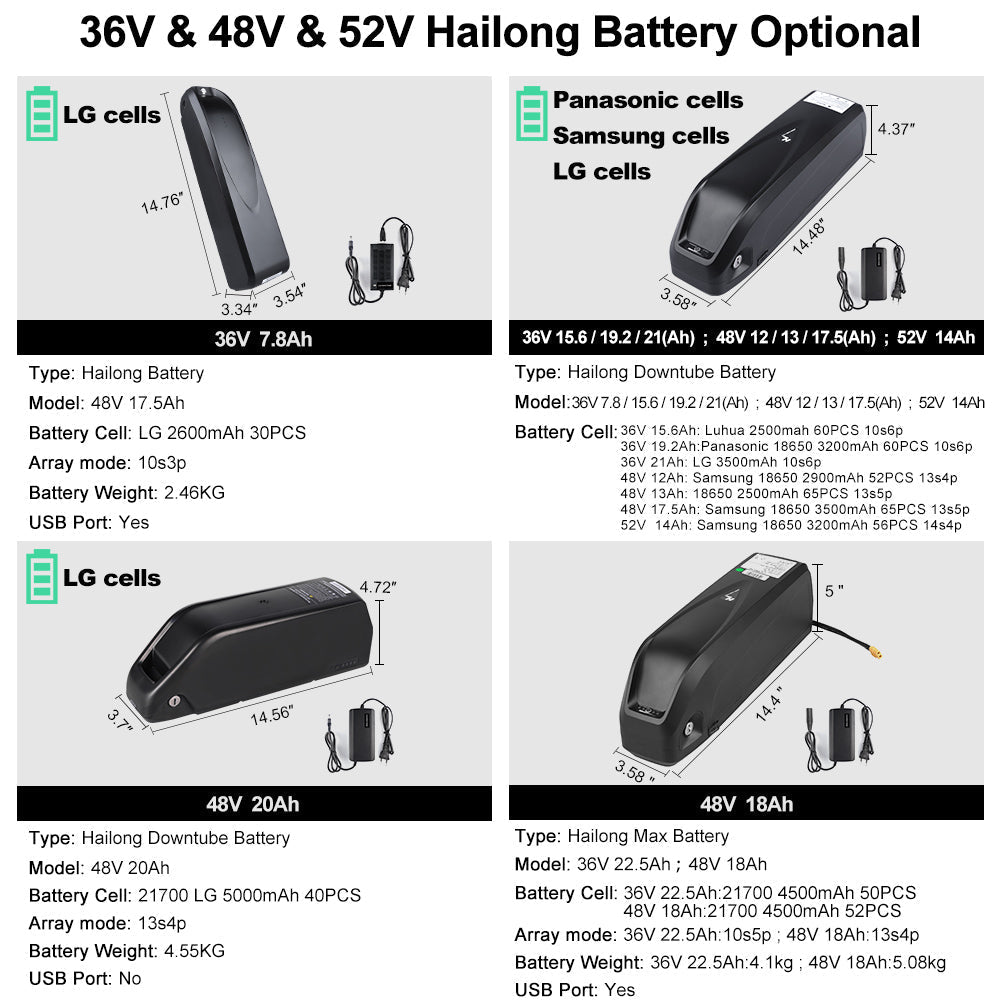

Other Battery Options
Electro City Bikes also provide other battery for Bafang eBike conversion kits.

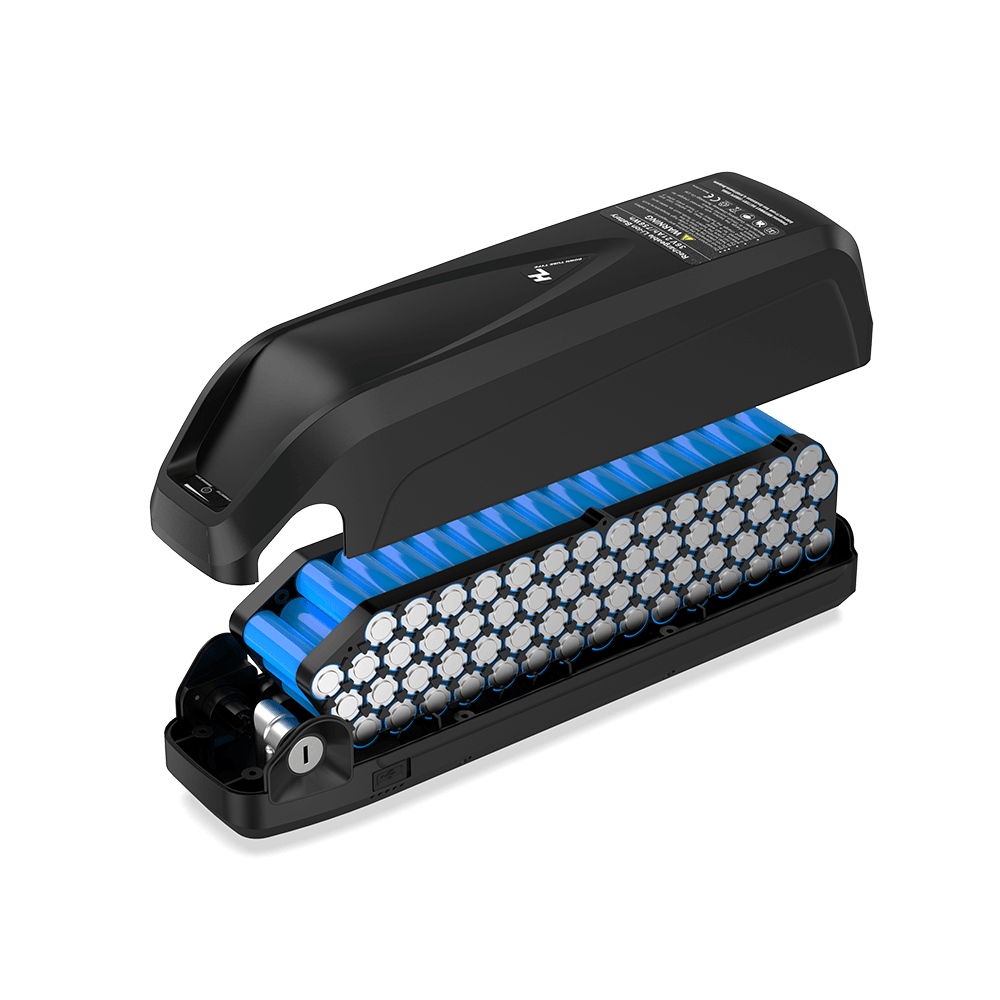

- HAILONG Series (36.8*9.1*11.1cm/14.48*3.58*4.37inch): 36V 15.6 Ah, 36V 17.4 Ah, 36V 21.0 Ah (LG 3500mAh) Cell, 48V 13Ah, 48V 17.5Ah (LG 3500mAh Cell).
- HAILONG Max (G80) Series (36.6*9.1*12.7cm/14.4*3.58*5inch): 36V 20Ah, 36V 25Ah, 48V18Ah, 48V 19.2Ah, 48V 20Ah, 52V 14.0Ah.
- HAILONG Parrot Series (36.8*9.5*12.5cm/14.56*3.7*4.72inch): 52V 19.2Ah (LG Cell).
Tips for Riding eBike
Increased Range | Reduced Range |
---|---|
Low Average Speed | High Average Speed |
Light Load | Heavy Load |
Flat/downhill Terrain | Uphill Terrain |
Narrow Road Tires | Wide Knobby Tires |
Tailwind | Headwind |
Sliding | Stop and Start |
Summer | Winter |
Specification:
- Rated Volt: 48 (V)
- Rated Capacity: 13/17.5 (Ah)
- Cell Arrangement: 13s5p/13s5p
- Battery Size: 36.8*9.1*11.1/36.8*9.1*11.1cm
- Battery Weight: about 4.1/4.1 (kg)
- Max Constant Discharge Current: 30 (A)
- Peak Current: 60 (A)
- Charge Voltage: 54.6 (V)
- Cut-off Voltage: 36.4 (V)
- Way of Charge: CC/CV
- Charging Time: 1000
- Charge Temperature: -15 to 65 (℃)
- Discharge Temperature: -15 to 65 (℃)
Package Include
- 1*eBike Battery
- 1*Charger
- 1*XT 60 Cable
- 1*Waterproof Bag
