P860C LCD Display for UARTbus Bafang Mid Drive Conversion

DESCRIPTION

Electro City Bikes P860C is an upgrade version of 860C, the new interface makes the whole dashboard look more professional, and the P860C full color LCD display available for electric bicycle 8FUN BAFANG BBS01B/B02B and BBSHD (36V/48V). The new 860c is a great choice for a choice for your new ebike.

What will be displayed after connecting the bafang ebike kit?

1. PAS LEVEL
2. SPEEDOMETER
3. VOLTAGE/BATTERY INDICATOR
4. POWER DISPLAY(AMPS/WATTS)
5. RIDE TIME
6. USB OUT
7. ODOMETER

Electro City Bikes P860C Display Settings

• Speed display: displaying the real-time speedas SPEED, the maximum speed as MAXS andthe average speed as AVG.
• Km or mile: The user can choose betweenkm and mile.
• Intelligent battery level indication: With anoptimization algorithm, The user can define display mode of battery level as volt-age or percentage.
• Automatic light-sensitive lights: The head-light, taillight and display backlight will be automatically turned on/ off depending on lighting conditions.
• 5 levels off display backlighting: 10% is most dark, 100% is highest light.
• 6-Level-Support: setting power Levels 0 to 5.
• Trip distance indication: The maximumdistance displayed is 99999. Single-trip distances TRIP or the total distance TOTAL can be displayed.
• Intelligent display: including motor’s output power W for riding, output current A,
• Remaining miles RANGE, consumption of energy CALORIES.
• Set boot password: user can set boot pass-word by himself.
• Set parameters: Various parameters, e.g. power assistance level, wheel diameter, speed limit etc.can be set on the computer via a communication cable.
• Through the display, it can switch wheel diameter and speed limit.

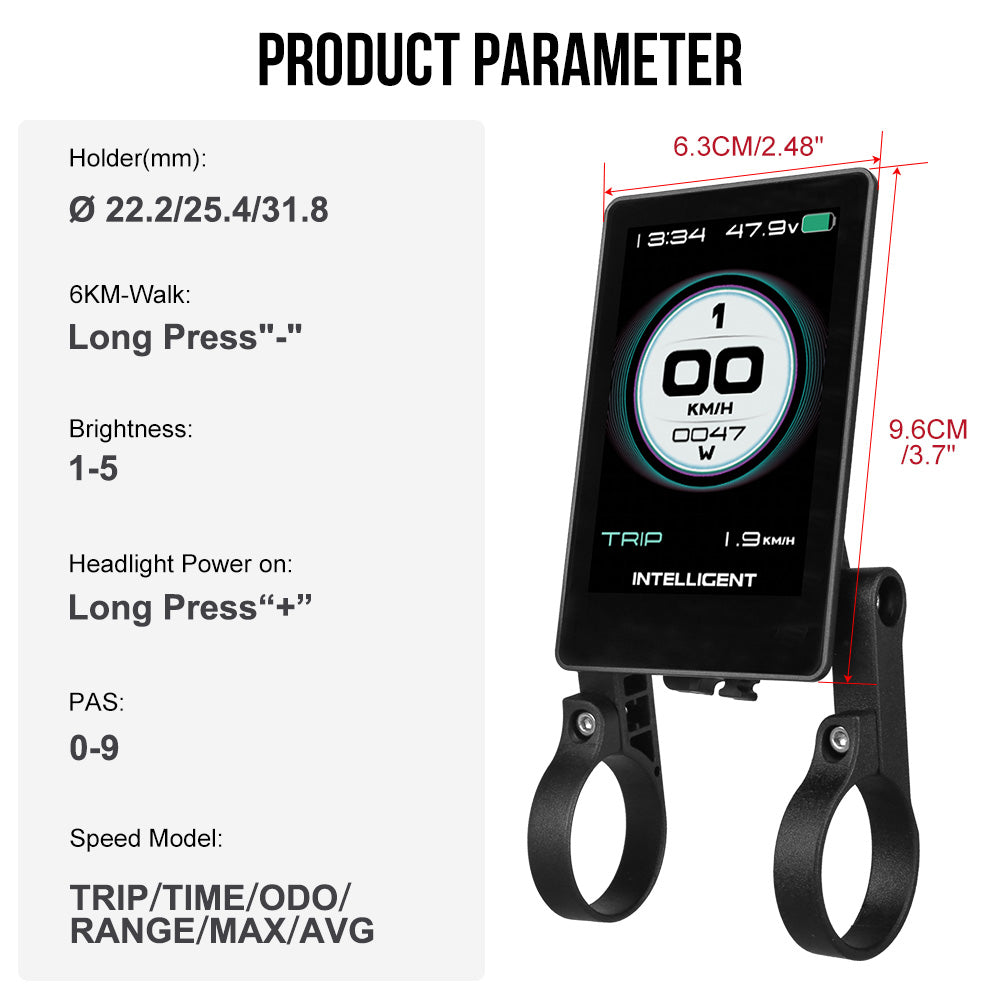

Electro City Bikes P860C LCD Display

Electro City Bikes P860C LCD Display-EN-MANUAL
