P850C eBike Motor Display for UART Protocol Bafang eBike Drive Kits

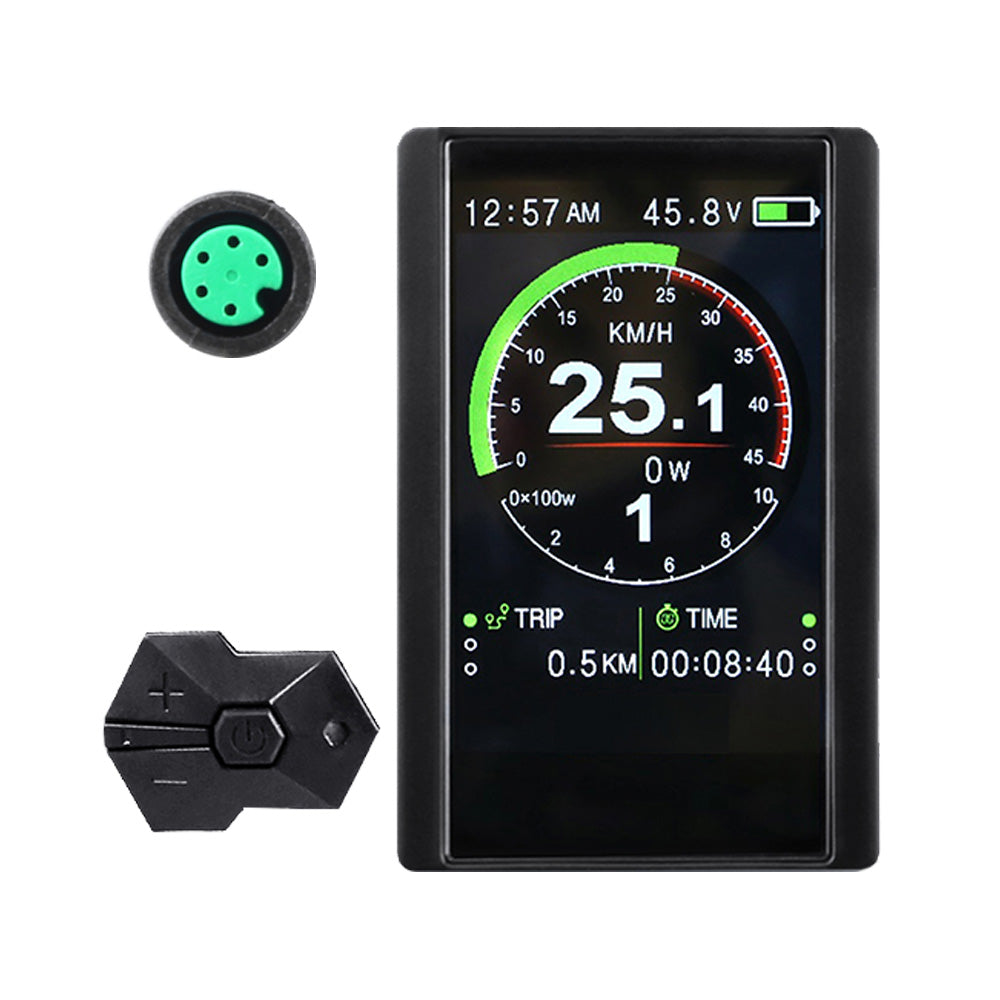

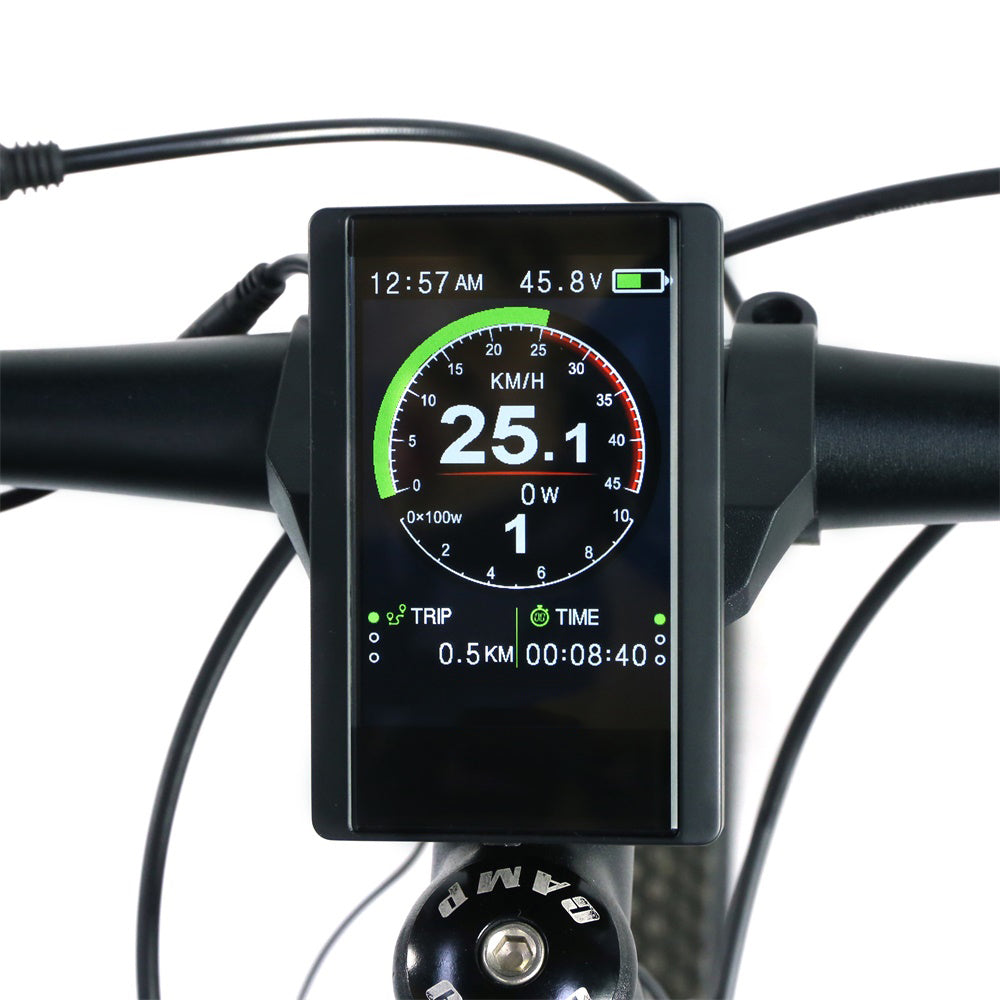

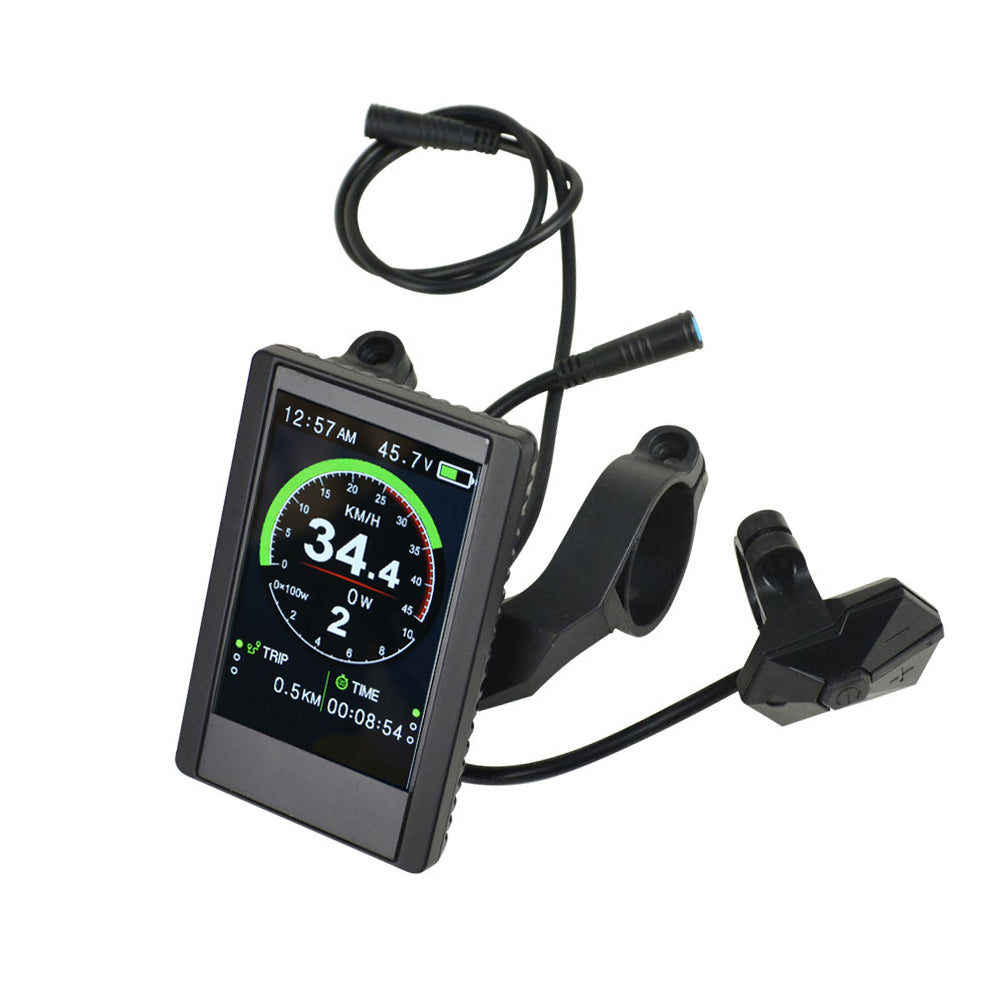

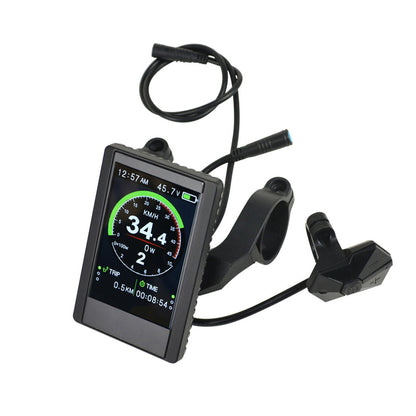

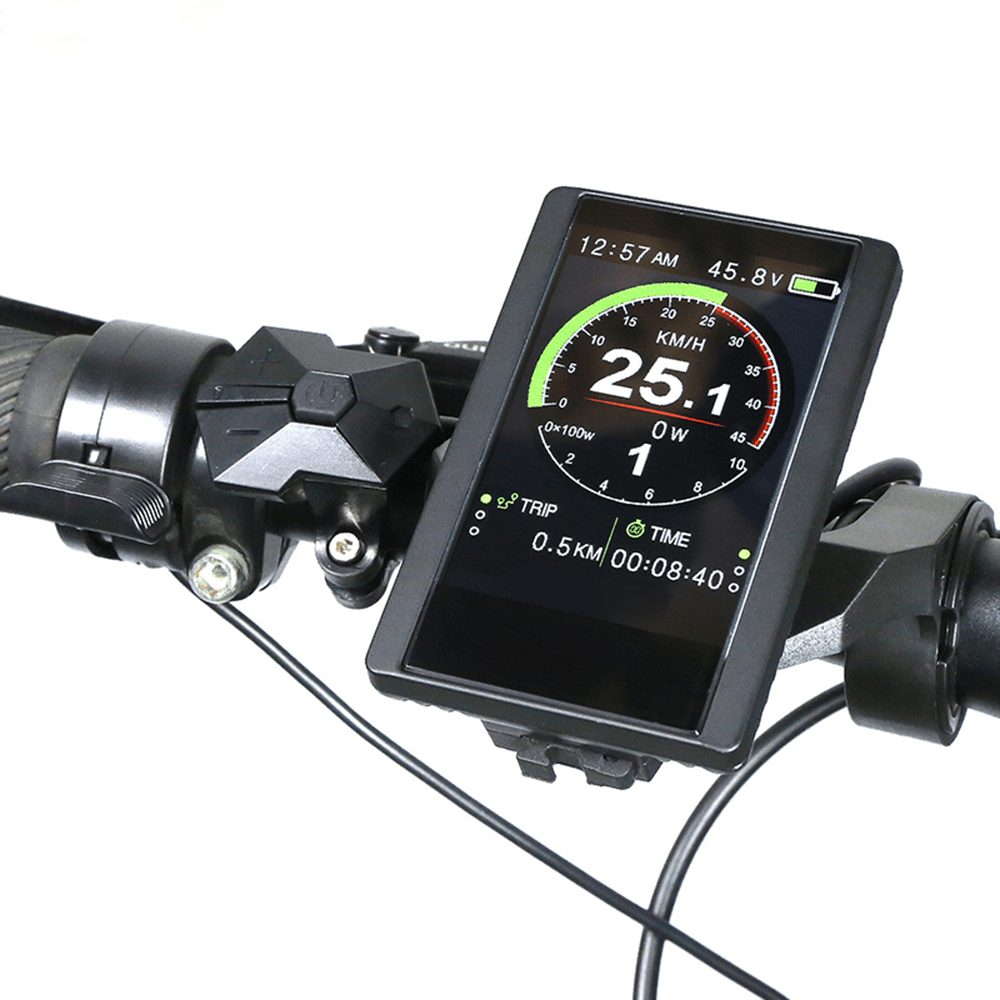

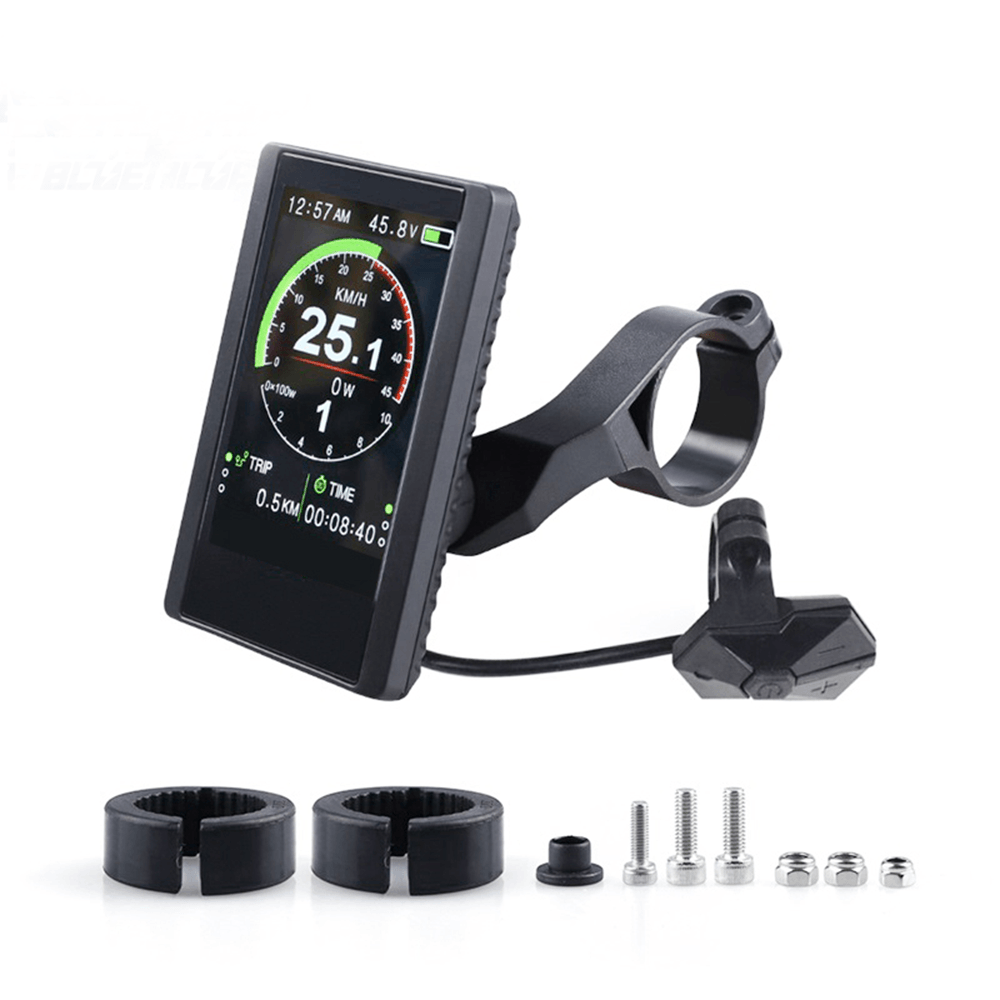

Electro City Bikes P850C eBike Motor Display

The price will be cheaper a lot if you buy this display together with the motor. Electro City Bikes P850C is available to work with all our Bafang motor includes BBS01B, BBS02B, BBSHD, and all front or rear Hubs.

Electro City Bikes 850C is an upgrade version of 850C, the new interface makes the whole dashboard look more professional, no one can refuse to have a dashboard so professional. You can find every detail of the system on the display. Clock, Battery Status, Front Light Sensor, Brake Sensor, Speed Loop and Speed, Power Value, Power Indicator, Assist Level, Mileage, Time, etc.

Electro City Bikes offers two brands of display, Bafang displays and our own brand Electro City Bikes displays. We highly recommend our customers to consider our meters because our meters have the same performance as Bafang's but the price is much cheaper, it helps you complete the eBike conversion with lower budget.

Specification

• Model: Electro City Bikes P850C
• Screen: TFT LCD (Color)
• Screen Size: 3.2 inch
• Direction: Vertical
• Operating Temperature: -20 to 70°C
• Material: ABS

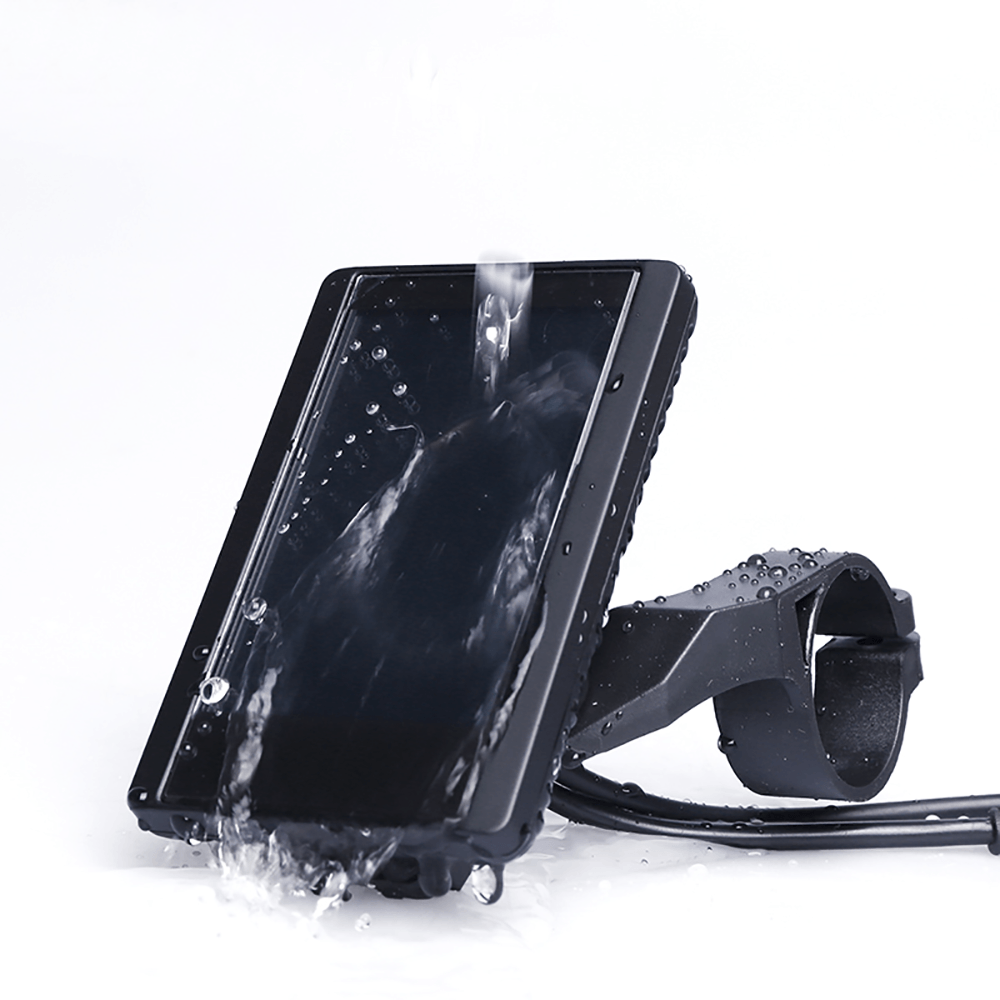

• IP Rate: IP65

Setting Mode

• *Protocol: UART
• Speed (Mile/Kilometer): AVG/MAX/Real-time
• Assist Level: 3/5/9
• Battery Indicator: Voltage/Percentage/OFF
• Power/Current Indicator: Real-time/Digital/Analog/Current
• Mileage Indicator: Odometer/Trip Distance/Clock/Riding Time
• Speed Limit(Mile/Kilometer): 10 to 60/99 m/h
• Light Sensor: Yes
• Brake Sensor: Yes
• Headlight: On/Off
• Walking Mode: Yes
• Software Upgrade: Support

User Manual

• Electro City Bikes P850C Display User Manual (EN)
• Electro City Bikes P850C Display User Manual (DE)
